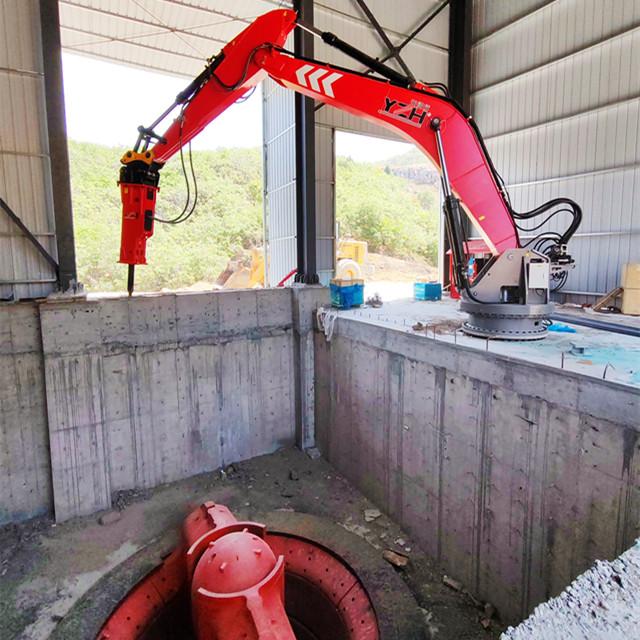

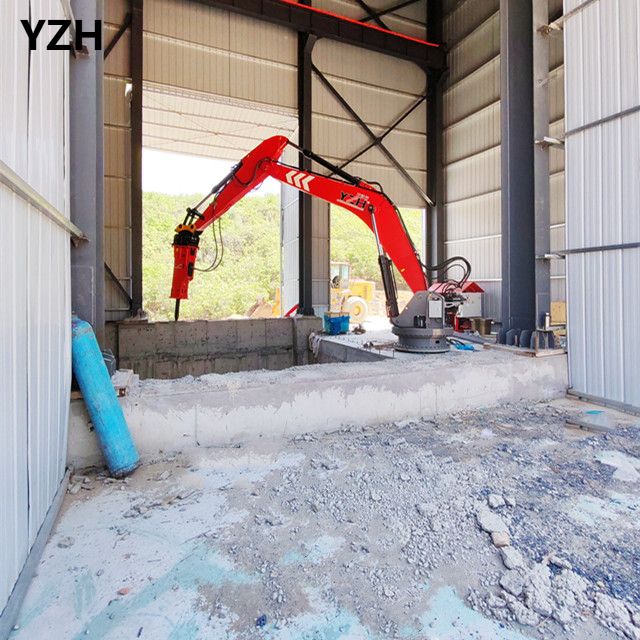

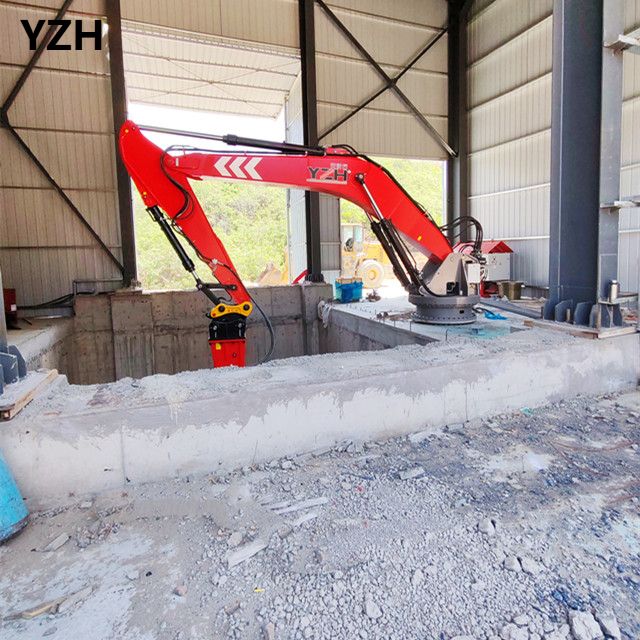

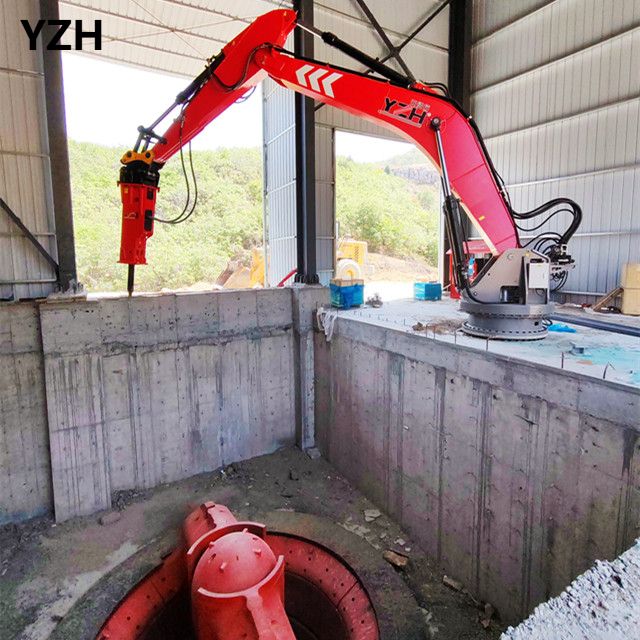

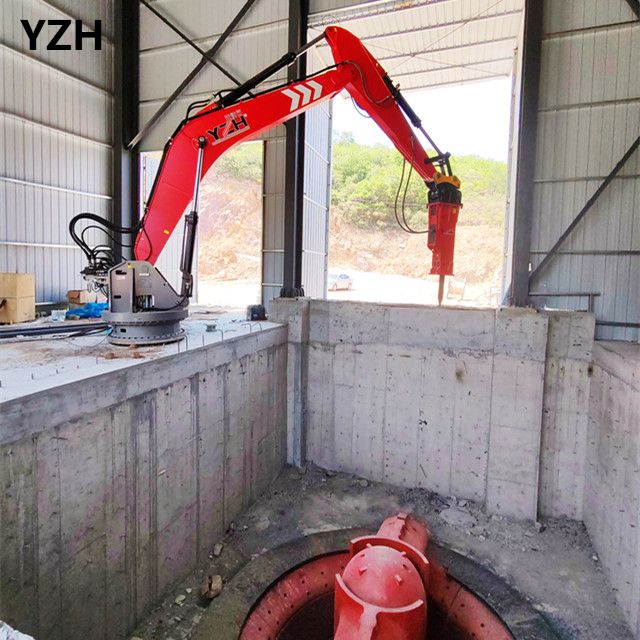

YZH Stationary Hydraulic Rock Breaker Manipulator
In industrial sectors such as mining, metallurgy, foundry, construction and building materials, oversized rocks jamming crusher inlets, poor material discharging from ore bins and blocked grizzlies have long been major bottlenecks disrupting continuous production lines. Traditional manual handling is not only low in efficiency, but also exposes workers to severe safety hazards including falls from height, flying rock injuries and high-temperature burns.
Independently developed by YZH, the B, BH and WH series Stationary Hydraulic Rock Breaker Manipulators replace manual labor with mechanized operation and upgrade control with intelligent technology, thoroughly tackling industry pain points. They have become benchmark products for secondary rock breaking in mining operations.
A Technology-focused Manufacturer Specializing in Mining Machinery
YZH is a high-tech manufacturing enterprise integrating independent R&D, technological innovation, production and global export. With years of dedication to mining machinery, our core product lineup covers a full range of mining equipment including Stationary Hydraulic Rock Breaker Manipulators and hydraulic breakers.
Boasting strong R&D capabilities and a comprehensive quality control system, the company has obtained multiple authoritative certifications such as the ISO Quality Management System Certification. Our products are sold well to numerous countries and regions worldwide.
Core Parameters: Customized Design for Diverse Working Conditions.
The YZH Stationary Hydraulic Rock Breaker Manipulator is constructed entirely of steel. Its overall weight ranges from 1,500 kg to 18,500 kg, and the drill rod diameter is between 75 mm and 175 mm. Custom configurations are available based on actual working conditions and rock hardness.
Powered by hydraulic drive, the unit is equipped with a standard 45 kW electric motor, while the supporting hydraulic power unit features a power range of 30 kW to 75 kW. Delivering powerful performance with controllable energy consumption, it suits production lines of all scales.
The Stationary Hydraulic Rock Breaker Manipulator supports dual control modes: cab operation and remote wireless control, with a remote control distance of 100 m to 500 m. Operators can complete all operations from safe areas. We provide a 12-month product warranty. With an annual production capacity of 10,000 units, we are able to fulfill orders promptly. Full-process customization is also offered to deliver tailor-made solutions according to customers’ on-site conditions.
Four Core Advantages: Redefining Standards for Secondary Rock Breaking
1.Simple Structure & Low Maintenance Costs
Adopting a modular design, the manipulator features a compact and rational structure for easy installation and low failure rates. Routine maintenance is straightforward and requires no sophisticated professional skills. It effectively cuts operational and long-term maintenance costs, and greatly improves equipment uptime.
2.Precision Manufacturing & Outstanding Durability

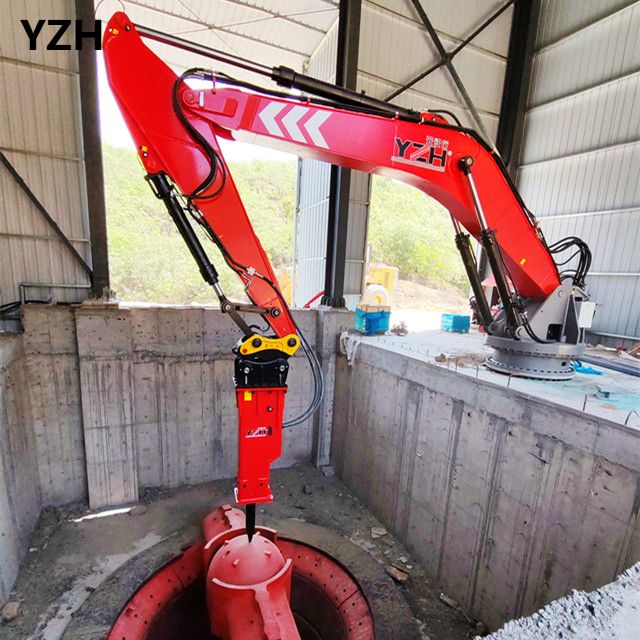

The arm beam is integrally fabricated from high-strength rectangular steel, fitted with large-diameter hydraulic cylinders and thickened hinge pins, ensuring high load capacity and excellent impact resistance. The slewing motor is equipped with buffer and braking functions for smooth and precise movement.
We enforce strict quality control over every detail. Adhering to the philosophy of "survive by quality and develop by reputation", our equipment delivers stable long-term performance under heavy-duty and harsh working conditions, featuring wear resistance, low noise and powerful breaking force.
3.Multi-functional Design for Broader Application
The manipulator boasts high versatility. By simply replacing the hydraulic breaker at the working end with a digging bucket or grapple, it can perform multiple tasks such as grabbing, excavating and raking. A single unit meets various on-site operational demands, maximizing equipment utilization and reducing customers’ capital investment.
4.Intelligent Flexible Control for Enhanced Operational Safety
Equipped with an advanced intelligent flexible control system, the manipulator achieves high-precision positioning. Integrated with video monitoring and remote control systems, it allows operators to monitor real-time working conditions and conduct accurate manipulation without entering hazardous areas. The high-protection controller with multi-parameter integrated control further boosts equipment safety and operational stability.
Full-scenario Application: Resolving Key Industry Pain Points

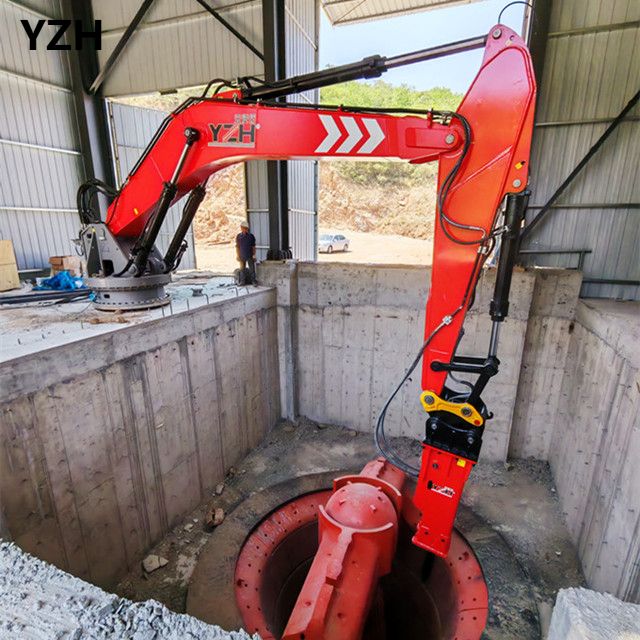

Widely used in chemical, construction, mining, mineral processing, metallurgy and foundry industries, our stationary rock breaking manipulators effectively solve common problems including material jams at jaw crusher inlets, ore bin blockages, blocked feed openings and grizzly chokes, as well as clogging at gyratory crusher discharge ports. They are also applicable for material crushing in cement plants and high-temperature breaking of hot slag.
For secondary breaking of large rock masses, the equipment enables blasting-free operation, eliminating safety risks and environmental impacts caused by blasting. It significantly improves material handling and production efficiency, and fundamentally removes safety hazards associated with manual jam clearing in mines, safeguarding safe production for mining enterprises.
