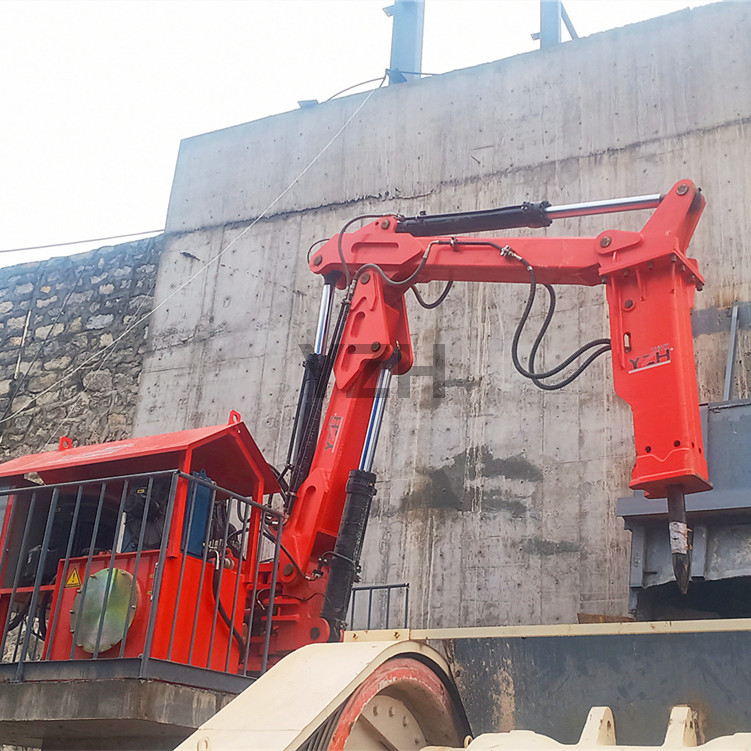

YZH Rock Breaker Systems
YZH offer a wide range of rock breaker systems suitable for raking and breaking in both stationary and portable crushing plants. YZH stationary rock breaker systems were developed to address production and safety concerns associated with the handling of oversize, material flow on grizzlies (ore passes), rockboxes and crushers. Often workers were exposed to dangerous situations such as having to dislodge jammed material from crusher jaws or slinging oversize material out of rockboxes.
Installing a stationary Rock breaker systems allows for economical, safe and efficient breaking of oversize material.
Jinan YZH Machinery Equipment Company now offers the world’s broadest selection of Stationary Rock breaker Systems to effectively meet the needs of a variety of applications in the world’s crushing, mining and metallurgical industries.
| Unit | YZH-D300 |
Weight | Kg | 1450 |
Maximum Reach | m | 4.6 |
Nominal Horizontal Reach (H) | m | 2.9 |
Nominal Vertical Reach (V) | m | 2.6 |
Swing° | ° | 360 |
Base Diameter | m | 0.8 |
Recommended Hydraulic Hammer (Chisel Size) | mm | 85, 100 |
Recommended Power Packs | set | HA 37 |
