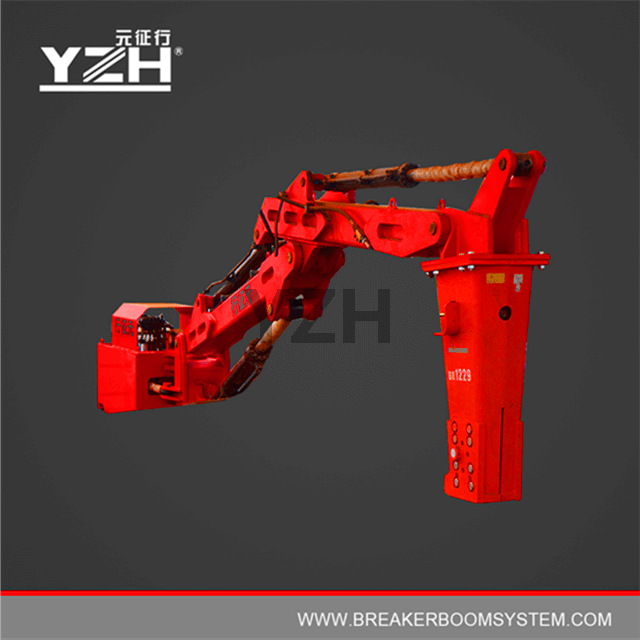

170 Degree Rotating Stationary Type Hydraulic Rockbreaker Boom System
S & M Series | Unit | YZH -S440 | YZH- S550 | YZH- S630 | YZH- M440 | YZH- M550 | YZH- M630 |
Weight | kg | 3750 | 4250 | 4400 | 5500 | 6400 | 6700 |
Maximum Reach | m | 6.7 | 7.8 | 8.6 | 7.2 | 8.2 | 8.9 |
| Nominal Horizontal Reach (H) | m | 4.8 | 5.9 | 6.5 | 4.8 | 5.9 | 6.7 |
| Nominal Vertical Reach (V) | m | 3.6 | 4.9 | 5.8 | 3.4 | 5.0 | 5.8 |
| Swing° | ° | 170 | 170 | 170 | 170 | 170 | 170 |
| Base Diameter | m | 1.51 | 1.51 | 1.51 | 1.68 | 1.68 | 1.68 |
Recommended Hammer (Chisel Size ) | mm | 125,135 | 125,135 | 125,135 | 135,140 | 135,140 | 135,140 |
Recommend Power Packs | set | H37, H45 | H37, H45 | H37, H45 | H37, H45 | H37, H45 | H37, H45 |

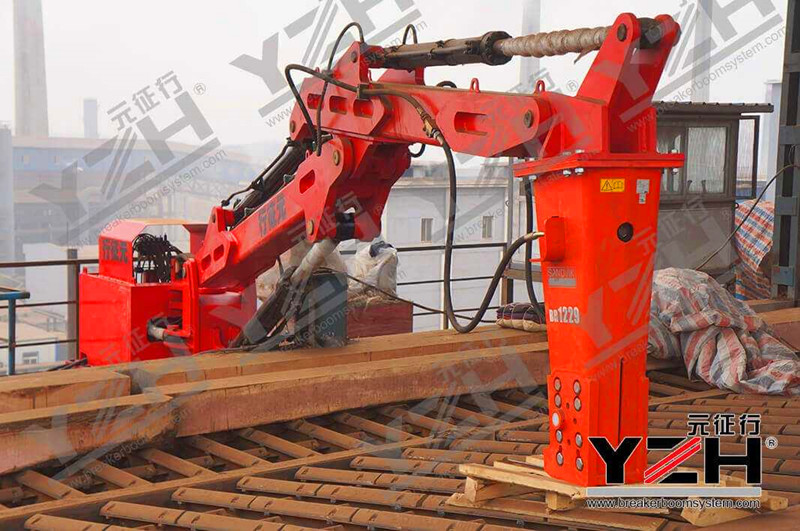

This is a stationary mounted boom system with a slewing articulated boom used to position a hydraulic hammer to breake oversize boulders on a feeder, crusher or grizzly. The boom system is based on pedestal fixed either to concrete or steel foundation

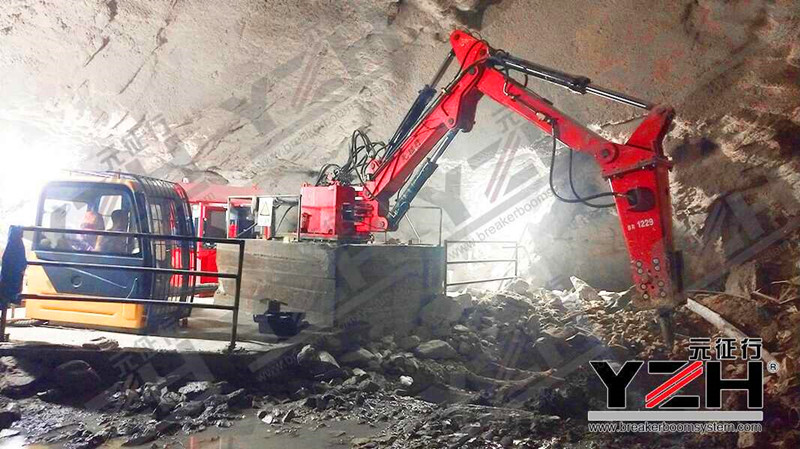

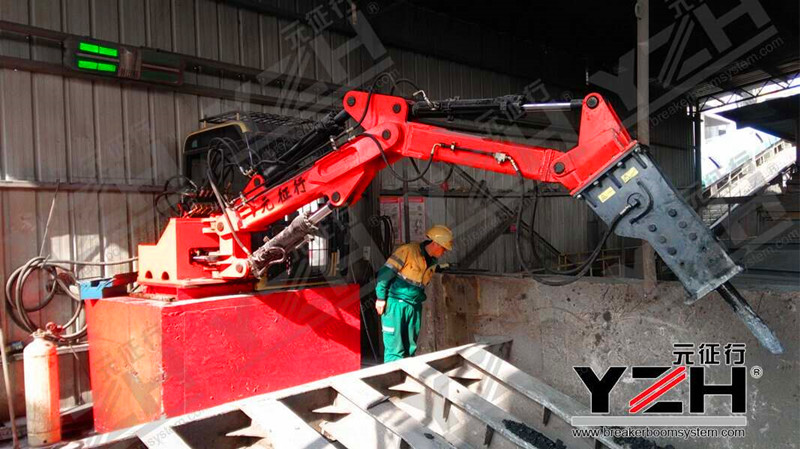

On-site working video
