Stationary boom system
Efficient material crushing equipment is key to ensuring smooth production processes in industries such as mining, quarrying, and metallurgy.The stationary boom system used in Mine, as a high-power crushing and dismantling equipment integrating machinery, electricity, and fluid, has always held a leading position in the industry due to its excellent performance and wide range of applications.

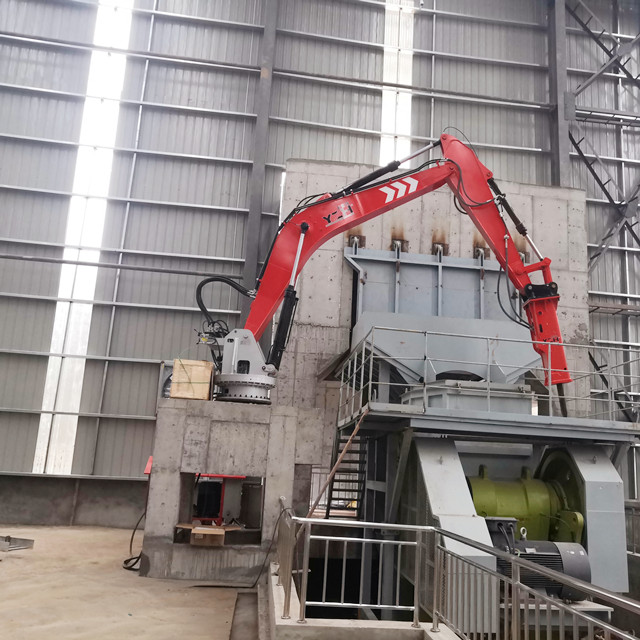

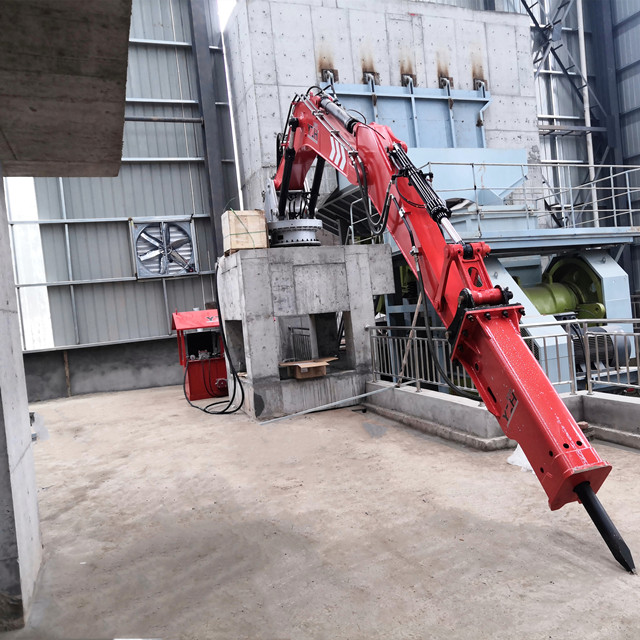

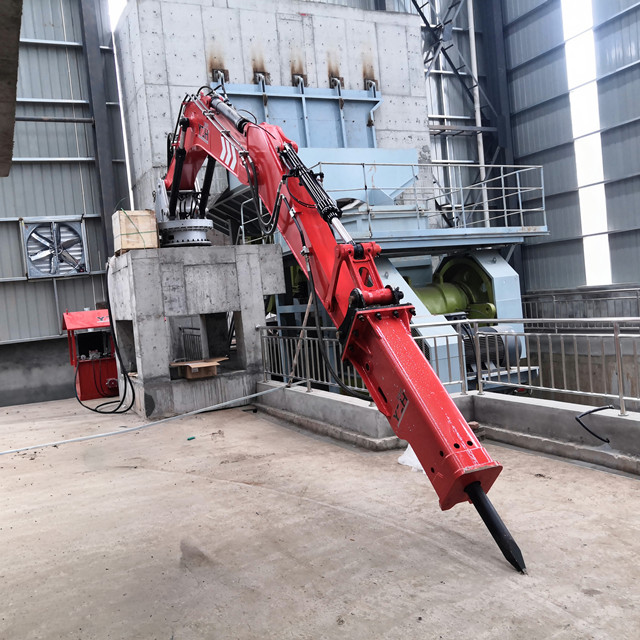

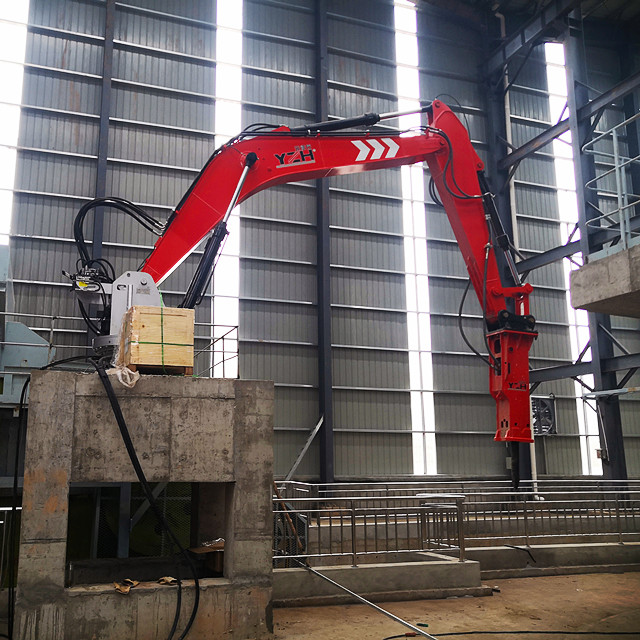

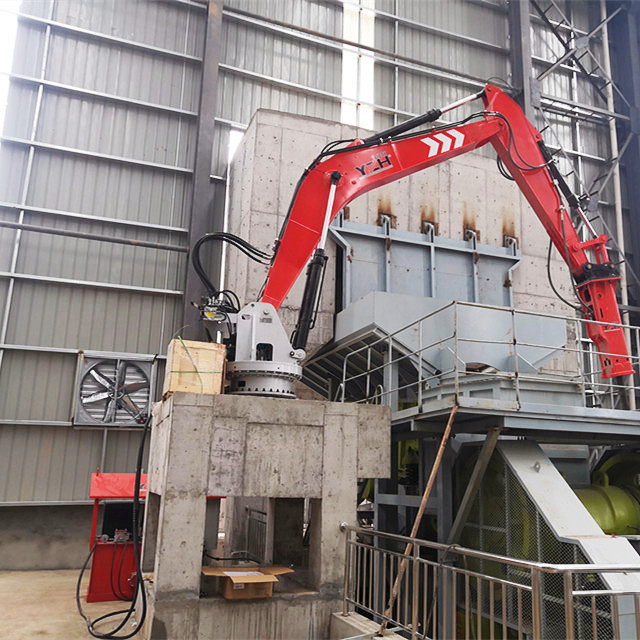

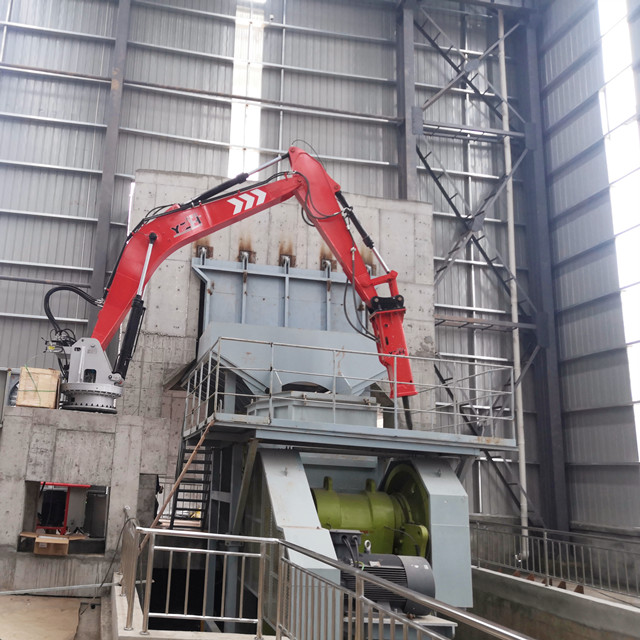

From the perspective of brand and manufacturer, the stationary boom systemof YZH is its flagship product, and YZH provides solid guarantees for product quality and performance with its professional research and manufacturing capabilities. In terms of usage and application scope, this stationary boom system is mainly used at the inlet or sieve of crushers in various mines and quarries, for secondary crushing of large materials. It can also demonstrate its skills in smelters, such as shelling steel ladles and metallurgical furnaces, and widely serve industries such as ore, metallurgy, and casting.
In terms of control and driving methods, the YZH stationary boom system provides two options: cab control and remote control, which not only meets the needs of on-site operators for close range fine operation, but also adapts to some remote operation requirements in dangerous or complex environments, greatly improving the flexibility and safety of operation. It adopts an electro-hydraulic drive method, which can output powerful power to ensure efficient crushing operations.
From the technical parameters, the horizontal extension range of the stationary boom system is between 4880-20400mm, which can flexibly cover work areas at different distances; The diameter of the hammer drill rod is 75-175mm, which can be selected according to different crushing needs; The swing angle reaches 170 ° or 360 °, allowing the stationary boom system
to operate within a wider range of angles and increasing the applicability of the equipment; The weight ranges from 1500-18500mm, reflecting its sturdy and durable characteristics.

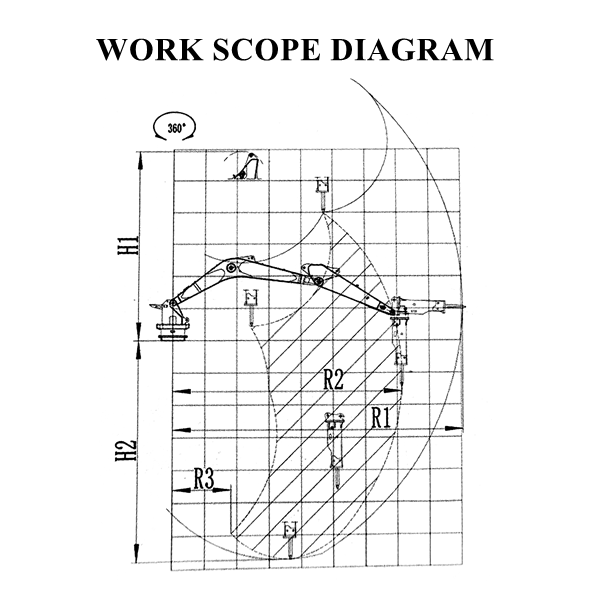

Parameters of WHA810 Stationary boom system
| Model No | Unit | WHB810 |
| Boom weight (without hammer) | kg | 3420 |
| Max.Horizontal working radius(R1) | mm | 10700 |
| Max.Vertical working radius(R2) | mm | 8150 |
| Min.Vertical working radius(R3) | mm | 2620 |
| Max.Height (H1) | mm | 6230 |
| Max.working depth (H2) | mm | 7660 |
| Rotation | ° | 360 |
| Pedestal Size | mm | 1030 |
| Power of Hydraulic Power Unit | kw | 37/45/55 |
The advantages of this stationary boom system are very significant. The direct sales model from manufacturers allows products to be delivered directly from the factory to the hands of users, reducing intermediate links and ensuring that product quality is checked layer by layer to ensure that users receive high-quality equipment.
In terms of product quality, all components are made of high-strength steel and manufactured using specialized machining and welding techniques in accordance with ISO 9001 and EU CE standards, ensuring the reliability and durability of the equipment.
In terms of planning and cost control, the experienced team at YZH will provide on-site specific assessments and recommendations to assist users in making good plans, reducing costs, and improving the safety and reliability of equipment use.The after-sales service is also thoughtful and considerate. Experienced service engineers will provide one-stop services for equipment installation, debugging, operation training, maintenance, and parts supply, solving users' worries.
The stationary boom system used in YZH has become a star product in industries such as mining and construction due to its excellent performance, wide application, reliable quality, and comprehensive service, providing strong support for crushing operations in industrial production.
