Large crushing capacity, smooth operation, low noise, reliable performance, convenient operation, energy-saving and environmental protection, capable of continuous construction operations in any complex working condition on-site.
YZH's Static type boom system is independently developed based on the actual working conditions of the crushing site, suitable for their respective operation sites. Most importantly, it adopts the RAMMER brand under the Sandvik brand, with internationally advanced technology and processes, and is a well-known guarantee. Hydraulic hammers are also made of imported high-quality materials and controlled by hydraulic and pneumatic systems. Large crushing capacity, smooth operation, low noise, reliable performance, convenient operation, energy-saving and environmental protection, capable of continuous construction operations in any complex working condition on-site.

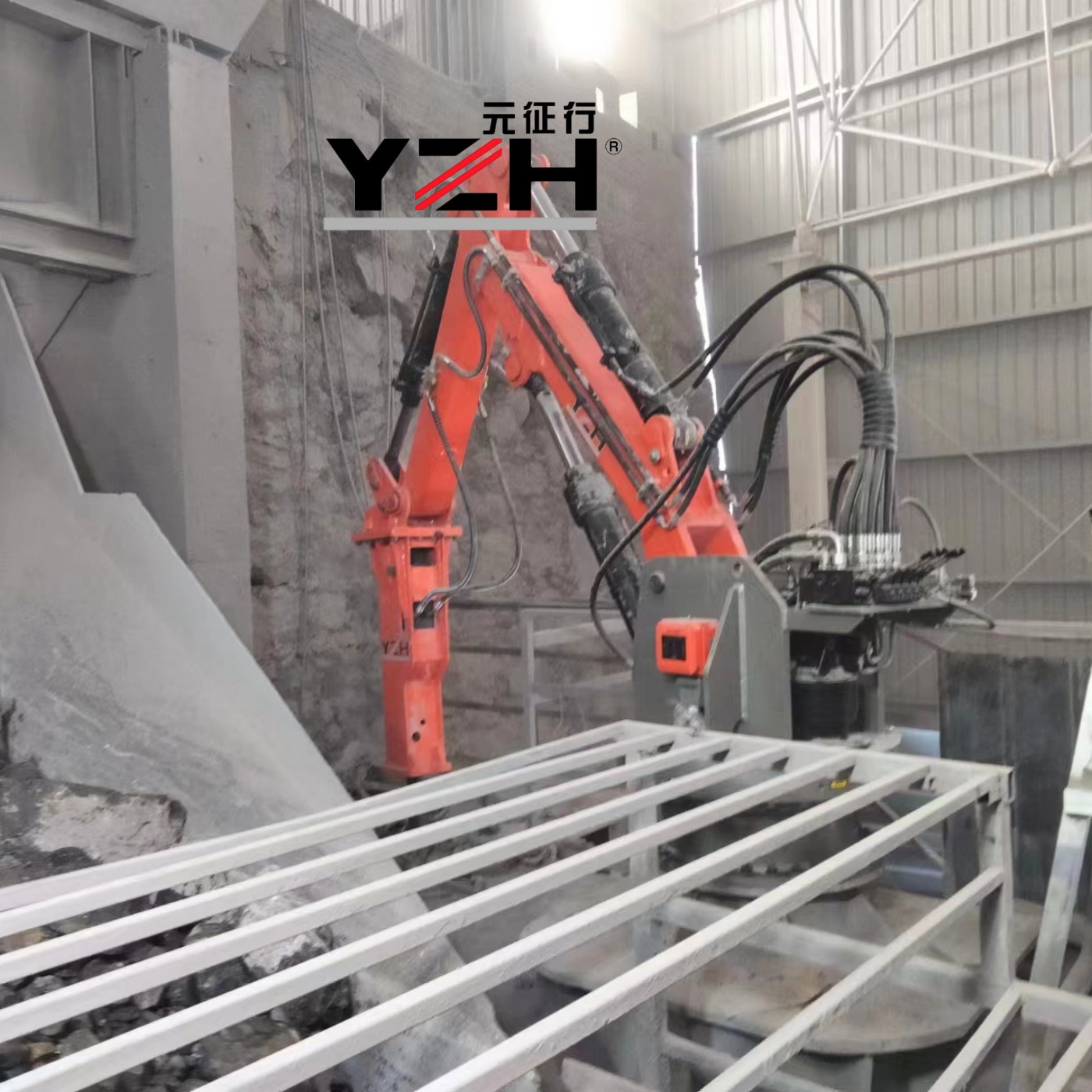

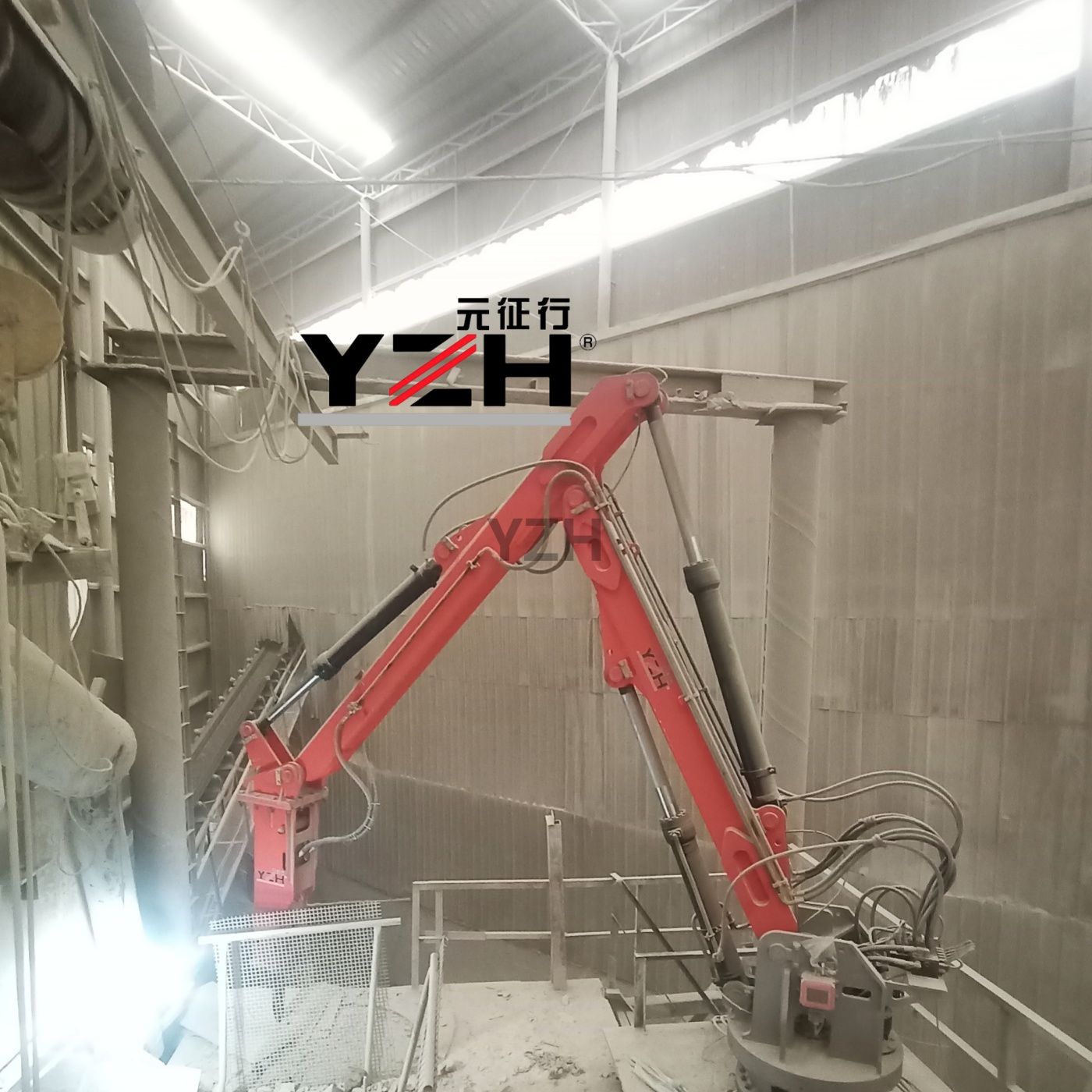

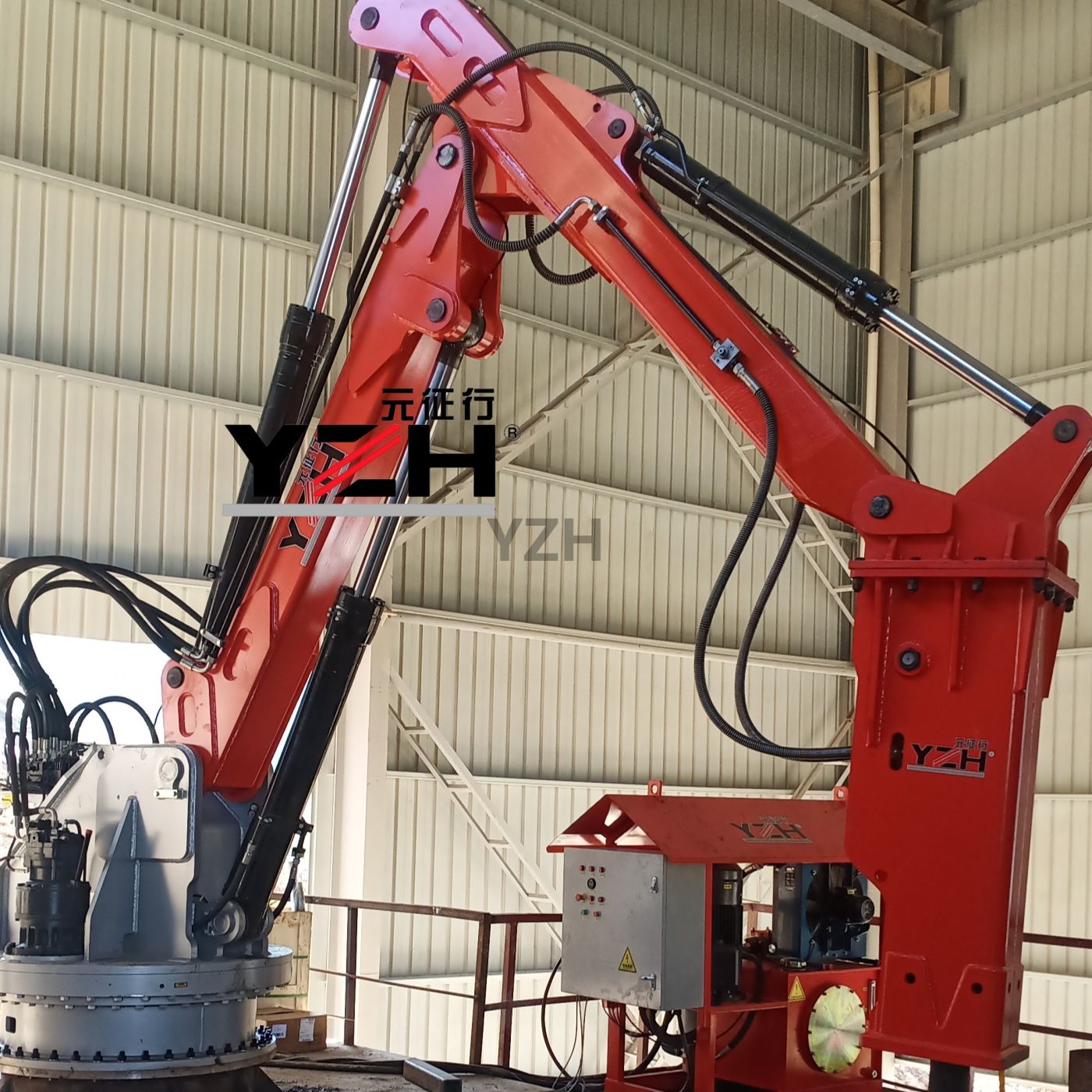

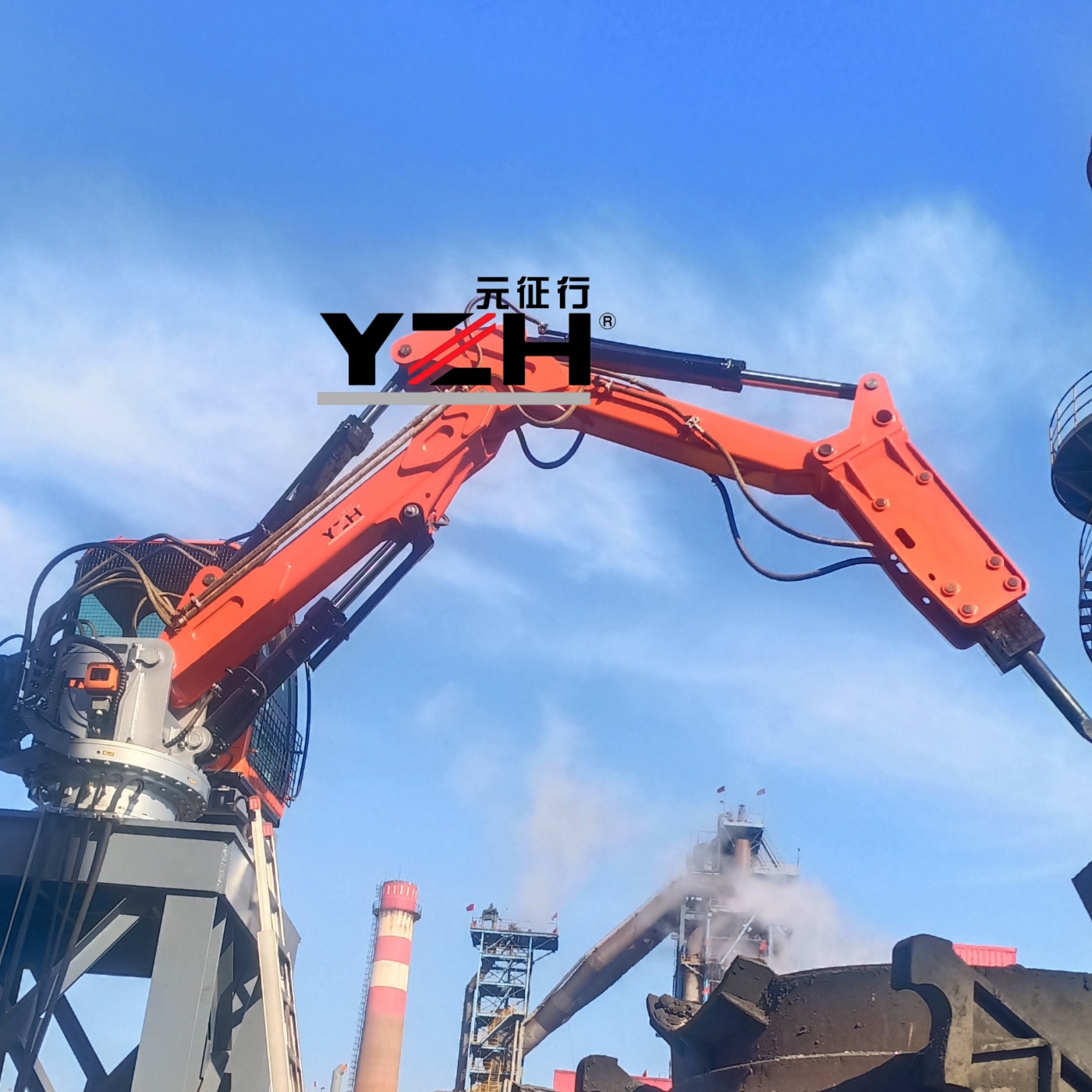

The small static type boom system is a lightweight multi-purpose crushing equipment commonly used in quarries, next to the primary crusher, to remove all blockages in the stationary crusher and mobile crusher.The mediumstatic type boom system is similar to the small series, but the medium Static type boom system is mainly designed for open pit and underground mine applications.
Model No
BHA400
Boom weight
kg
2014
Max Horizontal Working radius
mm
5850
Max Vertical working radius
mm
4240
Min Vertical working radius
mm
1910
Rotation
°
360
Static Type Boom System China
YZH's Static type boom system is independently developed based on the actual working conditions of the crushing site, suitable for their respective operation sites. Most importantly, it adopts the RAMMER brand under the Sandvik brand, with internationally advanced technology and processes, and is a well-known guarantee. Hydraulic hammers are also made of imported high-quality materials and controlled by hydraulic and pneumatic systems. Large crushing capacity, smooth operation, low noise, reliable performance, convenient operation, energy-saving and environmental protection, capable of continuous construction operations in any complex working condition on-site.
The small static type boom system is a lightweight multi-purpose crushing equipment commonly used in quarries, next to the primary crusher, to remove all blockages in the stationary crusher and mobile crusher.The mediumstatic type boom system is similar to the small series, but the medium Static type boom system is mainly designed for open pit and underground mine applications.
