The china fixed boom mainly consists of four parts: hydraulic crushing hammer, large and small arm operating system, hydraulic oil station, and controller.

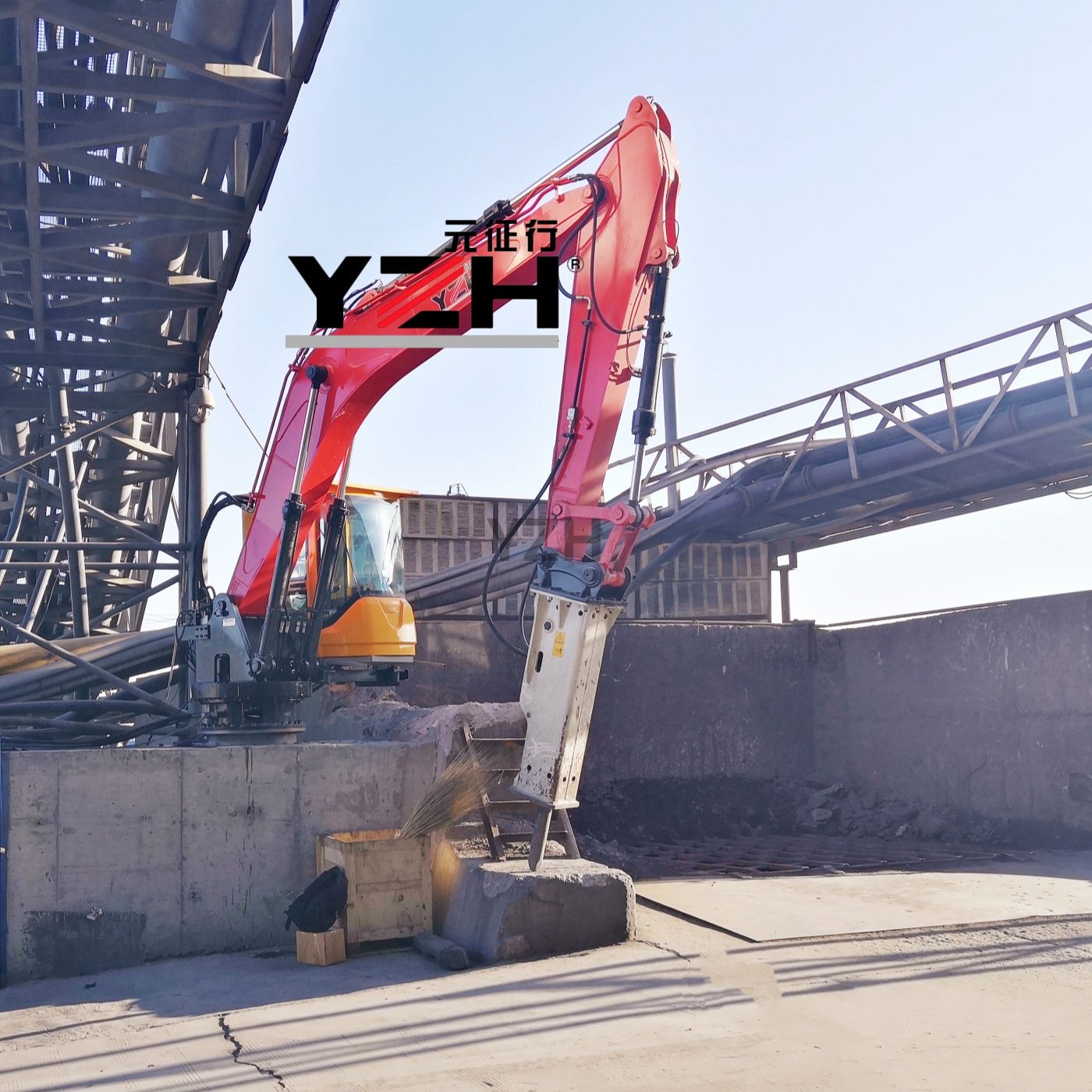

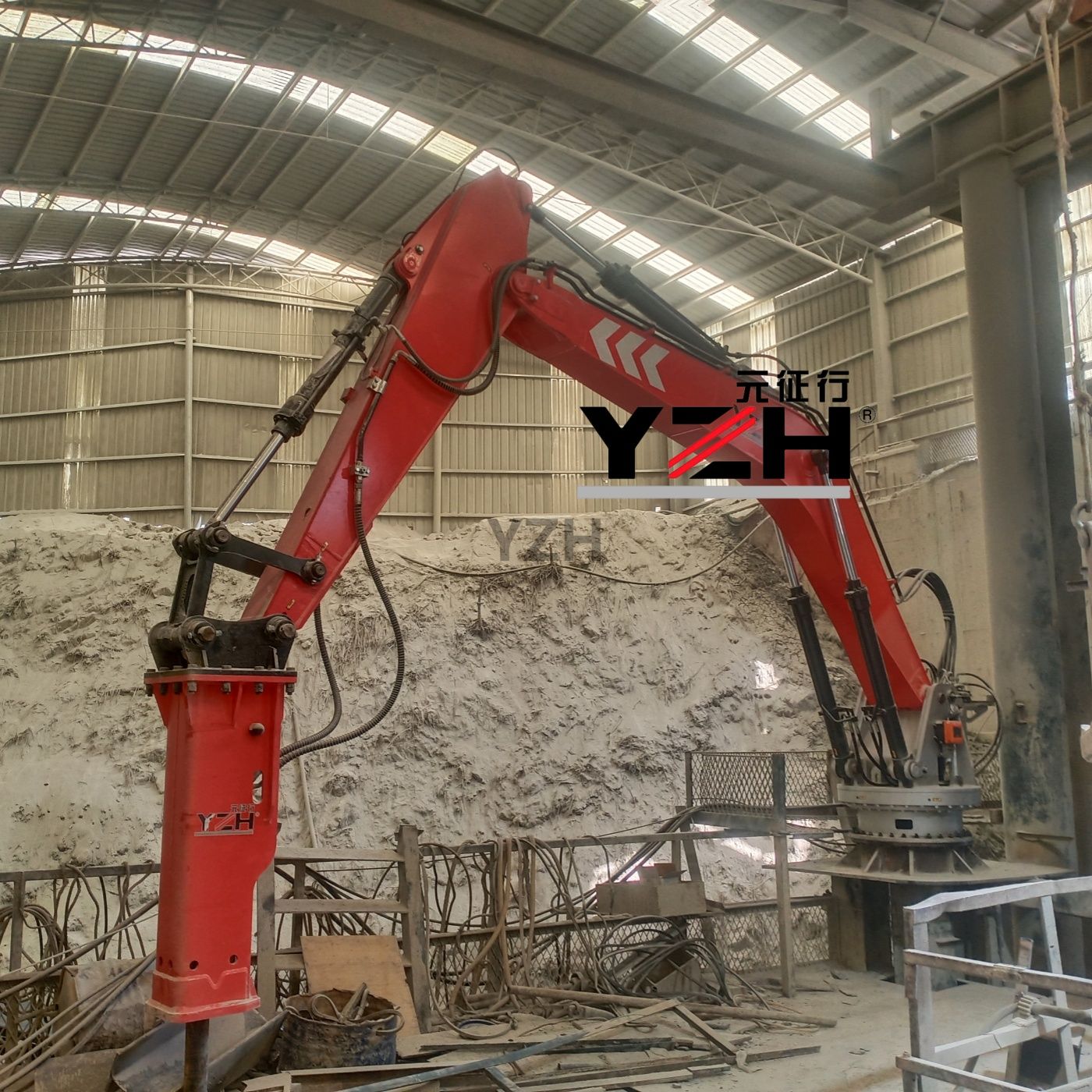

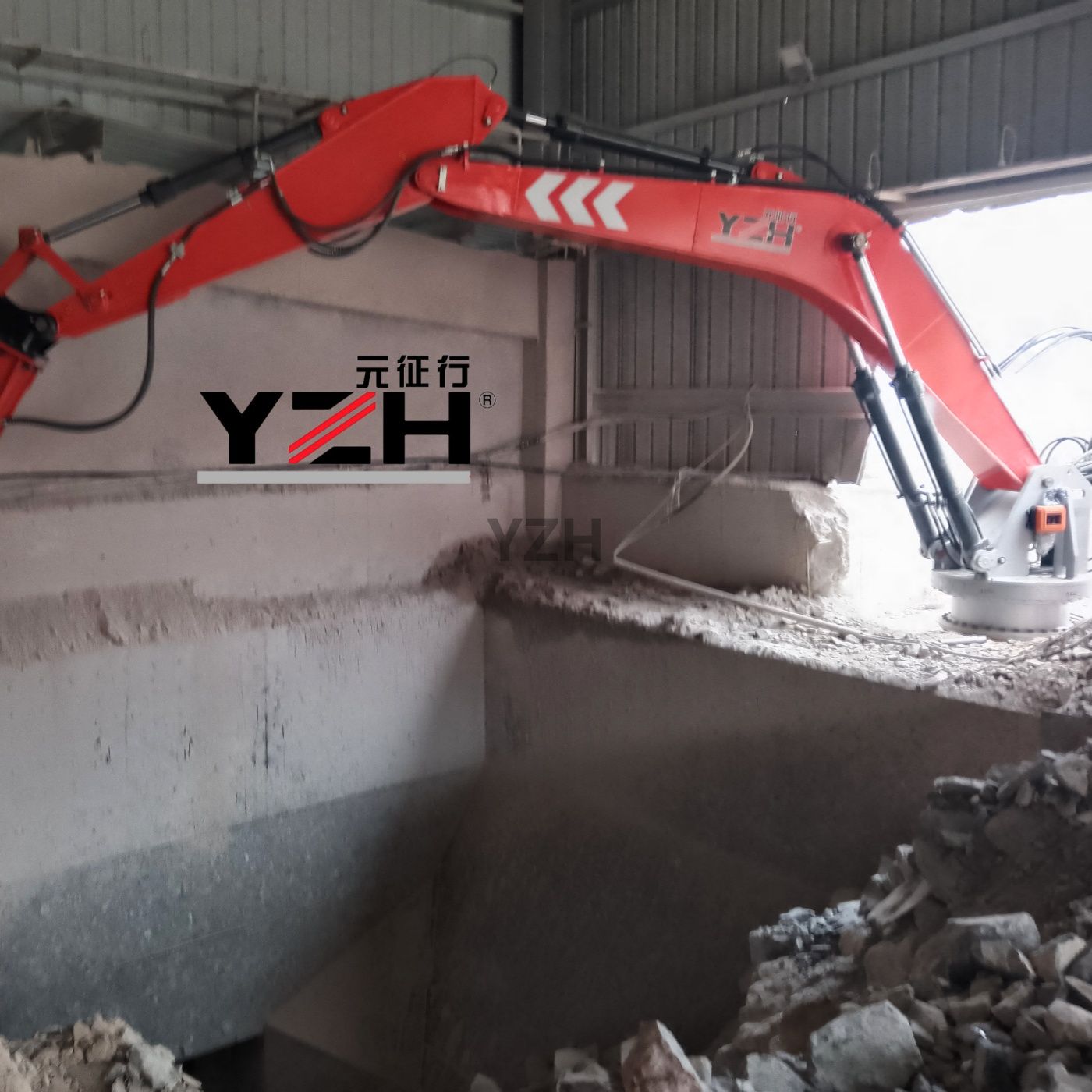

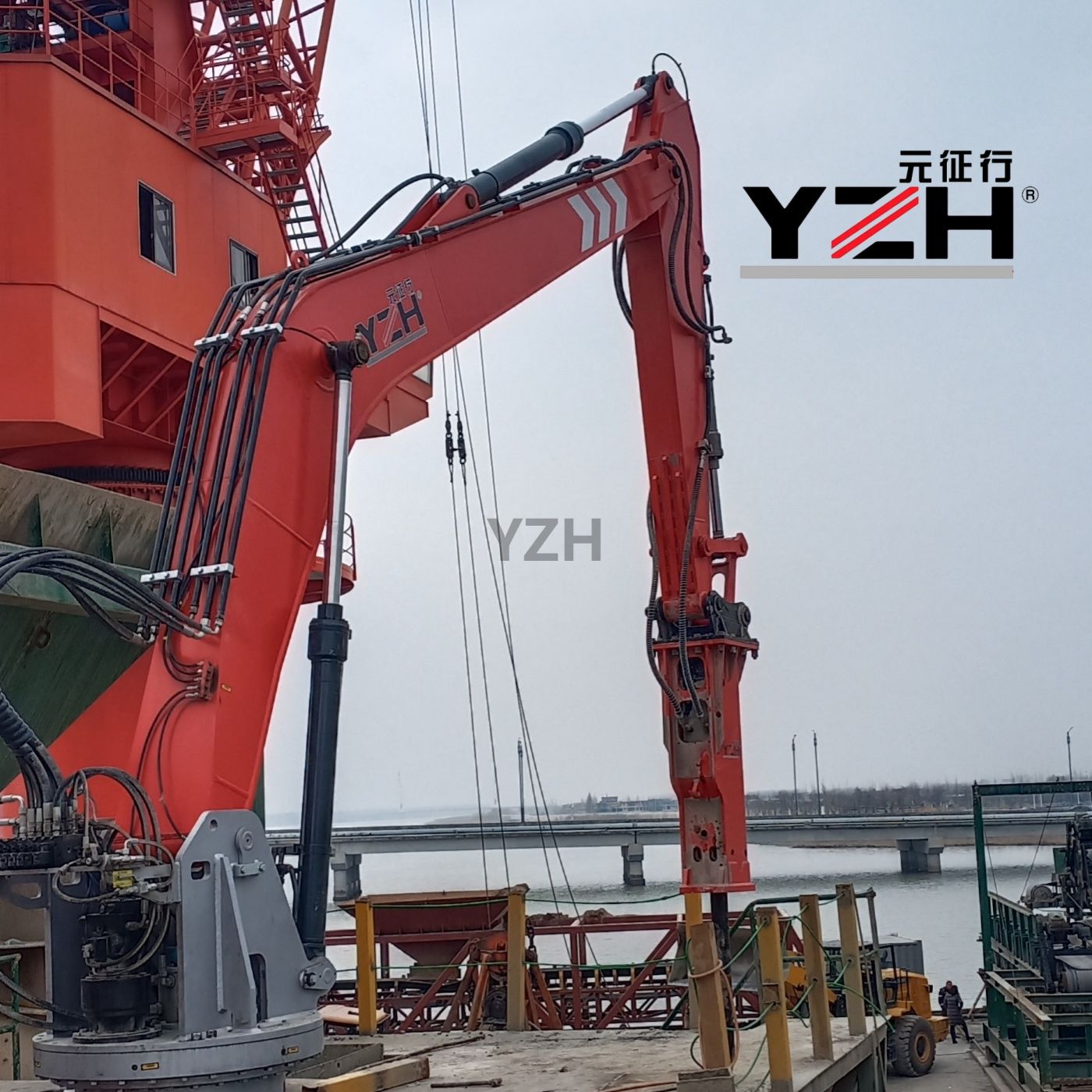

The china fixed boom independently manufactured and developed by Shandong YZH is mainly used in mobile crushing stations for open-pit quarries, underground mine grid feeding ports, sand and gravel aggregate yards, as well as feeding hatches for crushers, casting yards, dock loading and unloading yards, etc. The china fixed boom mainly consists of four parts: hydraulic crushing hammer, large and small arm operating system, hydraulic oil station, and controller.

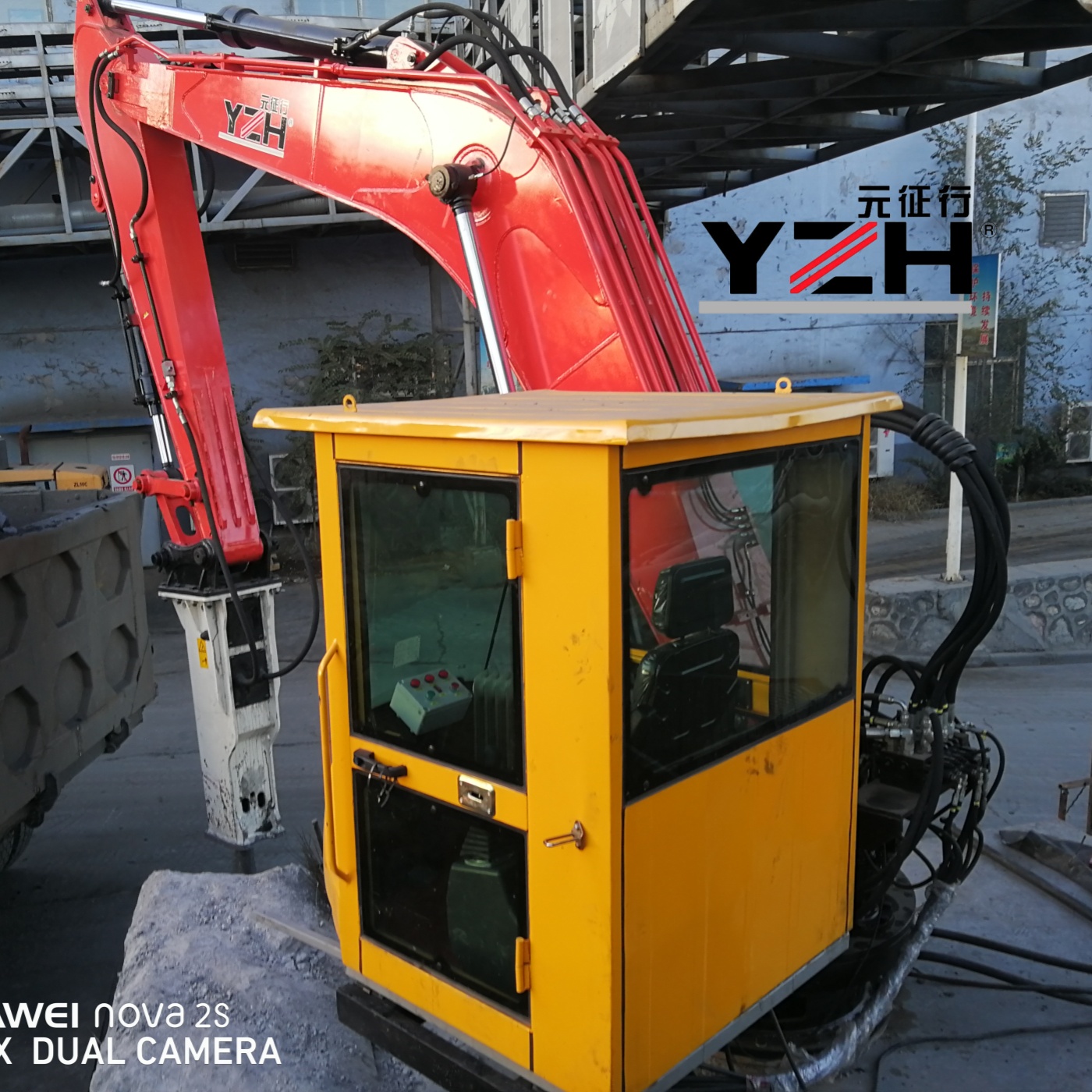

Hydraulic fracturing hammer is in direct contact with stones. To ensure the strength and hardness of the fracturing hammer and drill rod, it is necessary to strike hard stones into appropriate sizes or penetrate walls. The large arm and small arm working system is a bridge connecting the base and the crushing hammer, and it is also an arm for carrying out work. Collaboration between the upper and lower arm systems not only expands the scope of work, but also makes the entire workflow more flexible. The hydraulic oil station is the power source of the entire system. The hydraulic station uses both electric and hydraulic power, which not only ensures endurance but also has certain environmental protection functions. The last part is the control system, which can be called a remote control. Our china fixed boom is configured with three operating systems:2in1 radio remote control、cabin control system、5G optical fiber teleoperation system.
Model No
WHC960
Boom weight(without hammer)
kg
8481
Max Horizontal working radius
mm
11920
Max Vertical working radius
mm
9600
Min Vertical working radius
mm
3360
Rotation
°
360
China Fixed Boom
The china fixed boom independently manufactured and developed by Shandong YZH is mainly used in mobile crushing stations for open-pit quarries, underground mine grid feeding ports, sand and gravel aggregate yards, as well as feeding hatches for crushers, casting yards, dock loading and unloading yards, etc. The china fixed boom mainly consists of four parts: hydraulic crushing hammer, large and small arm operating system, hydraulic oil station, and controller.
Hydraulic fracturing hammer is in direct contact with stones. To ensure the strength and hardness of the fracturing hammer and drill rod, it is necessary to strike hard stones into appropriate sizes or penetrate walls. The large arm and small arm working system is a bridge connecting the base and the crushing hammer, and it is also an arm for carrying out work. Collaboration between the upper and lower arm systems not only expands the scope of work, but also makes the entire workflow more flexible. The hydraulic oil station is the power source of the entire system. The hydraulic station uses both electric and hydraulic power, which not only ensures endurance but also has certain environmental protection functions. The last part is the control system, which can be called a remote control. Our china fixed boom is configured with three operating systems:2in1 radio remote control、cabin control system、5G optical fiber teleoperation system.
