Rockbreaker Boom System
In the busy scene of sand and gravel production, the efficient operation of core equipment such as jaw crusher and gyratory crusher is the key to guarantee the production capacity. However, the sudden blockage of large gravel at the inlet often brings the whole production line to a standstill, which not only affects the efficiency, but also increases the loss of equipment. In order to solve this problem, the YZH WH series of large-scale engineering manipulators were born, and the WHEN1410 stationary pedestal rockbreaker boom system is one of the best. This equipment is specially designed to solve the problem of clogging, and it is suitable for all kinds of jaw crusher models. With its flexible arm and strong performance, stationary pedestal rockbreaker boom system has become an important force in unclogging the inlet and ensuring the continuous operation of the production line.
Features of WHEN1410 rockbreaker boom system

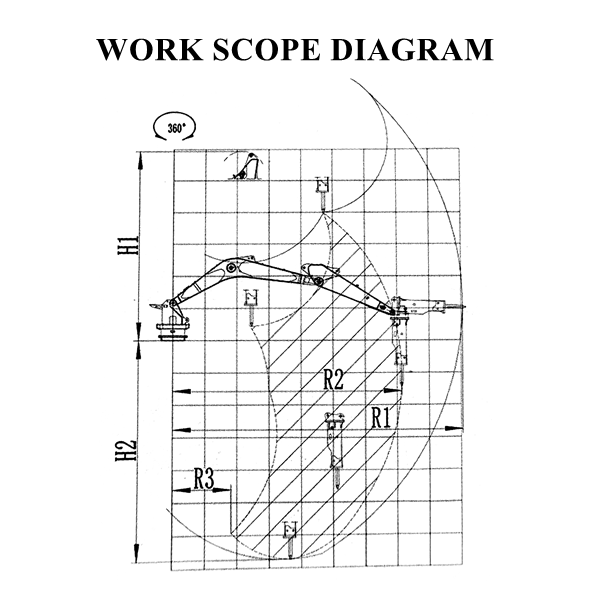

Long working radius: The WHEN1410 rockbreaker boom system has a maximum horizontal working radius of 16120mm, which makes it easy to reach large pieces of gravel in different locations without moving the machine frequently when dealing with clogged inlets, greatly improving the coverage and flexibility of the work.
Stable overall weight: Its overall weight is similar to that of a 50-ton excavator, which provides excellent stability for the machine in high-intensity operations. When gripping and crushing large pieces of hard gravel, stationary pedestal rockbreaker boom system can effectively resist the reaction force and avoid shaking of the machine body, thus guaranteeing the accuracy and safety of the operation.
Powerful Cylinder Configuration: The arm cylinder adopts D170/115-2 specification, the boom cylinder is D190/130-1, and the hammer cylinder is D170/115-1. This combination of cylinders provides sufficient power for the various movements of the stationary pedestal rockbreaker boom system, so that no matter it is the lifting and lowering of the arm, the telescoping of the boom, or the impact of the hammer, the force is kept strong, and it is easy to break the hard and big gravels.
Super Powerful Slewing Motors: Equipped with 2 sets of 30-ton slewing motors, it brings extraordinary power output. This makes the rotary movement of the stationary pedestal rockbreaker boom system fast and powerful, and can quickly adjust the working angle to respond to the blockage situation at different positions of the feeding port in a timely manner, which greatly improves the working efficiency and allows the blockage problem to be solved in the shortest possible time.
Advantages of WHEN1410 rockbreaker boom system
Rockbreaker boom system fully demonstrates the pursuit of excellent performance in the design and selection of core components. Its reinforced pivot point is processed by special technology, which can effectively disperse the huge impact force generated during operation. With the precise connection of oversized pins, it not only ensures the high precision of coordination among components, but also significantly improves the strength of the overall structure, so that the stationary pedestal rockbreaker boom system still maintains stable operation during high-intensity operation.
To further enhance the work adaptability, the stationary pedestal rockbreaker boom system is equipped with a special hydraulic cylinder with a buffer unit. This design can effectively absorb and alleviate pressure fluctuations during the operation of the hydraulic system, reduce the wear and tear of components due to impact, and greatly extend the service life of the stationary pedestal rockbreaker boom system. At the same time, the extra large diameter piston and piston rod provide a solid guarantee for the transmission of hydraulic power, which can easily cope with the demands of heavy-duty operations even in harsh environments such as dusty and vibrating environments, showing excellent durability.
In addition, the stationary pedestal rockbreaker boom system is specially designed with embedded parts for concrete foundation or steel structure foundation connectors. These components can realize a close and solid connection with the foundation structure, which provides a stable support base for the stationary pedestal rockbreaker boom system and ensures that it will not be shifted or shaken during long-time, high-intensity crushing operations, further enhancing the safety and reliability of the operation.
Applications of WHEN1410 rockbreaker boom system

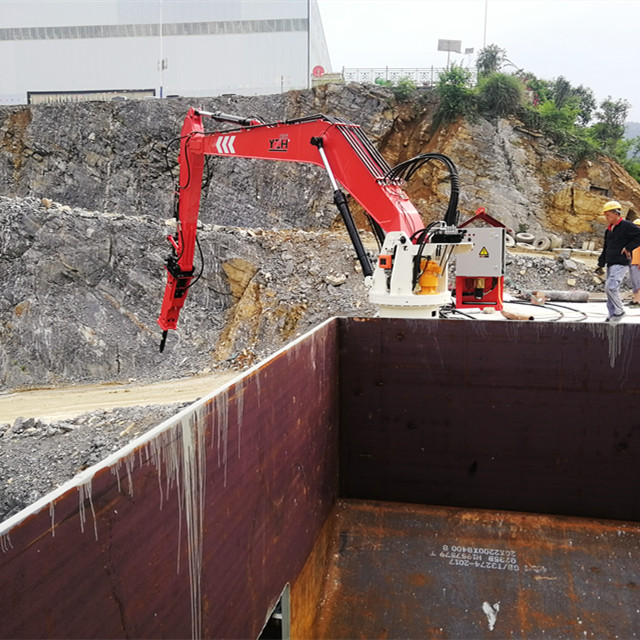

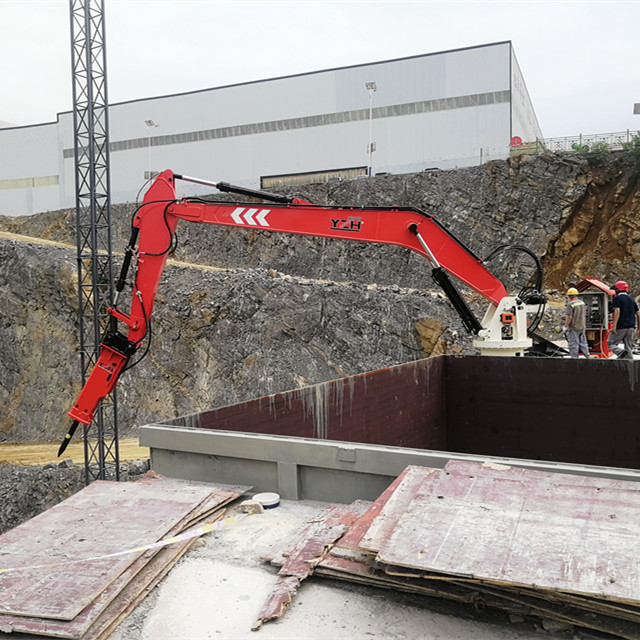

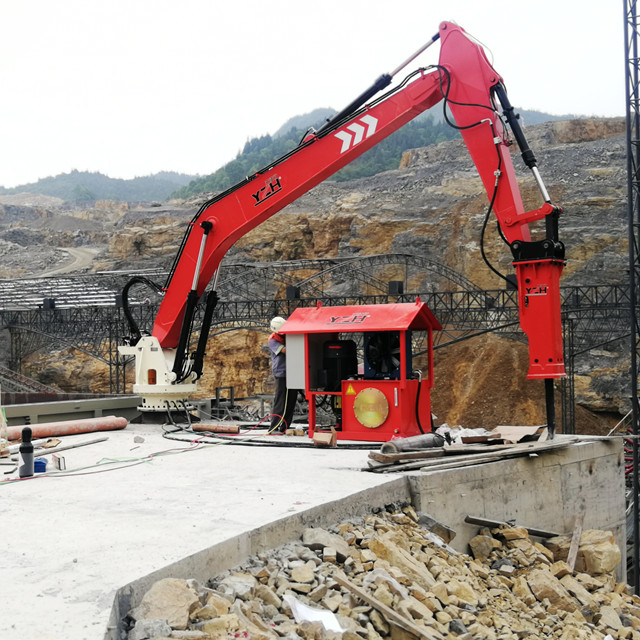

The WHEN1410 rockbreaker boom system is deeply integrated into the material flow of a crushing line when used in conjunction with a jaw crusher or impact crusher. While both types of crushers rely on a vibrating feeder to feed from the rock box, the WHEN1410's stationary pedestal rockbreaker boom system can be installed in a flexible manner to suit the layout of the site: fixed to the steel or concrete base of the crushing line to securely support high-frequency operations, or mounted on a separate column to cover a wider area of operation, responding to the needs of the different material-handling locations with precision.

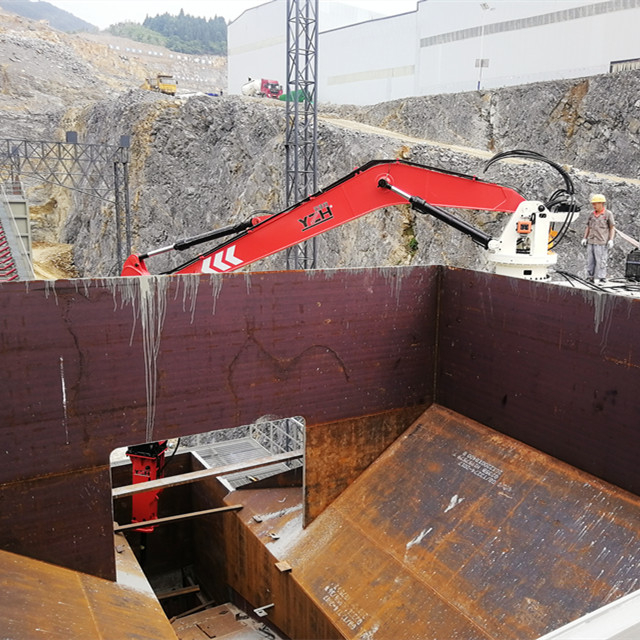

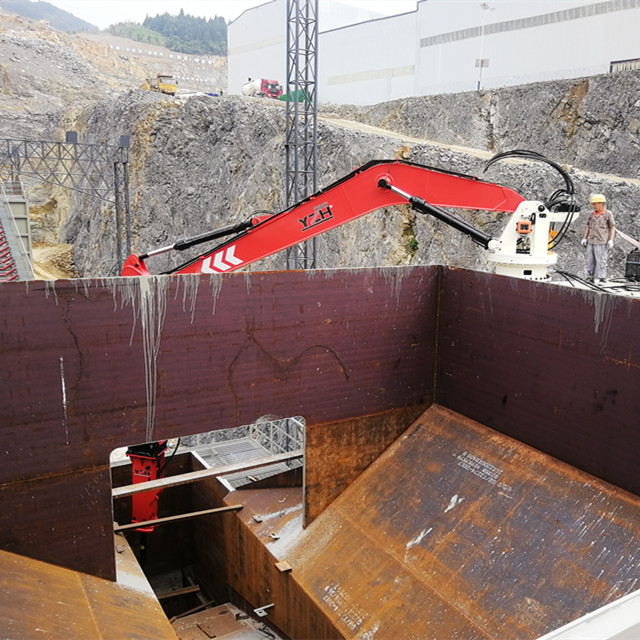

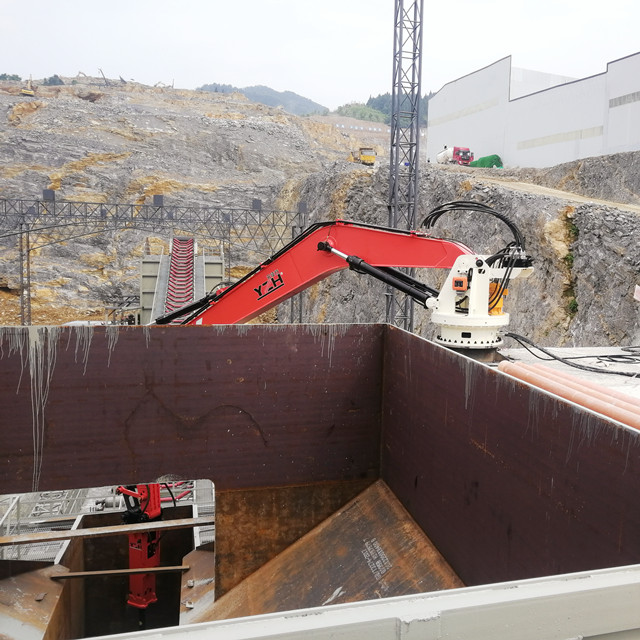

Its operation logic closely follows the pain points of the crushing production line: in the face of oversized boulders entering the feeding process from the rock box, the stationary pedestal rockbreaker boom system, with its long working radius of 16120mm, can easily crush them and reduce them to a size that complies with the feed standard of the crusher; when there is a blockage in the transportation channel, or at the entrance of the crusher, or in the hopper, it can flexibly reach into the narrow space, and through the precise dialing and crushing action of the stationary pedestal rockbreaker boom system, it can quickly clear the blockage and ensure that materials continue to enter the crushing plant. It ensures that materials continue to enter the crushing plant.
The WHEN1410 rockbreaker boom system has demonstrated its ability to work with multiple machines at Denning Mining. The two jaw crushers at the mine were often shut down due to the accumulation of large pieces of material at the inlet, so the stationary pedestal rockbreaker boom system quickly switched between targets through the intelligent control system, shortening the processing time of each blockage by 80% compared with that of manual labor. Meanwhile, the powerful 30-ton rotary motor can efficiently crush granite and other materials with a hardness of 300MPa. With the wear-resistant alloy parts, the average daily operating hours can reach more than 16 hours, which increases the crushing efficiency of the production line by 35%, fully proving its stable performance in complex crushing scenarios.
