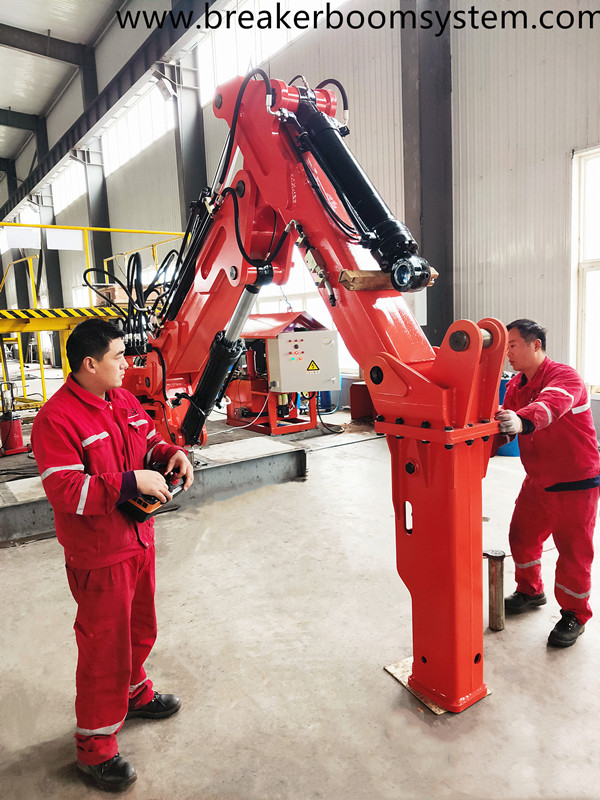

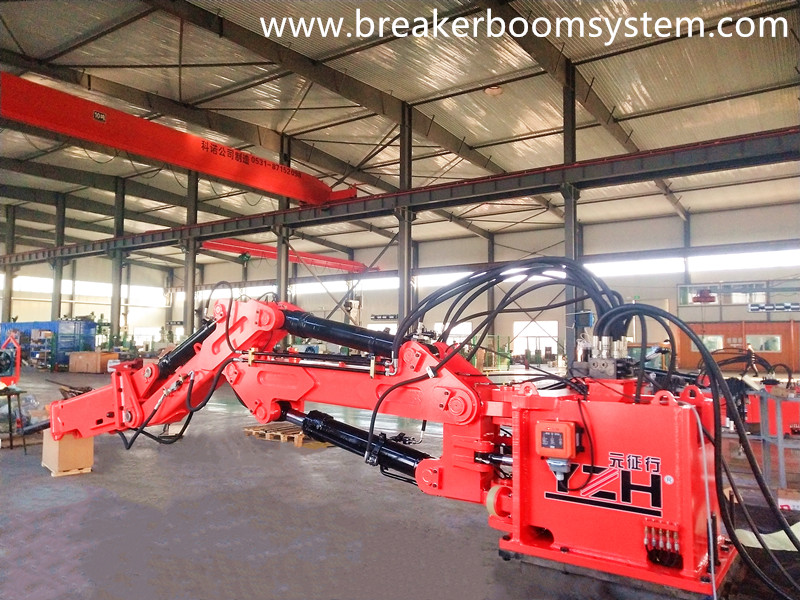

Rockbreaker Boom System Is Fully Tested Before Delivery

We all know that the equipment must be inspected and debugged before leaving factory. The main purpose is to check the quality of the equipment is qualified. YZH rockbreaker boom system shall also pass the factory inspection, meet the standards and ISO9001 quality system standards, and then rockbreaker boom system can be delivered.

All rockbreaker boom systems have to pass strict inspection before they go out. No one can match us so far as quality!

Technical performance of Rockbreaker Boom System:

1. The structural parts are processed by strength check and aging treatment, and are made of high-strength structural steel by stamping and gas shielded welding, which has a strong bearing capacity. The horizontal working range of the rockbreaker boom system ranges from 1 meter to 20 meters, and the swivel angle can be selected from 170 degrees, 180 degrees, and 360 degrees, which can fully meet the various requirements of customers. .

2. It can be equipped with a hydraulic breaker of YZH brand, and other brands of hydraulic breaker hammers can also be selected, such as: RAMMER hydraulic hammer, Indeco hydraulic breaker and Krupp hydraulic hammer, etc. The hydraulic breaker hammer equipped by YZH can break a minimum of 60 tons of ore per hour, the fragmentation degree is about 1m³, and the maximum crushable hardness rock coefficient is F17. All indicators can meet those of mining company's requirements.

3. The main components of the hydraulic oil station (power packs) , such as constant pressure variable pump, hydraulic proportional multi-way valve, pilot control valve, balance valve, buffer valve, etc. are imported or domestic high-quality brand manufacturers. The operation mode is simple, flexible and efficient, Reliable, high safety factor, energy saving and consumption reduction.

4. The standard for electrical control system is AC 380V50HZ motor drive. The system controls pressure, oil level, oil temperature, working time, etc, and has an alarm indication. The PLC centralized control device and line connection adopt a higher protection level (IP64 ). the cover is made of stainless steel housing with clean, energy saving, low running cost and strong adaptability. It can also work in harsh environments such as high temperature / high humidity / high cold / high dust concentration.

5. The cooling system uses air-cooled cooler to control the oil temperature of the system, which provides protection for the long-term work of the equipment, also provides protection for the use of hydraulic components and vulnerable parts, prolongs the service life of the whole machine, reducing the cycle of after-sales maintenance.

6. The cabinet operate adopts adopts sealed cab with air conditioner and reasonable ergonomic layout, provides the operator with a more comfortable and relaxed working environment.

7. Radio remote control can realize both wired and wireless operation, which is convenient for the operator to move the remote control equipment remotely.

8. Optical fiber plus 5G remote video control can realize remote video remote control operation of man-machine separation.

9. After spray blasting and rust removal, the military aircraft carrier rust removal primer is applied to make the equipment more rust-proof and anti-corrosive under the open-air conditions and have a longer service life.
