This dedication to sourcing and utilizing the best materials ensures not only durability but also optimal performance in every rock breaker boom system of YZH we manufacture.
YZH (Jinan YZH Machinery Equipment Co., Ltd & Shandong YZH Machinery Equipment Co., Ltd) is a Chinese manufacturer that produces rock breaker system and other mining/construction equipments. While not as globally recognized as brands like Sandvik (Rammer), BTI (ASTEC), Furukawa, Total rockbreaking, Davon, Mcquaid, Transmac, Tabe, or NPK, YZH has gained traction in certain markets due to its cost-effective solutions.

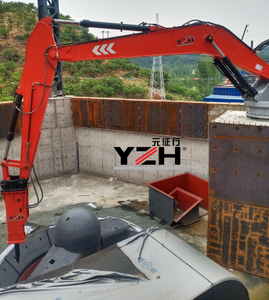

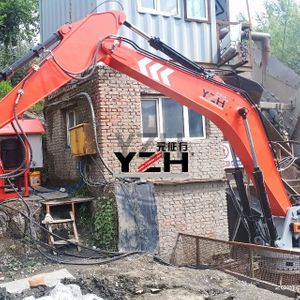

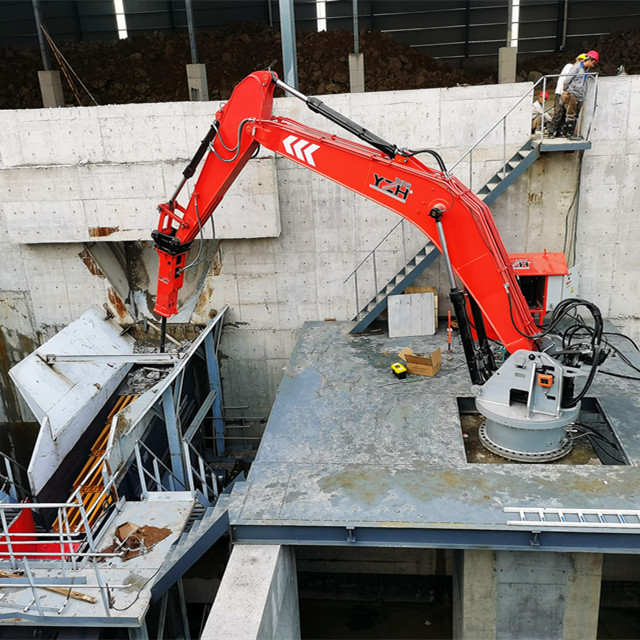

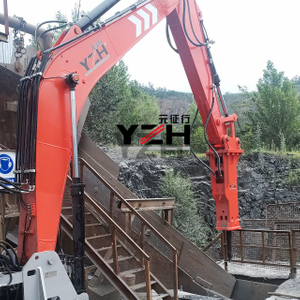

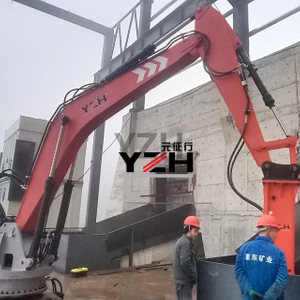

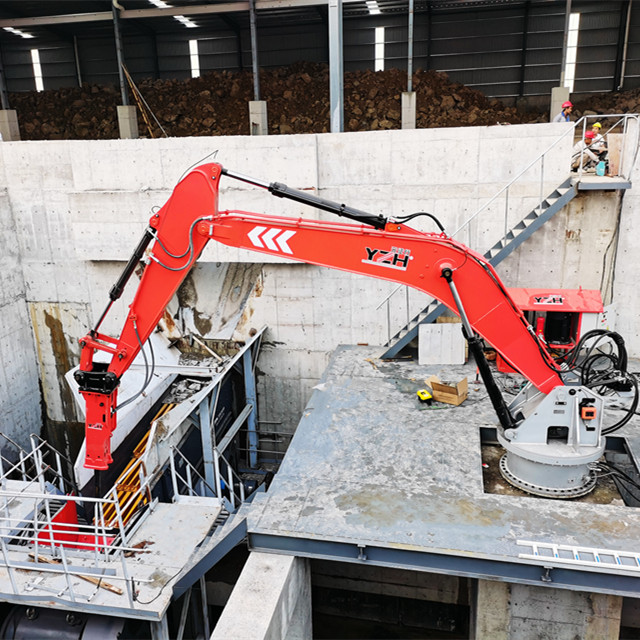

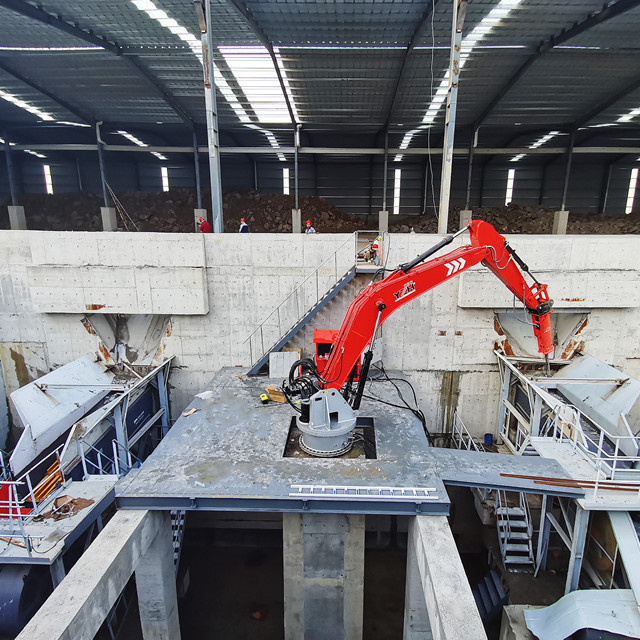

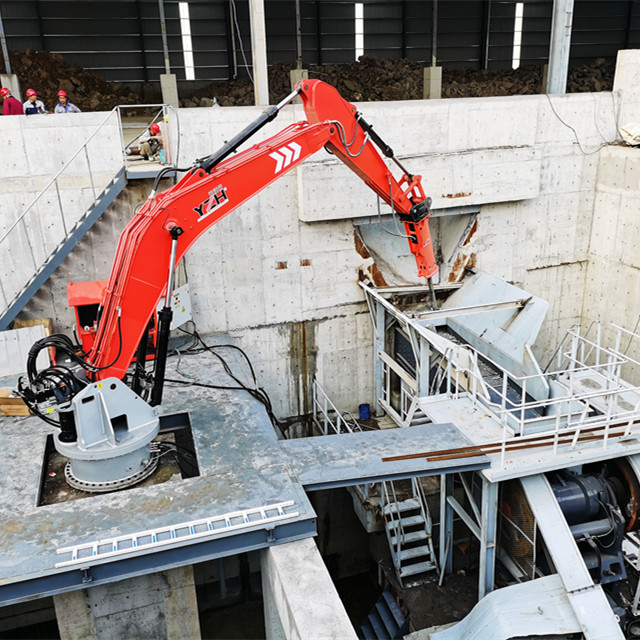

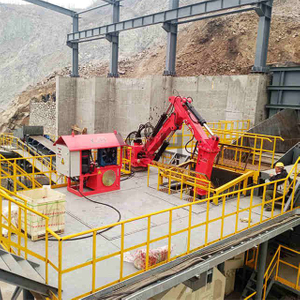

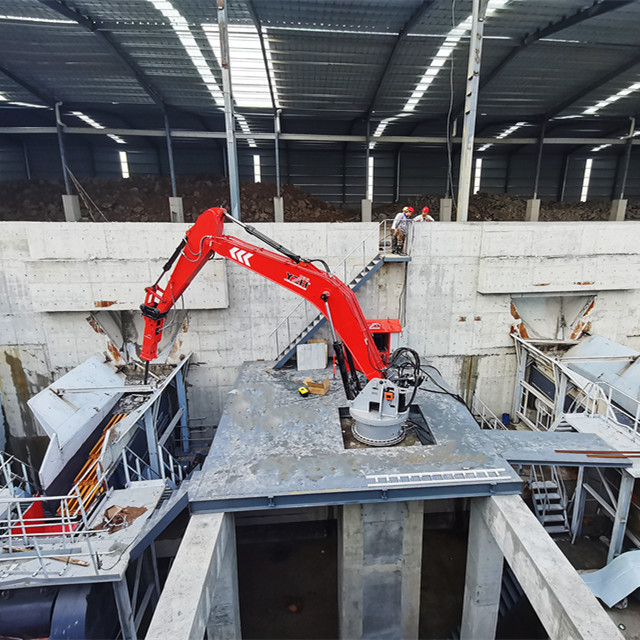

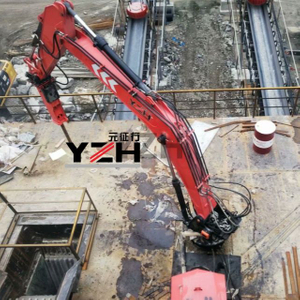

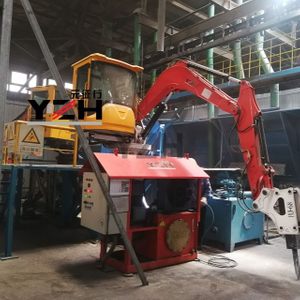

YZH pedestal boom mounted on a rock breaker (or rockbreaker boom system) is a specialized piece of equipment used in mining, quarrying, aggregate plants, cements and construction to break oversized rocks and boulders at primary crusher stations, grizzlies, jaw crushers or stockpile areas.
Main Applications of Rock breaker system:
1. YZH rock breaker system uses for primary jaw crushers and impact crushers
Lighter types of yzh pedestal rock breaker systems are used for primary jaw crushers or impact crushers, with smaller hydraulic hammers capable of breaking extremely hard and abrasive large rocks. YZH fixed rock breaker system is used to break up oversized pieces in the crusher or to free up the transport routes to the crusher.
2. YZH rock breaker system uses for primary gyratory crushers
Large and powerful rock breaker systems with large hammers constructed for continuous and heavy operation are intended for primary gyratory crushers. They are used to break up oversized pieces of crushed material or to free up caving (vaults) in the crusher.
3. YZH rock breaker system uses for mobile crusher
In the case of mobile crushers small rock breaker boom systems are used which are fitted directly to the structure of the mobile crusher.
4. fixed rock breaker boom system uses for crushing on grid (GRIZZLY)
For this type of crushing a rock breaker boom system with a suitably massive structure and a powerful and strong hammer which crushes the rock on a horizontal grid with defined opening sizes is used. This is primary crushing under continuous operation.
Main parameters of Rock Breaker System
Model No
Unit
WHD1250
Max Horizontal Working radius
kg
15350
Max Vertical working radius
kg
13080
Min Vertical working radius
kg
3320
Max Height
mm
9010
Max. working depth
mm
9360
Rotation
°
360
Power of Hydraulic Power Unit
kw
75/90/110
YZH rock breaker system replaces human workers in high-risk duties through an integrated system of advanced hydraulics, machinery and safety features. Powerfully and productively automating difficult or perilous tasks, its multi-functional attachments overcome diverse challenges across industries. A purpose-built solution for extreme conditions requiring heavy-duty mechanical arms, the WHD delivers efficient, safe productivity where risks are high.
A solution for automation in labor-intensive industries, the rock breaker system prevents clogs in large crushers, mills and hoppers. In steel plants and mines it dismantles structures and crushes ore chunks, improving material flow and safety. Mounted on fixed bases or mobile equipment, the rock breaker system operates dependably in demanding environments.Reliable and adaptable, the robust rock breaker system enhances productivity for applications like mining, cement production, demolition, and emergency response. Its heavy-duty and versatile design is suitable for clearing oversized materials, facilitating hazardous processes, and handling dangerous goods.
YZH rockbreaker boom system features a robust high-strength steel construction and advanced hydraulics. It is driven by a powerful motor and hydraulic pump, with multiple safety mechanisms ensuring safe operation. 360° rotation and a long reach give it flexibility. This heavy-duty, durable solution is suitable for hazardous areas where extreme conditions require high performance material handling. It enhances productivity and reduces manual labor through automation.

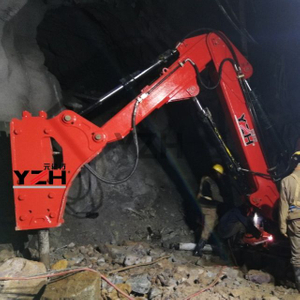

rock breaker systems improves material flow and safety across mining and quarrying. It clears oversized boulders at the discharge points of crushers and loadout facilities in quarries and open pit mines, enabling efficient transportation. In underground mines with limited space, it handles and crushes oversized materials at ore passes and tipping points, increasing productivity.
Rock breaker system also serves heavy industries like demolition, recycling and construction. It handles heavy, bulky materials and breaks down large objects where manual work is dangerous or inefficient. An ideal solution for intensive manual labor in hazardous environments, the rock breaker boom system provides a powerful, highly productive alternative to human workers for extreme material handling challenges.
