Pedestal Hydraulic Rockbreaker Boom System

YZH is one of the pioneer manufacturer of Stationary Boom Breaker System in China. These Pedestal Boom Breaker system is suitable for underground mining, stationary crusher application and mobile crusher application.

Quantity:
  • Series C
  • YZH
  • C285N, C320N, C350N, C400N, C450N, C500N, C550N, C600N

170 Degrees Slewing Pedestal Hydraulic Rockbreaker Boom System

C Series Unit

YZH

-C285N

YZH

-C320

YZH

-C350

YZH

-C400

YZH-C450 YZH-C500

YZH

-C550

YZH-

C600

Weight

kg 1320 1370 2500 2550 2600 2650 2700 2750

Maximum Reach

m 4.7 5.2 5.4 5.8 6.3 7 7.3 7.7

Nominal Horizontal

Reach (H)

m 3.2 3.5 3.9 4.3 4.6 5.6 5.8 6.2
Nominal Vertical Reach (V) m 3.3 3.8 3.8 4.3 4.6 5 5.2 5.7
Swing° ° 170 170 170 170 170 170 170 170
Base Diameter m 0.69X0.93 0.69X0.93 0.81X0.96 0.81X0.96 0.81X0.96 0.81X0.96 0.81X0.96 0.81X0.96

Recommended

Hammer(Chisel Size )

mm

85,

100

85,

100

85,

100

85,100,

125

85,100,

125

85,100,

125

85,100,

125

85,100,

125

Recommend Power

Packs

set H37 H37 H37 H37 H37 H37 H37 H37

Applications:

•Mobile crushers

•Stationary crushing plants

•Recycling plants

•Light duty applications

•Metallurgical industry


Features:

•Compact multi-purpose boom

Light weight

Heat treated pins

Compact Design

360°、170° rotation

Suitable hammers for these booms are small series from 85 to 125 in large C-series.


RockbreakersRockbreakersRockbreakers

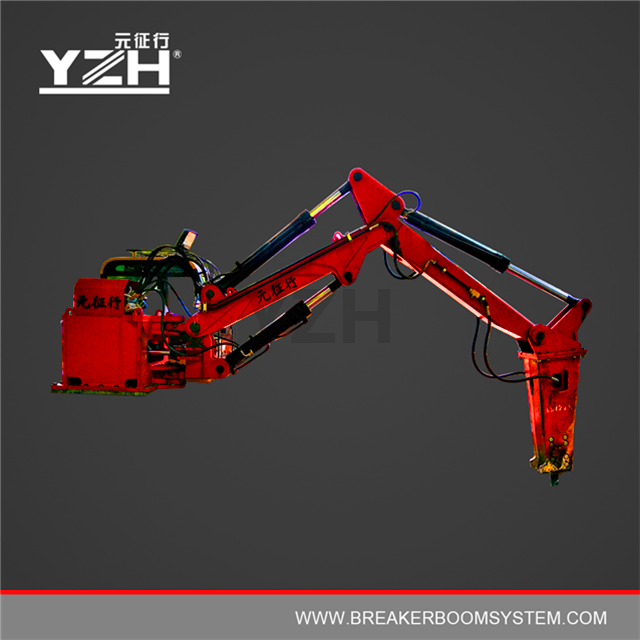

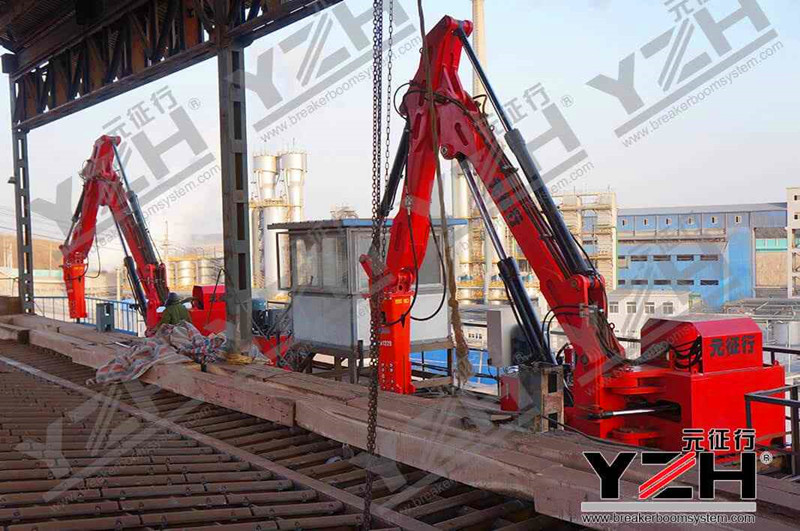

This is a stationary mounted boom system with a slewing articulated boom used to position a hydraulic hammer to breake oversize boulders on a feeder, crusher or grizzly. The boom system is based on pedestal fixed either to concrete or steel foundation.
