Pedestal boom system
The WH series takes the curved boom design as its core advantage, which strengthens the structural strength of both large and small booms, and makes its crushing capacity and material gripping volume increase significantly, and the working efficiency is higher.WHA460 pedestal boom system is the special equipment of the WH series for the handling of materials in hazardous environments, and it can solve the problem of material clogging effectively, and it combines safety and strong power. It consists of four parts: boom, hammer, hydraulic station and remote control. The hydraulic station is equipped with a 30 kW motor and a 90 l/min pump, which provides a powerful drive for efficient operation of large equipment. In addition, the WHA460 pedestal boom system is able to rotate 360°and has a maximum working range of 6000mm, providing excellent flexibility and adaptability to a wide range of complex work scenarios, as well as stable performance in hazardous environments, and reliable support for material handling.

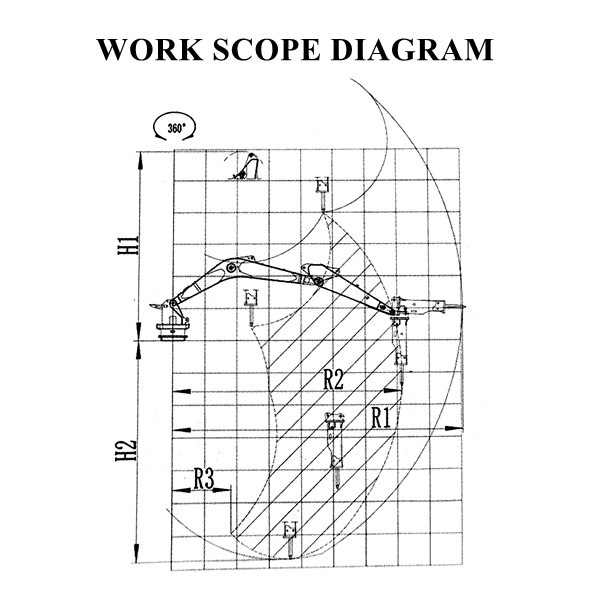

Parameters of WHA460 pedestal boom system
| Model No | Unit | WHA460 |
| Boom weight (without hammer) | kg | 1650 |
| Max.Horizontal working radius(R1) | mm | 6000 |
| Max.Vertical working radius(R2) | mm | 4510 |
| Min.Vertical working radius(R3) | mm | 1630 |
| Max.Height (H1) | mm | 3540 |
| Max.working depth (H2) | mm | 400 |
| Rotation | ° | 360 |
| Pedestal Size | mm | Φ800 |
| Power of Hydraulic Power Unit | kw | 18/22/30 |
Characteristics of WHA460 pedestal boom system
Durable and sturdy hammer: The matched hammer is made of high strength steel, which is not only durable but also has excellent sturdiness, and the maximum load can reach 14 tons, which can cope with high intensity crushing operation.
Multiple Safety Mechanisms: Adopting multiple safety designs, equipped with equipment locks in many places, as well as overload protection and emergency stop function, it ensures the safety of the working process in all aspects.
Convenient remote control: Supporting remote control operation, the operator does not need to contact the equipment in close proximity, which not only ensures the convenience of operation, but also improves the safety of operation.
Advantages of WHA460 pedestal boom system

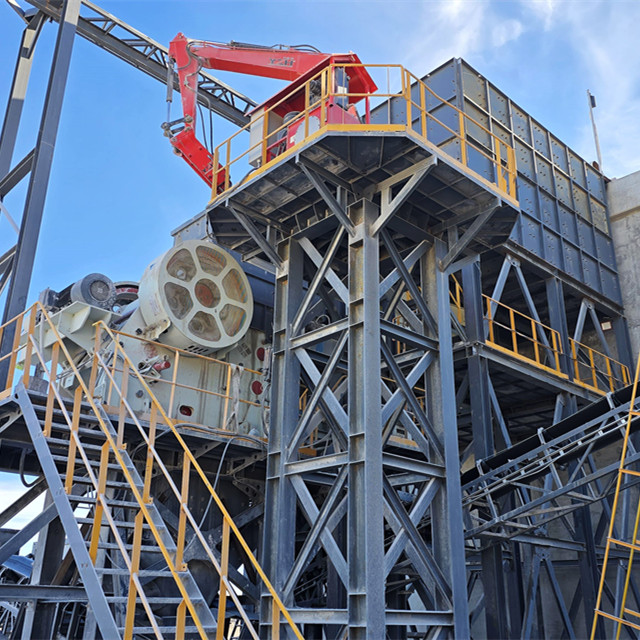

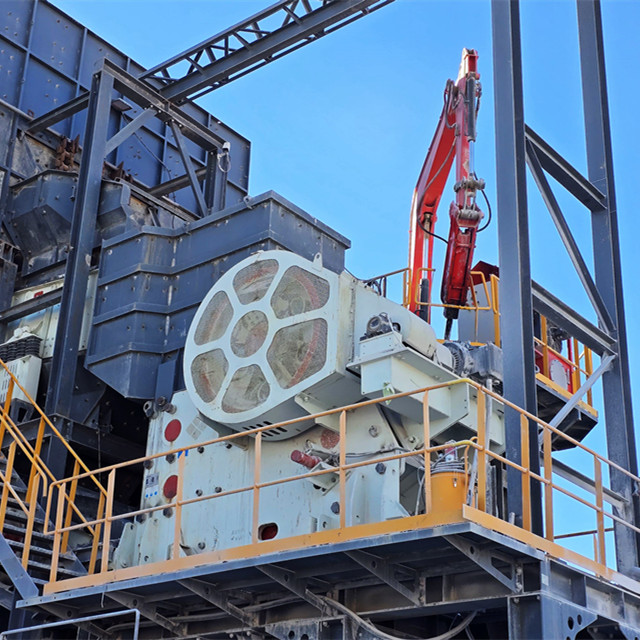

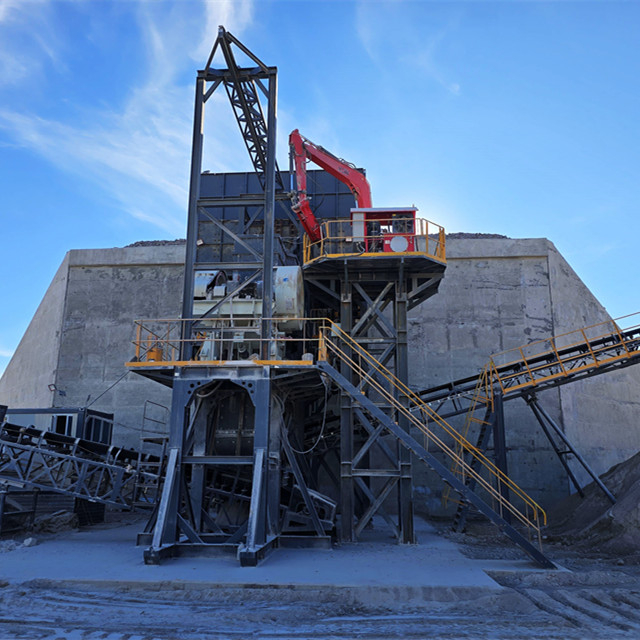

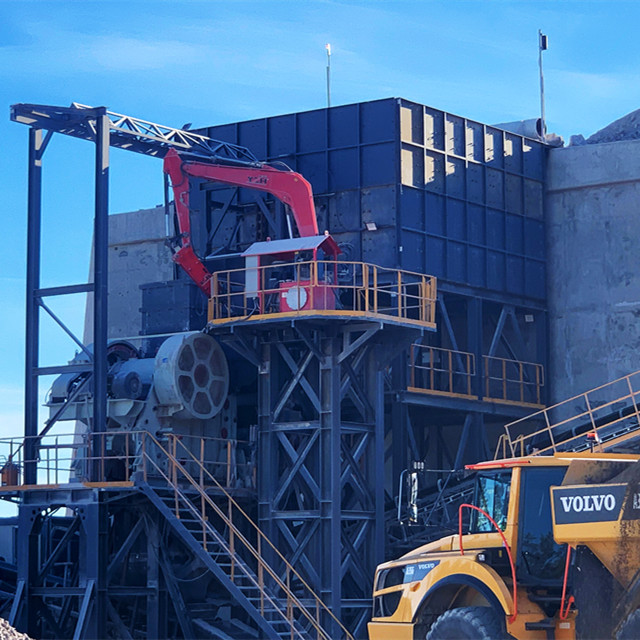

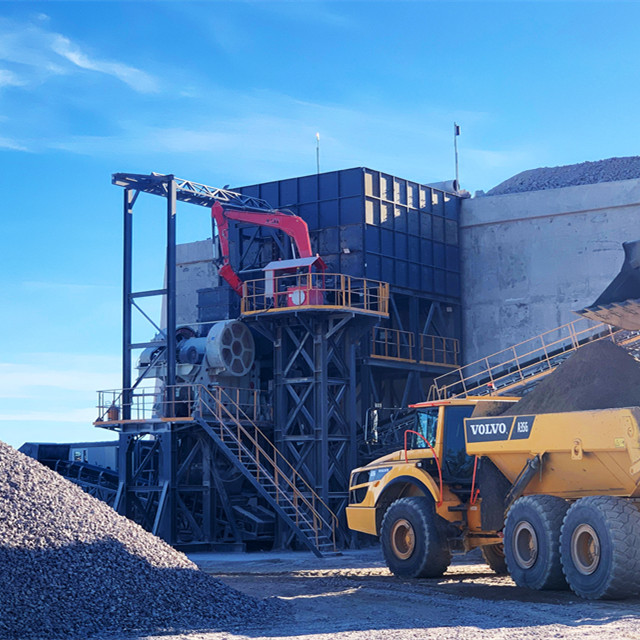

Pedestal boom system plays a critical role in the mining, quarrying, construction and crushing industries, improving productivity and safety in all aspects of the industry. In mines and quarries, where oversized materials often clog up crusher and ship loading facilities, seriously affecting the efficiency of material transportation, the pedestal boom system's powerful crushing force quickly breaks up these oversized materials and ensures that the material transportation path is always smooth. In the underground ore passage, its flexible arm design can work freely in the narrow space, accurately handle oversized materials, break the space limitations, and ensure the smooth progress of underground mining operations.
Facing the handling of heavy and bulky objects, as well as the dismantling of large structures that are difficult or dangerous to operate manually, pedestal boom system shows its advantages. Relying on the advanced hydraulic system and mechanized operation, it easily replaces intensive human labor, completely eliminates the risks associated with high-load manual operation, and greatly enhances operational safety. In the construction industry, whether it is large concrete structures in demolition operations or heavy building materials encountered in material handling, it can steadily exert powerful performance. In complex construction waste treatment scenarios, it can efficiently crush and classify waste construction materials, helping to recycle and reuse resources. In the production of sand and gravel aggregate, it can accurately control the crushing granularity to meet the needs of different construction projects. The is a powerful, durable and productive machine with a flexible range of motion of 360° rotation and 6000mm reach, a durable and robust hammer with a maximum load of 14 tons, and multiple safety mechanisms for hazardous areas and special applications that require a stationary type pedestal boom system, making it an ideal solution for complex operations in a wide range of industries.
