Hydraulic Rockbreaker Booms Systems

YZH is one of the pioneer manufacturer of Stationary Pedestal Boom Breakers System in China. These Pedestal Boom Breaker system is suitable for underground mining, stationary crusher application and mobile crusher application. This Pedestal Boom system will allow crushers to achieve max.

Quantity:
  • Series XL 2
  • YZH

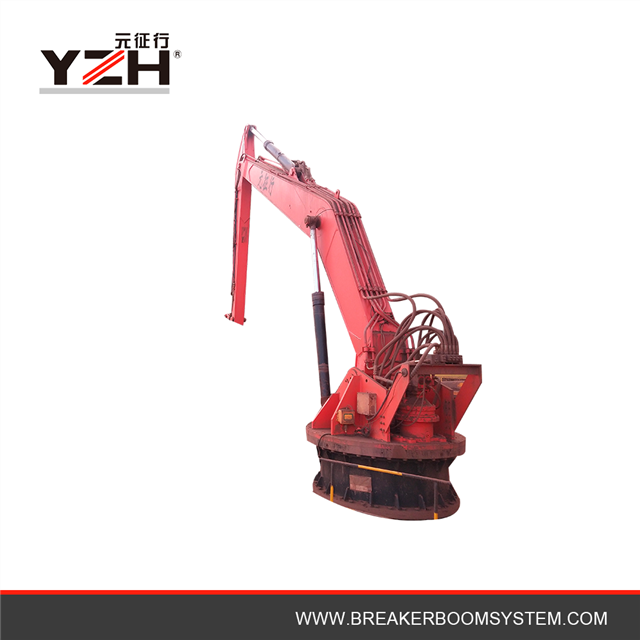

360 Degree Rotating Type Hydraulic Rockbreaker Booms Systems


Applications

Stationary crushers

Grizzlies

High production applications


Features

Round pedestal

Heavy-duty design

Proven design

Long reach

360° swing option

Suitable hammers for XL-booms are large series hammers up to 175


XL Series1

Unit YZH-XL940R YZH-XL1020R YZH-XL1200R YZH-XL1400R

Weight

kg 11100 11500 12500 13500

Maximum Reach

m 12.7 13.4 14.6 17.0
Nominal Horizontal Reach (H) m 9.8 10.5 12.2 14.1
Nominal Vertical Reach (V) m 9.0 9.8 10.4 13.0
Swing° ° 360 360 360 360
Base Diameter m 1.40 1.40 1.40 1.40

Recommended Hammer Types

 (Chisel Size )

mm 140,155,175 140,155,175 140,155,175 140,155,175

Recommend Power Packs

set

H55,H55HD,

D75

H55,H55HD,

D75

H55,H55HD,

D75

H55,H55HD,

D75

Rockbreakers SystemRockbreakerStationary Rockbreaker
