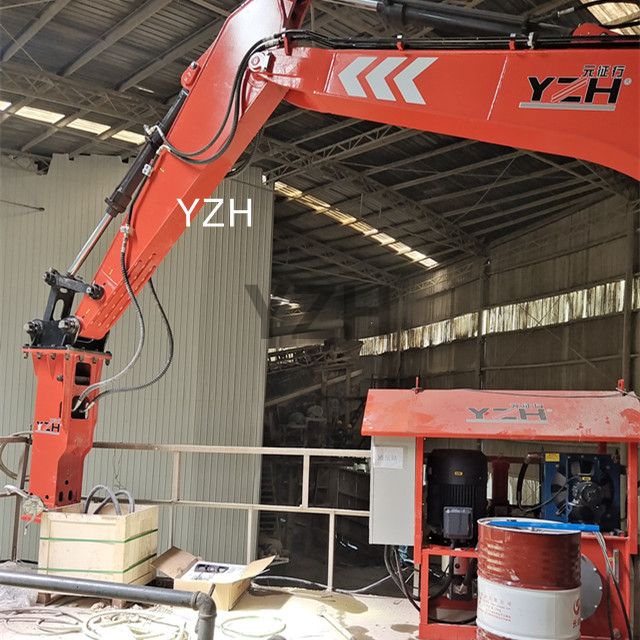

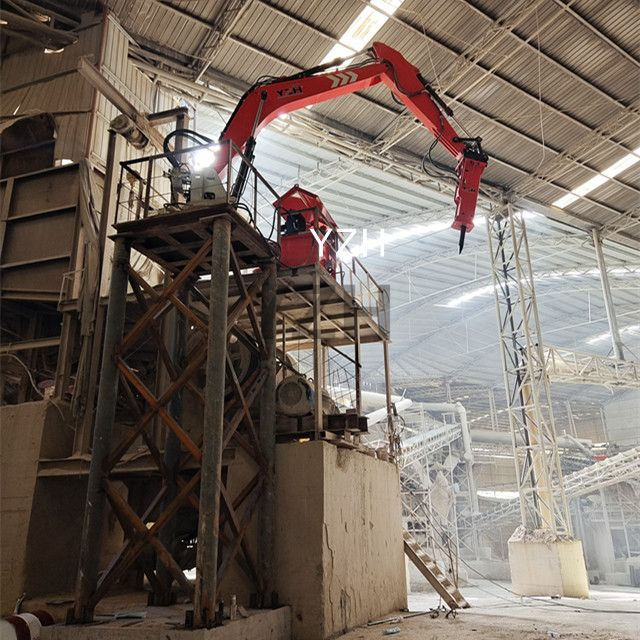

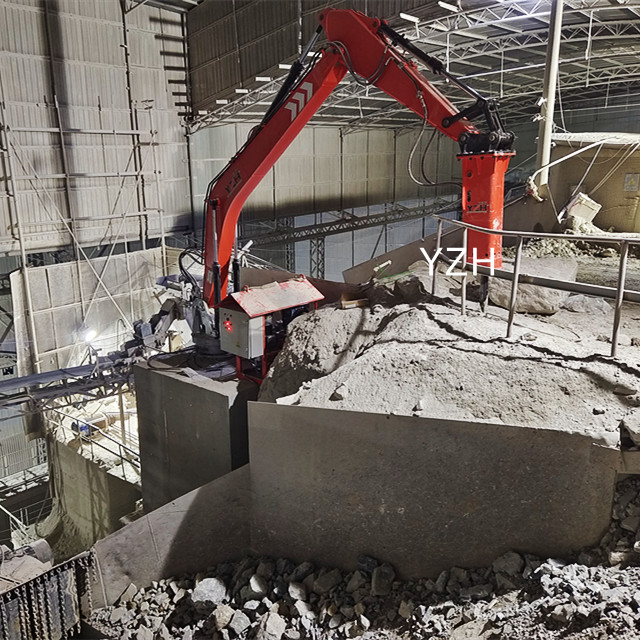

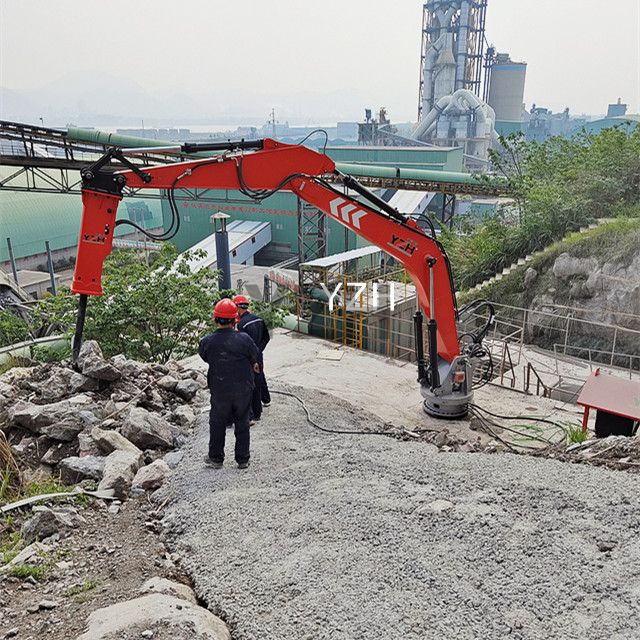

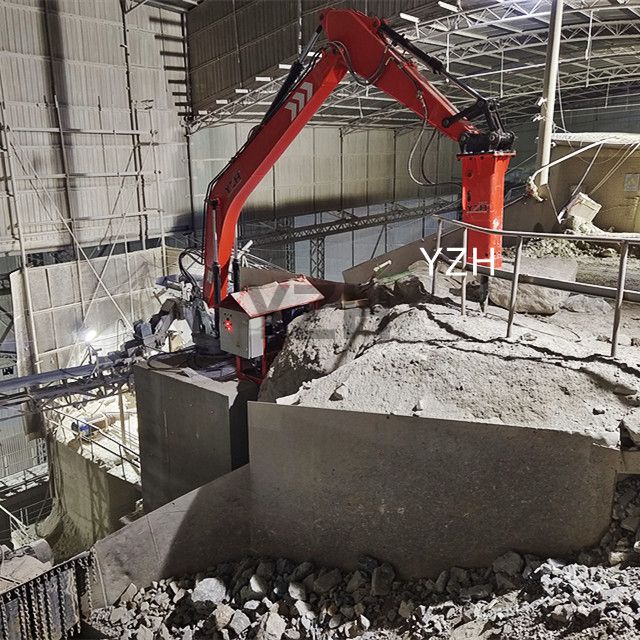

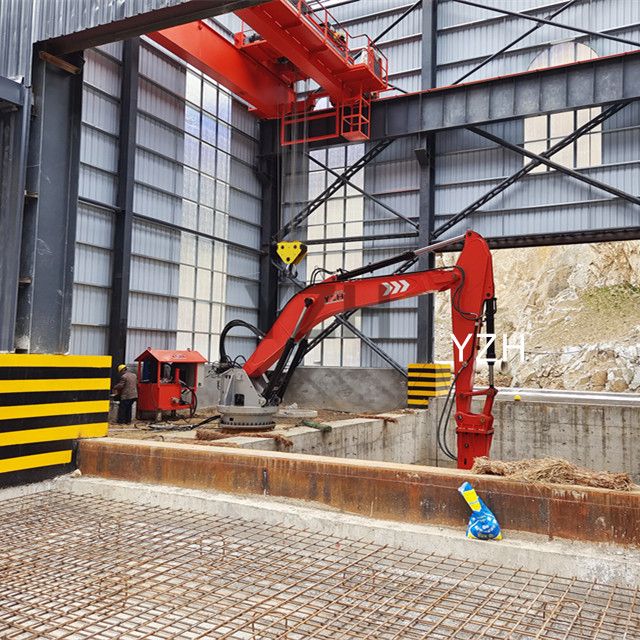

YZH’S High Strength Rockbreaker Boom System

YZH’S high strength rockbreaker boom system

YZH’S high strength rockbreaker boom system has a sturdy and durable body structure that can adapt to various complex and harsh working environments such as mines and gravel fields. It is not afraid of challenges such as high temperature, high humidity, high cold, and high dust, providing reliable support for your production operations.

In terms of design, this YZH’S high strength rockbreaker boom system adopts advanced hydraulic drive technology, with precise, flexible and efficient movements.

The rotation angle can be selected as 170 ° or 360 ° according to actual needs, and the horizontal working range ranges from 1 meter to 20 meters, which can easily cover different work areas and achieve all-round crushing operations.

At the same time, the front end of the YZH’S high strength rockbreaker boom system is equipped with a high-performance crushing hammer, which can crush 60 tons of ore per hour, with a crushing block size of about 1m ³ and a crushing hardness rock coefficient of F17. Whether it is hard granite, iron ore, or other high-strength ores, it can easily handle and efficiently complete the crushing task.

In terms of intelligence, this YZH’S high strength rockbreaker boom system is particularly outstanding.

It is equipped with an advanced electrical control system, driven by an AC 380V 50HZ motor, to accurately control pressure, oil level, oil temperature, working time, etc., and has alarm indicators to ensure safe and stable operation of the equipment.

At the same time, it also has a PLC centralized control device with a line connection protection level of IP65, which can effectively prevent impurities such as dust and water from entering and ensure the stable operation of the system.

In addition, YZH’S high strength rockbreaker boom system also supports video surveillance and remote control, with an operating distance of up to 10-20km, allowing you to easily control the work site from the control room and achieve remote operation. This not only improves work efficiency but also greatly reduces the safety risks of operators.

This YZH’S high strength rockbreaker boom system also has excellent energy-saving and environmental performance.

Adopting hydraulic vibration crushing technology, it is quiet and efficient, reducing noise pollution during operation;

The motor-driven method is more energy-efficient than traditional diesel equipment, reducing energy consumption costs by more than 50%, in line with the development concept of green environmental protection, and helping you achieve sustainable development goals.

Moreover, its post maintenance is also very simple.

The structural components have undergone strength verification and aging treatment, and are processed using high-strength structural steel through stamping and gas shielded welding methods, with extremely strong load-bearing capacity;

The main components of the hydraulic pump station system are all imported or well-known domestic brand manufacturers, with reliable quality;

The cooling system adopts an air-cooled cooler to control the oil temperature of the system, providing guarantee for long-term operation of the equipment, extending the service life of the whole machine and components, and reducing the after-sales maintenance cycle and maintenance costs.
