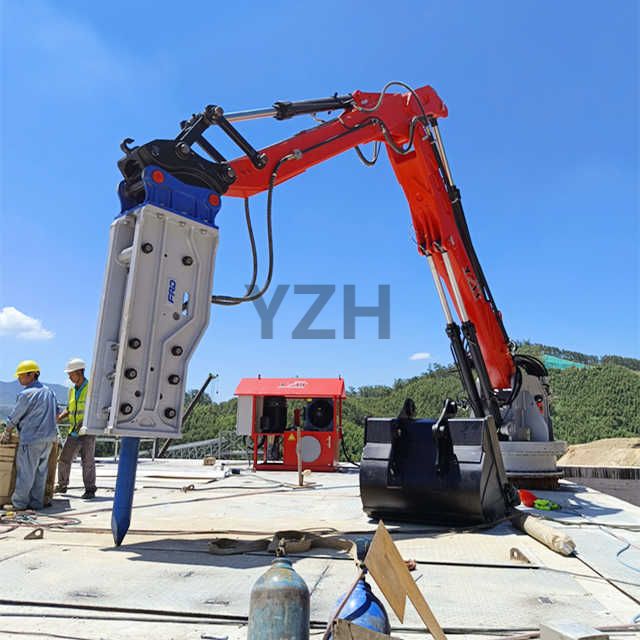

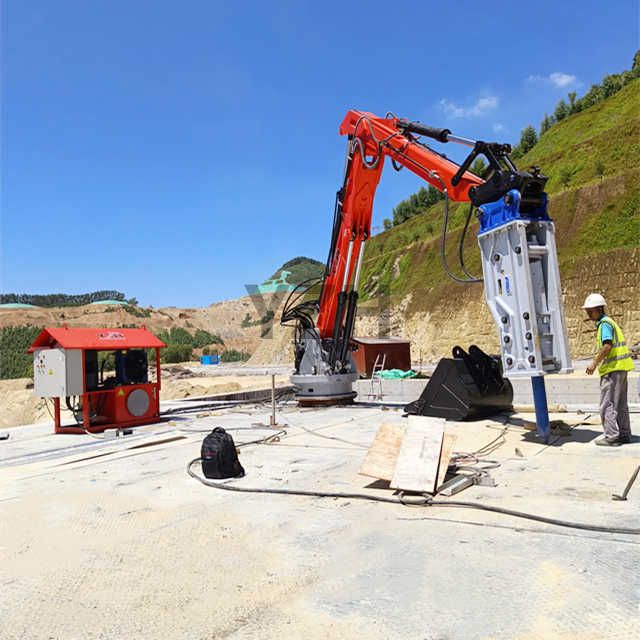

YZH fixed rockbreaker boom system is a machine designed to manipulate large rocks, including reducing large rocks into smaller rocks. It is typically used in the mining, quarrying and aggregate industries to remove oversize rocks that are too large or too hard to be reduced in size by a crusher. YZH fixed rockbreaker boom system includes everything you need: a sturdy boom with assembly framework, hydraulic hammer, power pack and radio remote-control devices. It can be divided into small range, medium range and large range.
Small range rockbreaker is typically used in quarries, next to primary crushers, to clear any blockages and bridging in stationary crushing plants as well as mobile crushers. Medium range is designed for heavier open-pit and underground applications. Mines and quarries typically use medium range rockbreaker to improve the productivity of stationary crushers by feeding material into the crusher and by raking the hopper area. Large range rockbreaker is specially designed primarily for mining markets.
Model No.
BHB500
Max. horizontal working radius
7330mm
Max. vertical working radius
5310mm
Min. vertical working radius
2150mm
Max. working depth
4800mm
Rotation
360°
YZH Fixed Rockbreaker Boom System
YZH fixed rockbreaker boom system is a machine designed to manipulate large rocks, including reducing large rocks into smaller rocks. It is typically used in the mining, quarrying and aggregate industries to remove oversize rocks that are too large or too hard to be reduced in size by a crusher. YZH fixed rockbreaker boom system includes everything you need: a sturdy boom with assembly framework, hydraulic hammer, power pack and radio remote-control devices. It can be divided into small range, medium range and large range.
Small range rockbreaker is typically used in quarries, next to primary crushers, to clear any blockages and bridging in stationary crushing plants as well as mobile crushers. Medium range is designed for heavier open-pit and underground applications. Mines and quarries typically use medium range rockbreaker to improve the productivity of stationary crushers by feeding material into the crusher and by raking the hopper area. Large range rockbreaker is specially designed primarily for mining markets.
