YZH fixed hydraulic boom system
The YZH fixed hydraulic boom system is a specialized piece of equipment designed for efficient rock breaking operations. Here's a detailed description of this product:
The YZH fixed hydraulic boom system is primarily used in mining, quarrying, and construction industries to break large rocks into smaller, more manageable sizes. It offers a safe and effective alternative to traditional methods of rock breaking, reducing the risk of injury to workers and minimizing damage to surrounding infrastructure.

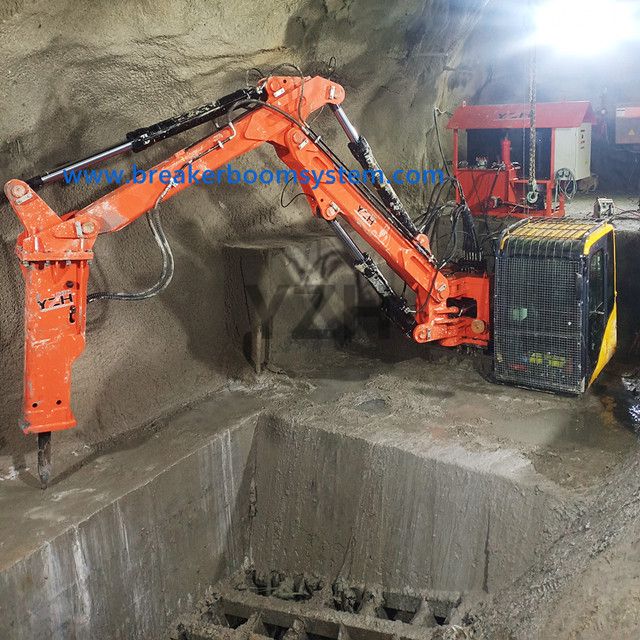

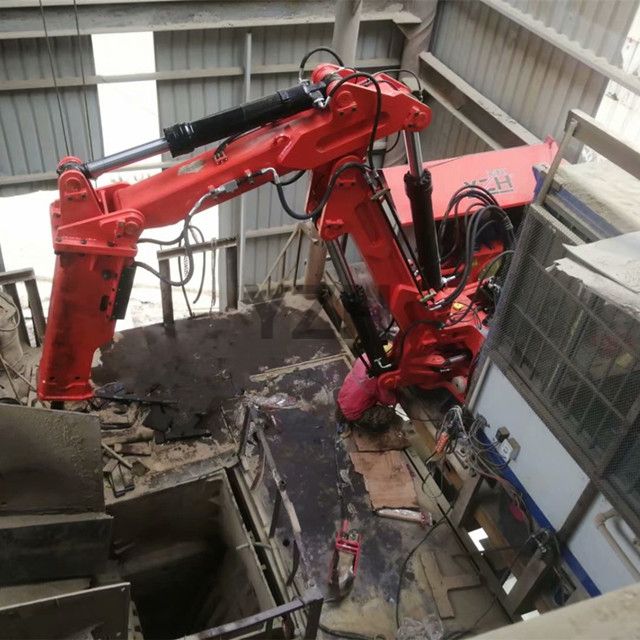

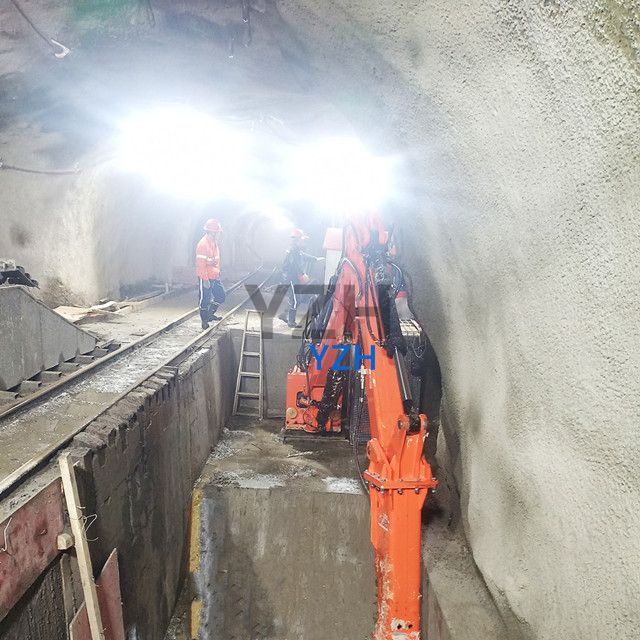

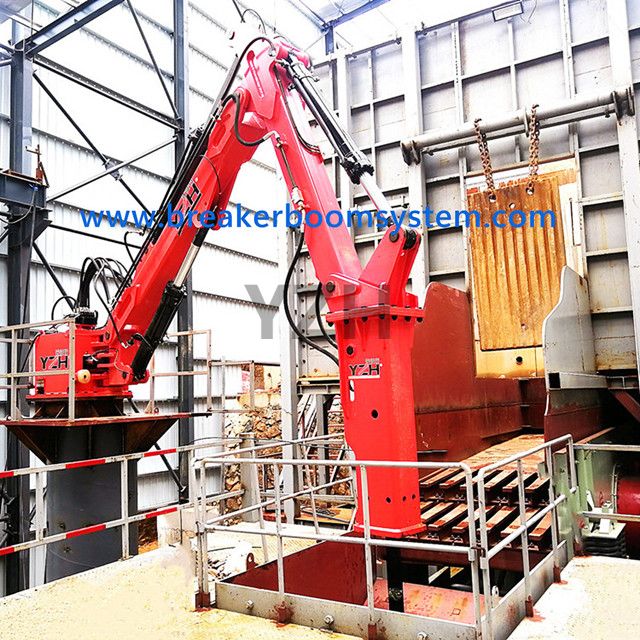

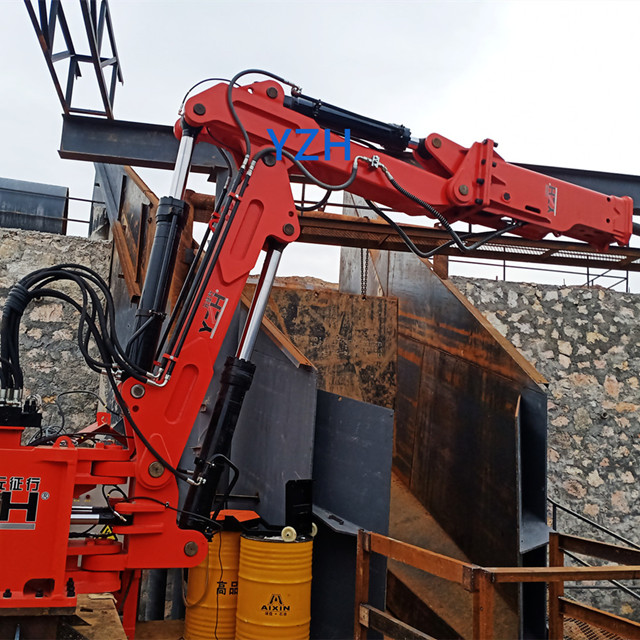

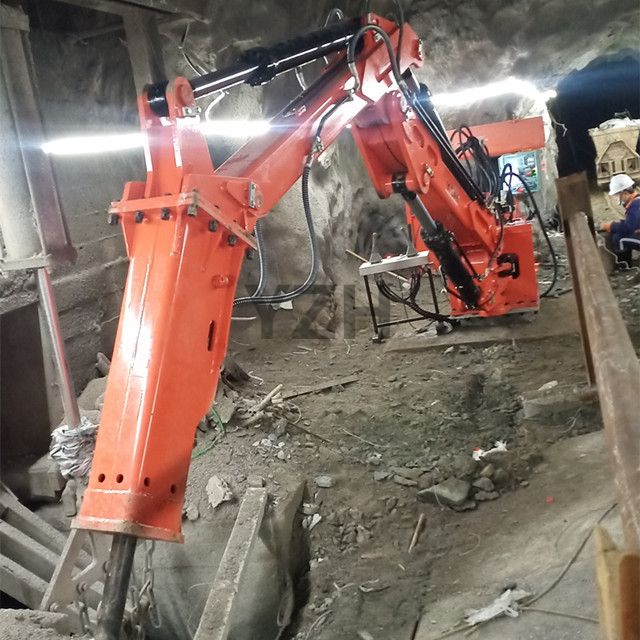

This YZH fixed hydraulic boom system consists of a boom mounted on a pedestal, which provides stability and flexibility in positioning the rock breaker. The boom can be extended, retracted, and rotated to reach different areas of the work site, allowing for precise placement of the breaker on the target rock.
| Model No | Unit | BB350 |
| Boom weight | kg | 3168 |
| Max Horizontal Working radius | mm | 6000 |
| Max Vertical working radius | mm | 3950 |
| Min Vertical working radius | mm | 1860 |
| Rotation | ° | 170 |
