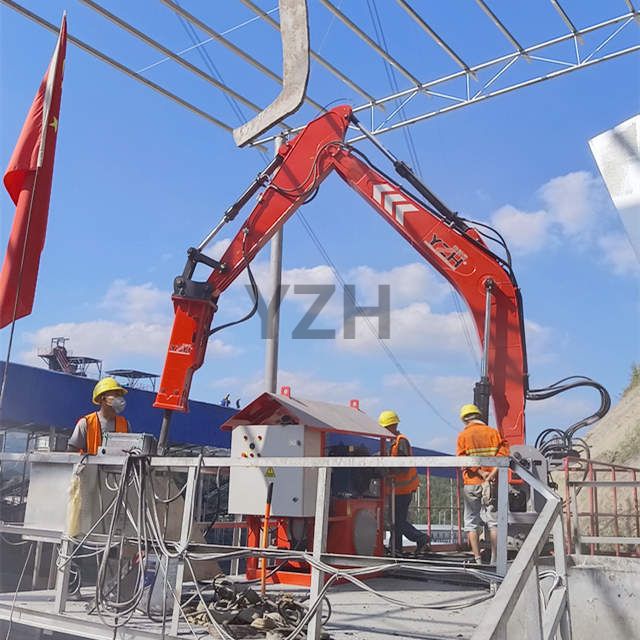

Static type pedestal boom system consists of the rotating upper part of the frame or a swivel console, lift boom, arm with a hydraulic hammer attached to it. The lower part of the frame is firmly fixed to a base. Power is supplied by a hydraulic unit. Static type pedestal boom system is used to break up and crush stone, ore, slag, concrete and other materials.

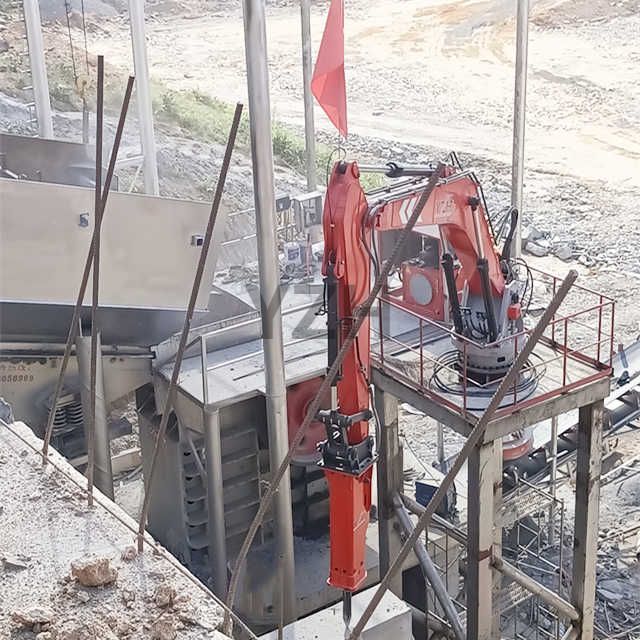

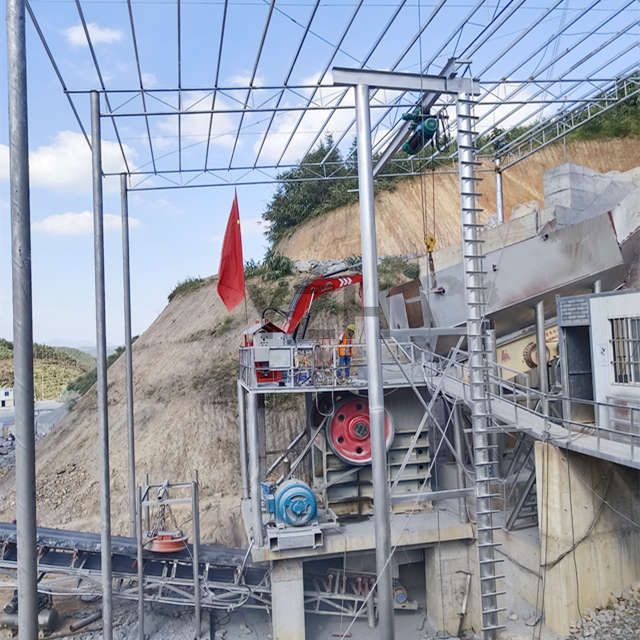

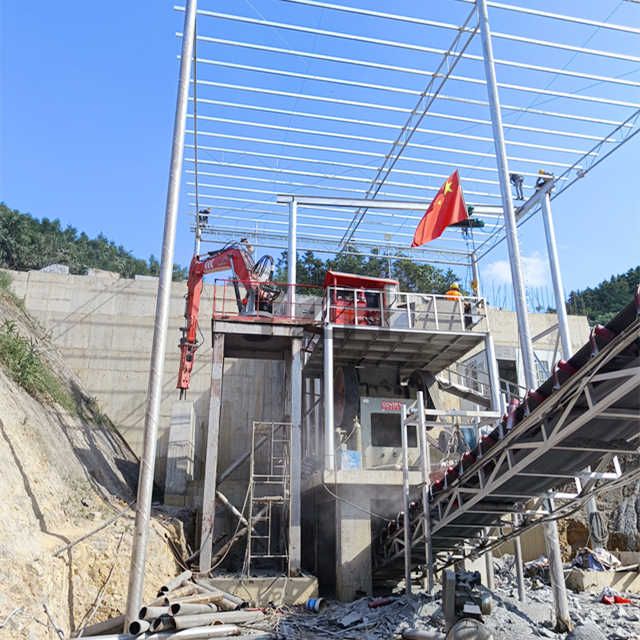

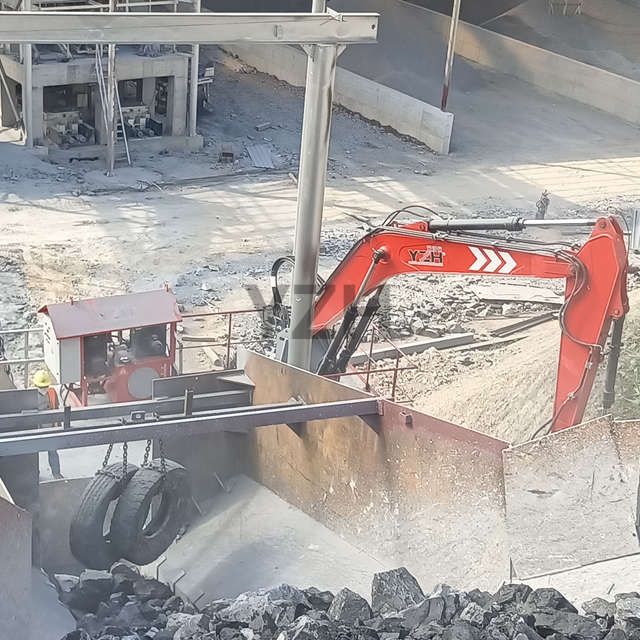

When excavating and processing rock, the primary stone crusher becomes blocked by larger pieces of boulders and it is precisely the pedestal boom system which solves the dangerous and laborious problem of clearing these boulders in the crusher. It is also used during primary crushing on frames. The relevant parameters chosen for the pedestal boom system depend on the given use: size and method, reaches, lifting capacity, the size of the hydraulic hammer and the output of the hydraulic unit.
Model No.
Unit
WHB710
Max. horizontal working radius
mm
9000
Max. vertical working radius
mm
7150
Min. vertical working radius
mm
2440
Max. working depth
mm
6740
Rotation
°
360
Static Type Pedestal Boom System
Static type pedestal boom system consists of the rotating upper part of the frame or a swivel console, lift boom, arm with a hydraulic hammer attached to it. The lower part of the frame is firmly fixed to a base. Power is supplied by a hydraulic unit. Static type pedestal boom system is used to break up and crush stone, ore, slag, concrete and other materials.
When excavating and processing rock, the primary stone crusher becomes blocked by larger pieces of boulders and it is precisely the pedestal boom system which solves the dangerous and laborious problem of clearing these boulders in the crusher. It is also used during primary crushing on frames. The relevant parameters chosen for the pedestal boom system depend on the given use: size and method, reaches, lifting capacity, the size of the hydraulic hammer and the output of the hydraulic unit.
