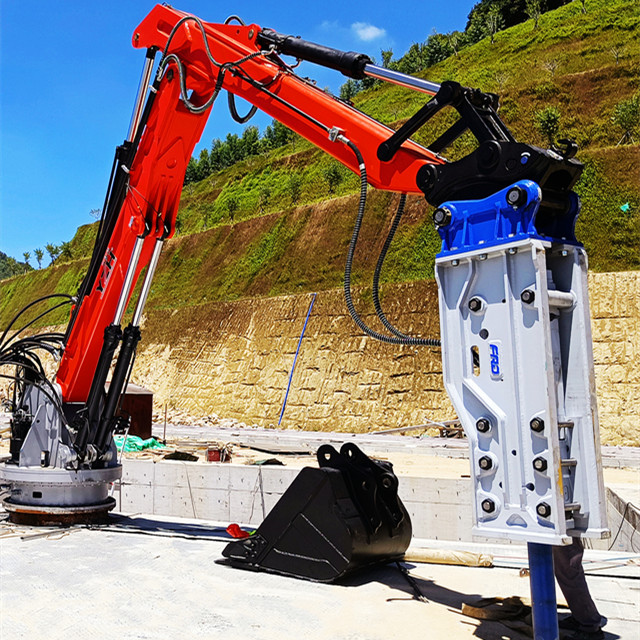

Pedestal Rockbreaker Boom System
In underground mining, stationary crushing and screening operations, fixed pedestalrock breaker boom systems are the superior choice for high productivity and safety in mining and quarrying due to their unique design and performance. In the BH series, the BHD750 fixed pedestal rockbreaker boom system sets the standard with the largest size and widest working range. This fixed pedestal rockbreaker boom system is equipped with excellent adaptability, can be flexibly matched with various types of carriers, and is equipped with an independent power unit with remote control function, which greatly simplifies the operation process, makes the work more convenient and efficient, and provides solid support for the construction under complex working conditions.
Features of BHD750 pedestal rockbreaker boom system

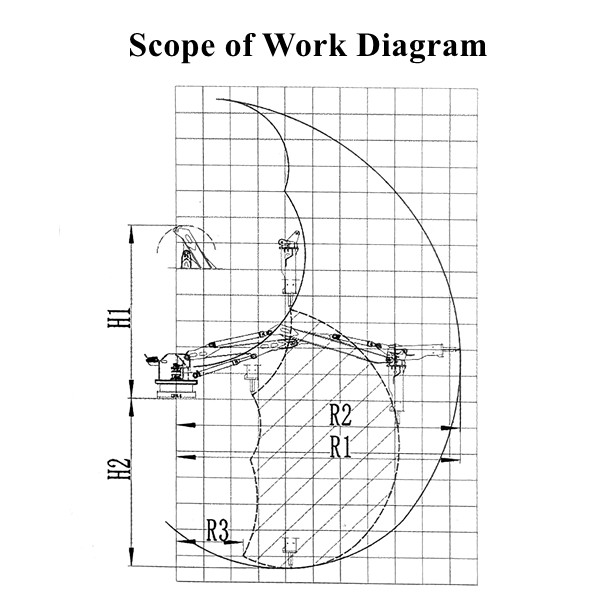

Large working radius: up to 10390mm, fixed pedestal rockbreaker boom system can easily cover a wider working area, reduce the number of equipment movements and greatly improve the working efficiency.
Wide adaptability: It can be perfectly matched with YZH1350, YZH1400, YZH1500, YZH1550 and other models of hammers, so that fixed pedestal rock breaker boom system can cope with different crushing tasks with ease.
Flexible slewing and standardized pipeline: It can realize 360-degree full-slewing operation without pipeline entanglement, and at the same time, the pipeline alignment is standardized, which reduces the probability of failure, prolongs the service life, and facilitates the maintenance in the later stage.
Advantages of BHD750 pedestal rockbreaker boom system
Large working radius, unrivaled coverage.The fixed pedestal rockbreaker boom system has a maximum horizontal working radius of 10390mm, which is a leading position among similar machines. This advantage allows the fixed pedestal rock breaker boom system to cover a wide working area without frequent movement, especially in large crushing plants, where it can work directly inside the jawbreaker, giving perfect play to the advantage of the arm length, reducing the adjustment time of the fixed pedestal rock breaker boom system, significantly improving the crushing efficiency per unit of time, and fundamentally solving the problem of interruption of operation caused by the limited coverage of traditional equipment.
Wide range of adaptability to meet diversified crushing needs.The fixed pedestalrock breaker boom system shows strong compatibility and can be precisely matched with YZH1350, YZH1400, YZH1500, YZH1550 and other types of hammers. Whether dealing with hard rocks or medium-hardness ores, the fixed pedestal rock breaker boom system can quickly switch operation modes by replacing the appropriate hammers to meet the needs of different types of minerals and different crushing granularity, saving the user's equipment investment costs, improving the utilization rate of the fixed pedestal rock breaker boom system, and adapting to the changing production tasks.
Precision Slewing Design, Stability, Durability and More Hassle-Free. The slewing cylinder adopts a precise design based on the principle of mechanics, and by optimizing the structural layout and parameters, it effectively disperses the stress generated during slewing, and significantly reduces the load on the slewing arm. With the 360-degree full-swing function, it realizes the operation without dead angle and ensures that the pipeline is not entangled at the same time. The standardized pipeline alignment design not only reduces wear and tear and prolongs the service life of the fixed pedestal rock breaker boom system, but also makes post maintenance more convenient, reduces downtime for maintenance, and ensures continuous and stable production.
Applications of BHD750 fixed pedestal rockbreaker boom system
In the field of underground mining, with flexible operating performance and adaptability, it can easily cope with complex geological conditions and narrow space, and efficiently complete the ore mining; in the quarry, it provides stable arm support for the crushing equipment, and improves the overall mobility; in the limestone mines, coal mines, iron ore mines and other scenarios, whether it is crushing ores or waste processing, fixed pedestal rock breaker boom system can improve production and reduce costs with its powerful performance. From mineral mining to material processing, all-round demonstration of the practical value of the equipment, help enterprises to realize the economic benefits and safe production of double enhancement.

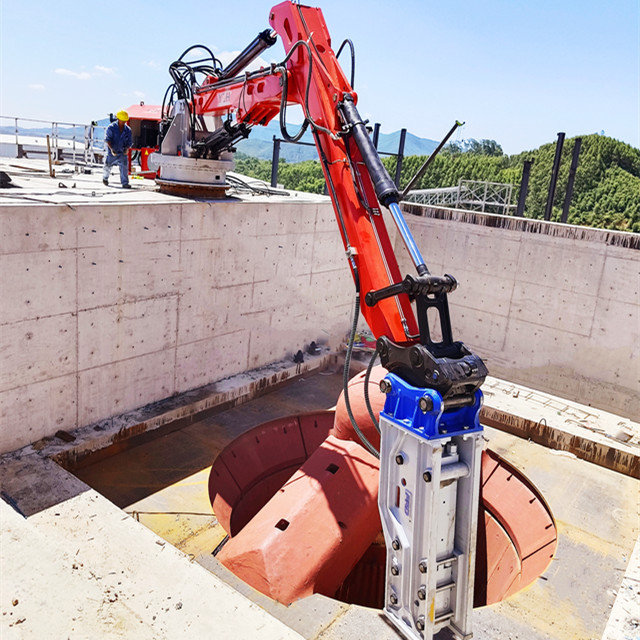

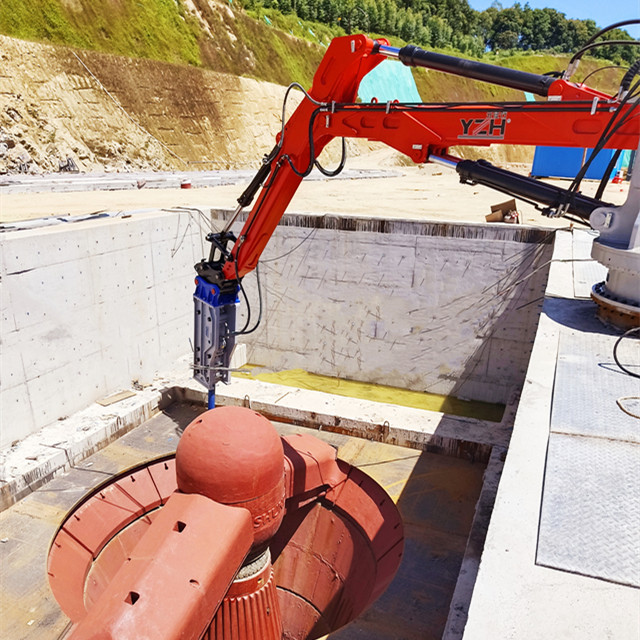

In the project of Ganchong Limestone Mine, BHD750 fixed pedestal rockbreaker boom system shows strong adaptability and practicality, and becomes a powerful assistant for limestone crushing operation. In this project, the material is limestone, with a hardness of ≤17 on the Platts scale, and the largest block size is 1000mm, which needs to be crushed to less than 500mm. With a maximum horizontal working radius of 10390mm, the BHD750 fixed pedestal rock breaker boom system is able to cover a wide working area without frequent movement, and it can easily cope with a wide range of limestone crushing tasks, reduce the time for adjusting the equipment, and greatly improve the operational efficiency. This reduces equipment adjustment time and greatly improves operational efficiency. The fixed pedestal rock breaker boom system is adaptable to a variety of models of hammers, which can accurately match the hardness of limestone, and efficiently crush large limestone of 1000mm to less than 500mm to meet the crushing requirements of the project. At the same time, the 360-degree full-swing and flexible swing performance allows the fixed pedestal rock breaker boom system to cope with the mining environment freely, even in areas with limited space, it can still penetrate into the workplace by adjusting its attitude to ensure that every piece of over-sized limestone can be dealt with in a timely manner. The precise rotary design and standardized pipeline layout ensure the stable operation of the fixed pedestal rock breaker boom system under high-intensity operation, reduce the downtime and provide strong support for the continuous production of the project, giving full play to the important role of auxiliary crushing, and helping the project to move forward efficiently.
