BHA300
YZH
Pedestal Rock Breaker System
The BHA300 of YZH's BH series of pedestal rock breaker systems has inherited the stabilizing genes of the B series' straight-arm design, which ensures excellent rigidity and stability during operation. The most striking feature of the BHA300 pedestal rock breaker system is its 360-degree swivel function, which completely breaks through the limitations of the traditional straight-armed arm and allows it to cover a wider area flexibly. In addition, BHA300 pedestal rock breaker system adopts an integrated arm beam and super strong boom structure, which greatly enhances the overall load carrying capacity and deformation resistance. In the key connection parts, it chooses thickened pins and special heat-treated sleeves, which not only significantly improves the high-precision performance of the equipment, but also effectively prolongs its service life, making it an efficient and reliable automation choice for heavy-duty scenarios.
Features of pedestal rock breaker system
1.360° Full Slewing Base: Round slewing base with reinforcement reinforcement, strong support, can realize 360 degrees large range slewing, breaking through the work limitations.
2.2530mm straight arm: Adopting straight arm design, the working depth is up to 2530mm, which can work efficiently in complex areas.
3. Compact and adaptable design: relatively small size, can be flexibly integrated into a variety of working environments.
4. Multiple control options: support a variety of control methods to meet the operational needs of different scenarios.
Advantages of pedestal rock breaker system
Firstly, pedestal rock breaker system significantly reduces downtime loss and guarantees production continuity. Data shows that in traditional production, the downtime caused by crusher feed clogging accounts for 5-20% of the total operating time, which means that 5%-20% of the annual production will be lost, which has a huge impact on the economic benefits of the mine. YZH pedestal rock breaker system, with its precise maneuvering ability and quick response mechanism, can quickly intervene when a clog occurs, removing the clog efficiently and dramatically reducing downtime. This advantage directly improves the operation efficiency of the crushing line, makes the production process more coherent, and reduces the production loss caused by downtime from the root.
Further, it reduces comprehensive operating costs and highlights long-term economy. In terms of cost control, the advantages of pedestal rock breaker system are very significant: on the one hand, rock breaker system replaces the manpower input required for manual removal, which reduces the long-term labor cost; on the other hand, its precise operation mode can reduce the damage of the equipment caused by improper manual operation, and reduce the maintenance cost. In addition, the energy consumption design of the rock breaker system is more reasonable, compared with the power waste that may occur during manual operation (such as equipment idling and waiting), it can effectively save power and other energy consumption. At the same time, the structure of the pedestal rock breaker system is stable, simple maintenance, routine maintenance costs are low, long-term use, can save a lot of manpower, power and equipment maintenance costs for the mine, the economic advantages gradually come to the fore.
Application of pedestal rock breaker system

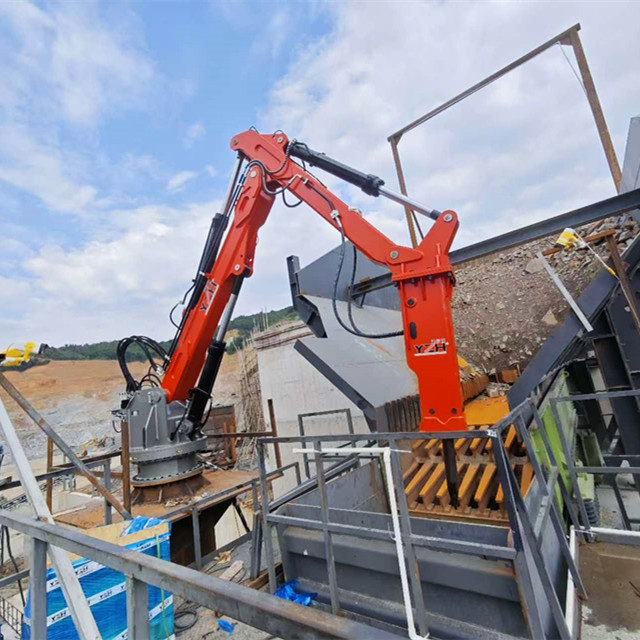

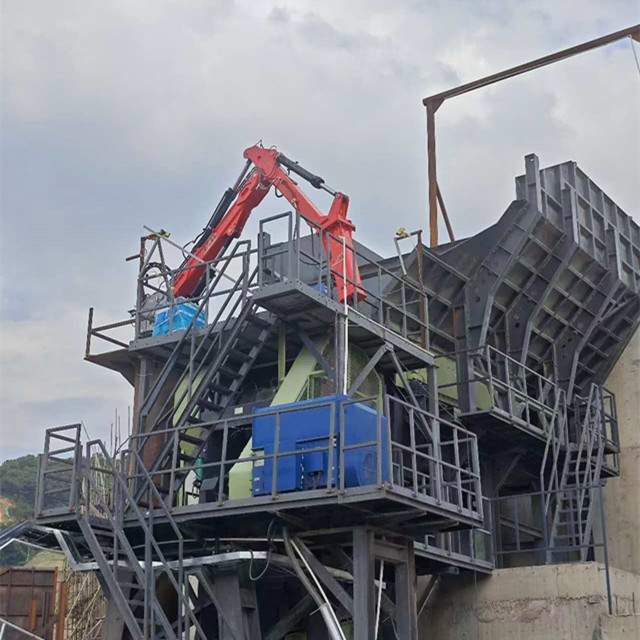

YZH BHA300 pedestal rock breaker system has demonstrated its ability to withstand the rigors of underground and open screen grizzly applications, and has become a key piece of equipment in the primary crushing process. The primary crushing process in the grizzly screen is characterized by high continuity and harsh conditions, requiring continuous response to a variety of complex situations.

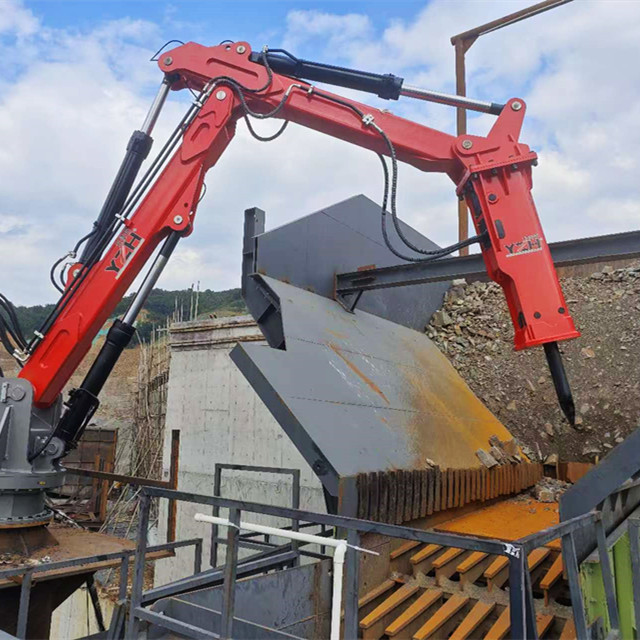

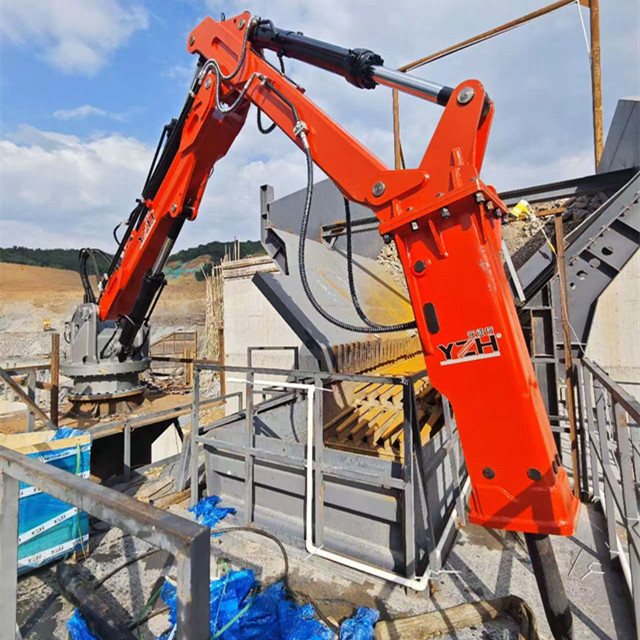

YZH's BHA300 pedestal rock breaker arm system is designed to handle a wide range of oversized materials of all sizes and quantities, with a wide arm cross-section, oversized pins, and reinforced high-strength steel plates that are able to withstand high levels of straight-line and side-to-side scraping. These are designed to cope with the complex loads on the arm and work consistently in both underground and above ground environments. In primary crushing operations at the grizzly screen, YZH BHA300 pedestal rock breaker system plays an irreplaceable role. When the sand and gravel aggregate is blocked at the grizzly screen, YZH BHA300 pedestal rock breaker system can accurately and efficiently crush the large boulders into compliant crushed stones that can pass through the grizzly screen, ensuring the continuity of the primary crushing process and laying a good foundation for the subsequent production process.
Pedestal Rock Breaker System
The BHA300 of YZH's BH series of pedestal rock breaker systems has inherited the stabilizing genes of the B series' straight-arm design, which ensures excellent rigidity and stability during operation. The most striking feature of the BHA300 pedestal rock breaker system is its 360-degree swivel function, which completely breaks through the limitations of the traditional straight-armed arm and allows it to cover a wider area flexibly. In addition, BHA300 pedestal rock breaker system adopts an integrated arm beam and super strong boom structure, which greatly enhances the overall load carrying capacity and deformation resistance. In the key connection parts, it chooses thickened pins and special heat-treated sleeves, which not only significantly improves the high-precision performance of the equipment, but also effectively prolongs its service life, making it an efficient and reliable automation choice for heavy-duty scenarios.
Features of pedestal rock breaker system
1.360° Full Slewing Base: Round slewing base with reinforcement reinforcement, strong support, can realize 360 degrees large range slewing, breaking through the work limitations.
2.2530mm straight arm: Adopting straight arm design, the working depth is up to 2530mm, which can work efficiently in complex areas.
3. Compact and adaptable design: relatively small size, can be flexibly integrated into a variety of working environments.
4. Multiple control options: support a variety of control methods to meet the operational needs of different scenarios.
Advantages of pedestal rock breaker system
Firstly, pedestal rock breaker system significantly reduces downtime loss and guarantees production continuity. Data shows that in traditional production, the downtime caused by crusher feed clogging accounts for 5-20% of the total operating time, which means that 5%-20% of the annual production will be lost, which has a huge impact on the economic benefits of the mine. YZH pedestal rock breaker system, with its precise maneuvering ability and quick response mechanism, can quickly intervene when a clog occurs, removing the clog efficiently and dramatically reducing downtime. This advantage directly improves the operation efficiency of the crushing line, makes the production process more coherent, and reduces the production loss caused by downtime from the root.
Further, it reduces comprehensive operating costs and highlights long-term economy. In terms of cost control, the advantages of pedestal rock breaker system are very significant: on the one hand, rock breaker system replaces the manpower input required for manual removal, which reduces the long-term labor cost; on the other hand, its precise operation mode can reduce the damage of the equipment caused by improper manual operation, and reduce the maintenance cost. In addition, the energy consumption design of the rock breaker system is more reasonable, compared with the power waste that may occur during manual operation (such as equipment idling and waiting), it can effectively save power and other energy consumption. At the same time, the structure of the pedestal rock breaker system is stable, simple maintenance, routine maintenance costs are low, long-term use, can save a lot of manpower, power and equipment maintenance costs for the mine, the economic advantages gradually come to the fore.
Application of pedestal rock breaker system
YZH BHA300 pedestal rock breaker system has demonstrated its ability to withstand the rigors of underground and open screen grizzly applications, and has become a key piece of equipment in the primary crushing process. The primary crushing process in the grizzly screen is characterized by high continuity and harsh conditions, requiring continuous response to a variety of complex situations.
YZH's BHA300 pedestal rock breaker arm system is designed to handle a wide range of oversized materials of all sizes and quantities, with a wide arm cross-section, oversized pins, and reinforced high-strength steel plates that are able to withstand high levels of straight-line and side-to-side scraping. These are designed to cope with the complex loads on the arm and work consistently in both underground and above ground environments. In primary crushing operations at the grizzly screen, YZH BHA300 pedestal rock breaker system plays an irreplaceable role. When the sand and gravel aggregate is blocked at the grizzly screen, YZH BHA300 pedestal rock breaker system can accurately and efficiently crush the large boulders into compliant crushed stones that can pass through the grizzly screen, ensuring the continuity of the primary crushing process and laying a good foundation for the subsequent production process.

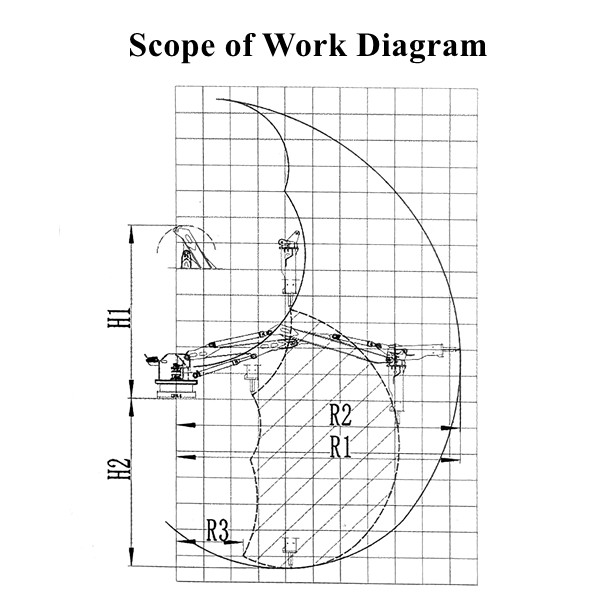

Model No | Unit | BHA300 |
Boom weight (without hammer) | kg | 1912 |
Max.Horizontal working radius(R1) | mm | 4880 |
Max.Vertical working radius(R2) | mm | 3340 |
Min.Vertical working radius(R3) | mm | 1610 |
Max.Height (H1) | mm | 3340 |
Max.working depth (H2) | mm | 2530 |
Rotation | ° | 360 |
Power of Hydraulic Power Unit | kw | 55/75 |
Model No | Unit | BHA300 |
Boom weight (without hammer) | kg | 1912 |
Max.Horizontal working radius(R1) | mm | 4880 |
Max.Vertical working radius(R2) | mm | 3340 |
Min.Vertical working radius(R3) | mm | 1610 |
Max.Height (H1) | mm | 3340 |
Max.working depth (H2) | mm | 2530 |
Rotation | ° | 360 |
Power of Hydraulic Power Unit | kw | 55/75 |
