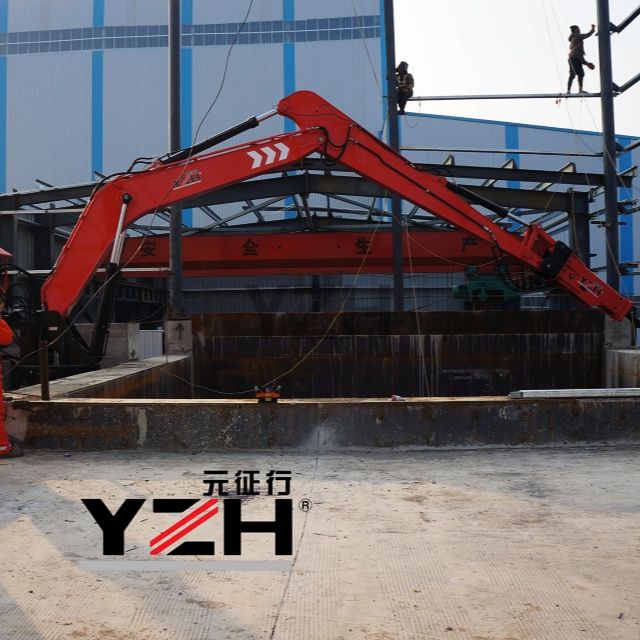

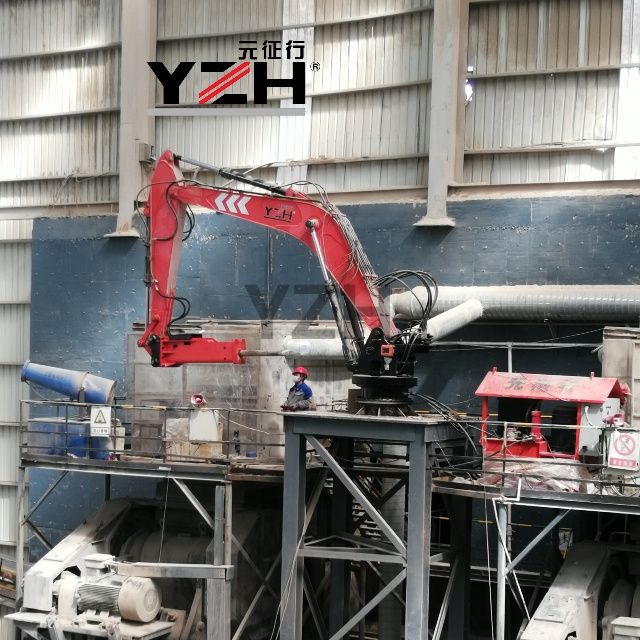

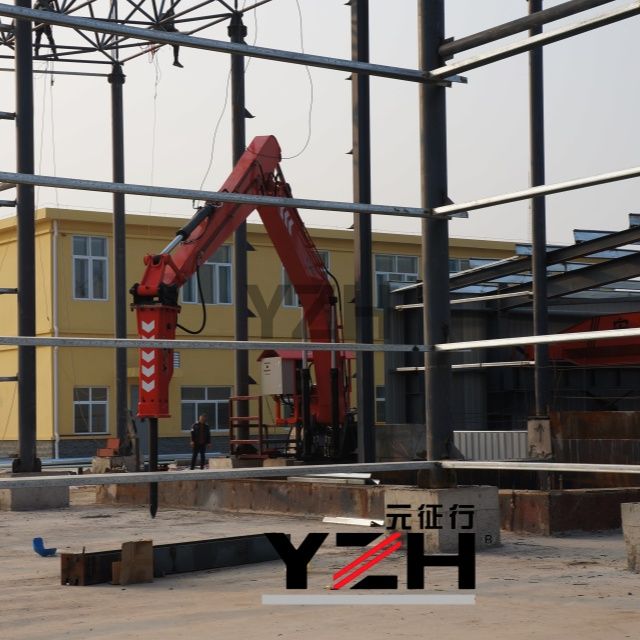

The nature of the Grizzly application is extremely demanding, as it is a continuous primary crushing process. The
Fixed Rockbreaker Boom System YZH adopts a wide arm cross-section, oversized pins, and reinforced high-strength steel plate design. The Fixed Rockbreaker Boom System YZH has high straight and side rake functions, and combines various sizes and quantities of oversized sizes. All of these are designed to handle complex loads on the boom, whether below or above the ground.
The WH series Fixed Rockbreaker Boom System YZH has the following characteristics:
1.Rectangular tube design makes the steel structure more sturdy
2.Strengthening the fulcrum, oversized pin shaft, and heat-treated steel lining ensure excellent strength and accuracy
3.Special hydraulic cylinder with buffer device. Ultra large diameter piston and piston rod ensure durability for heavy-duty operation in harsh environments
4.360 ° rotation
5.Steel structure foundation connectors, concrete foundation embedded parts
Model No
Unit
WHE1500
Boom weight
kg
18000
Max Horizontal Working radius
mm
17160
Max Vertical working radius
mm
14530
Min Vertical working radius
mm
1250
Rotation
°
360
Fixed Rockbreaker Boom System YZH
The nature of the Grizzly application is extremely demanding, as it is a continuous primary crushing process. The
Fixed Rockbreaker Boom System YZH adopts a wide arm cross-section, oversized pins, and reinforced high-strength steel plate design. The Fixed Rockbreaker Boom System YZH has high straight and side rake functions, and combines various sizes and quantities of oversized sizes. All of these are designed to handle complex loads on the boom, whether below or above the ground.
The WH series Fixed Rockbreaker Boom System YZH has the following characteristics:
1.Rectangular tube design makes the steel structure more sturdy
2.Strengthening the fulcrum, oversized pin shaft, and heat-treated steel lining ensure excellent strength and accuracy
3.Special hydraulic cylinder with buffer device. Ultra large diameter piston and piston rod ensure durability for heavy-duty operation in harsh environments
4.360 ° rotation
5.Steel structure foundation connectors, concrete foundation embedded parts
