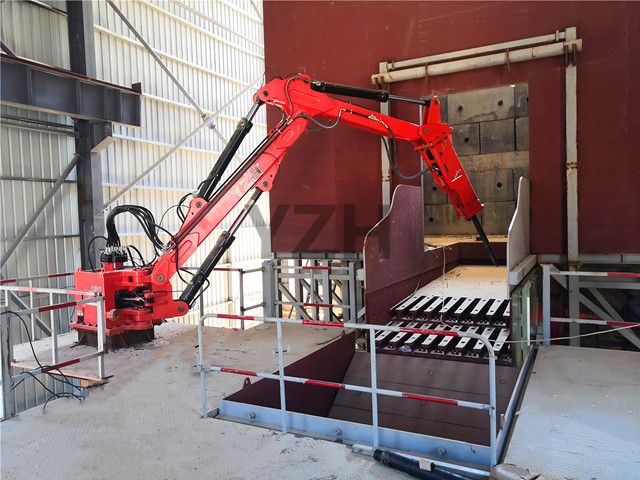

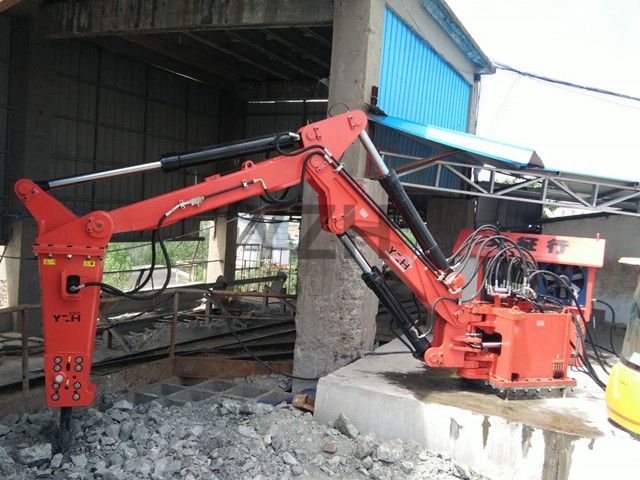

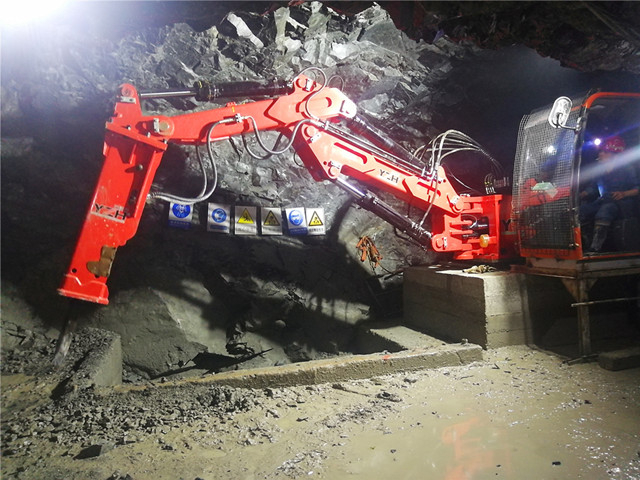

Fixed hydraulic boom system consists of pedestal boom, hydraulic hammer, hydraulic power unit and operating control. It can quickly eliminate crusher blocks and provide smooth material flow.
Fixed hydraulic boom system is equipped with electric motor drive and remote control, which makes it convenient and reduces the cost. is equipped with electric motor drive and remote control, which makes it convenient and reduces the cost.The suitable location of equipment enables you to reach the crusher and hopper at the same time. We provide customized solution and optional equipment.
Model No.
BBN450
Max. Horizontal working radius（R1）
6500mm
Max. Vertical working radius（R2）
5430mm
Min. Vertical working radius（R3）
2235mm
Max. working depth（H2）
3370mm
Rotation
170°
Fixed Hydraulic Boom System
Fixed hydraulic boom system consists of pedestal boom, hydraulic hammer, hydraulic power unit and operating control. It can quickly eliminate crusher blocks and provide smooth material flow.
Fixed hydraulic boom system is equipped with electric motor drive and remote control, which makes it convenient and reduces the cost. is equipped with electric motor drive and remote control, which makes it convenient and reduces the cost.The suitable location of equipment enables you to reach the crusher and hopper at the same time. We provide customized solution and optional equipment.
