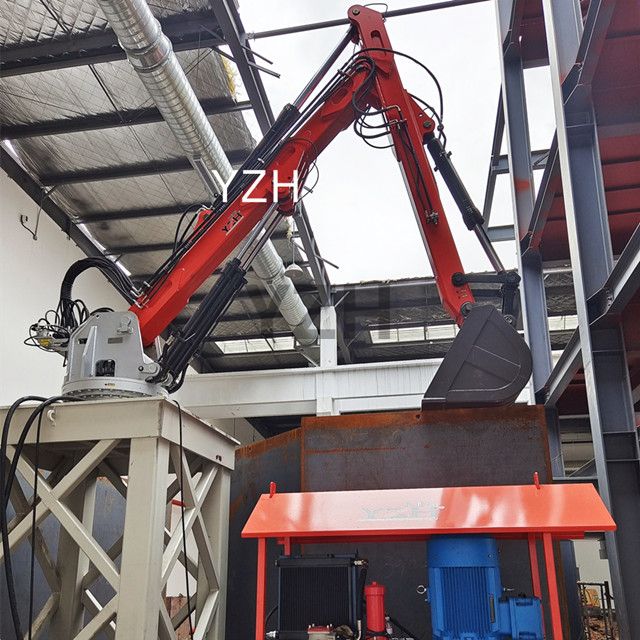

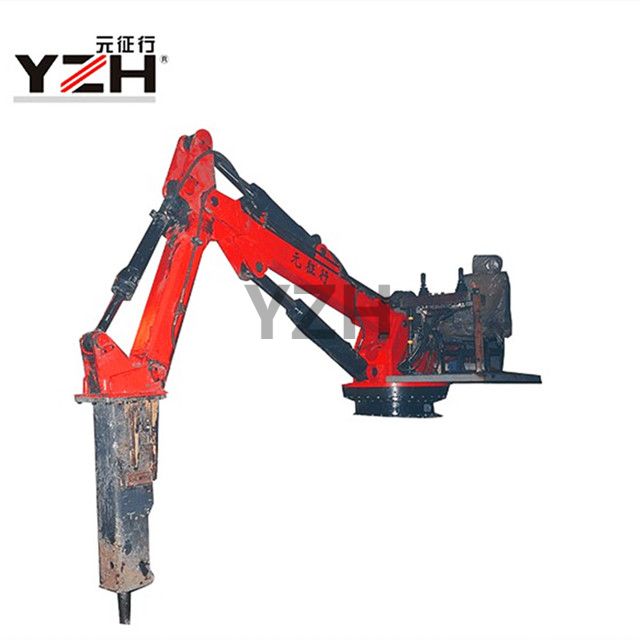

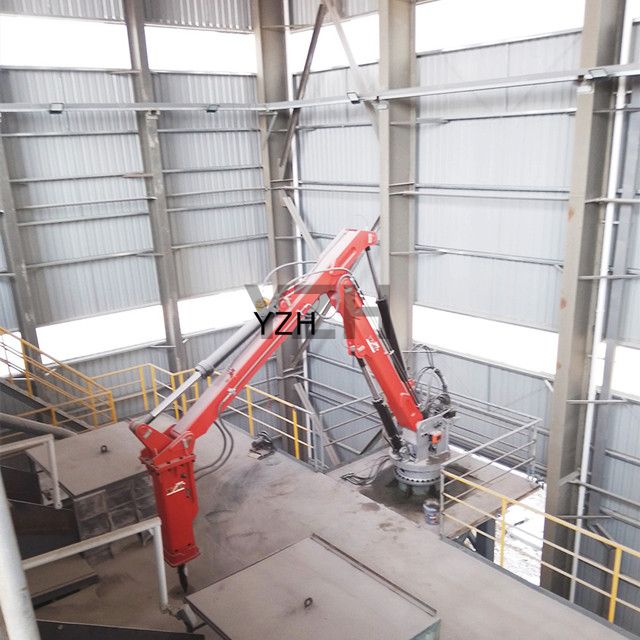

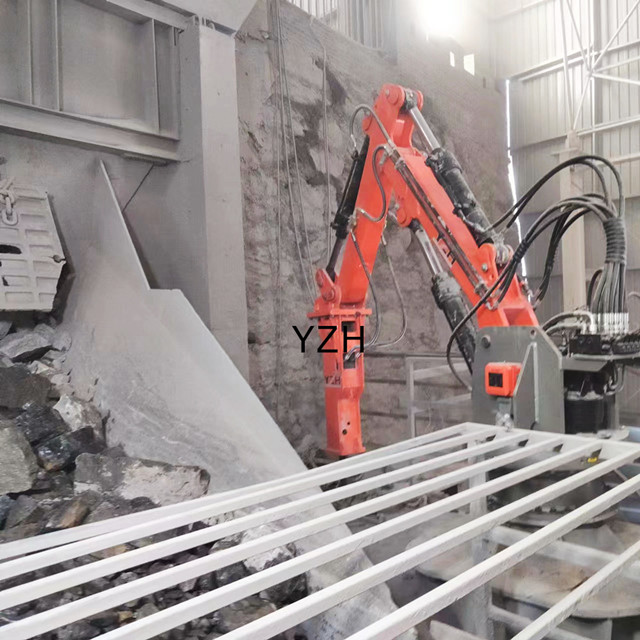

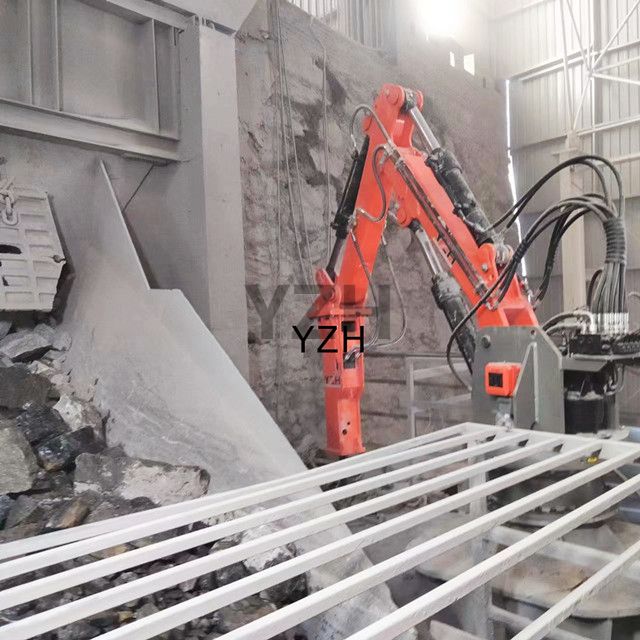

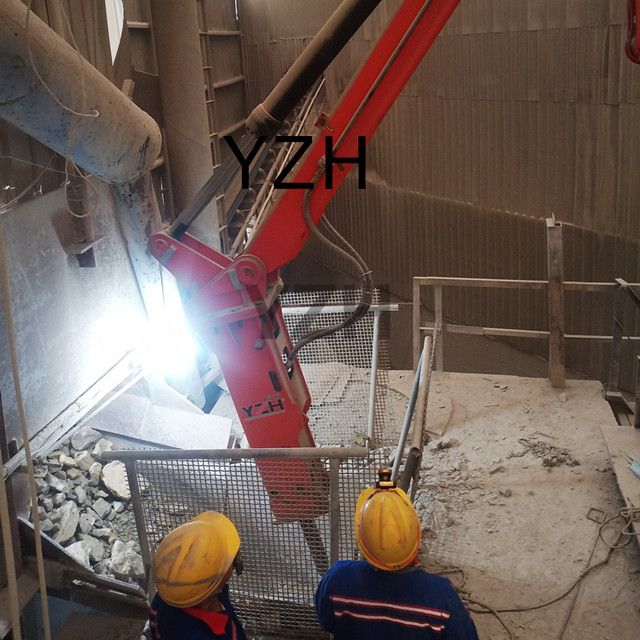

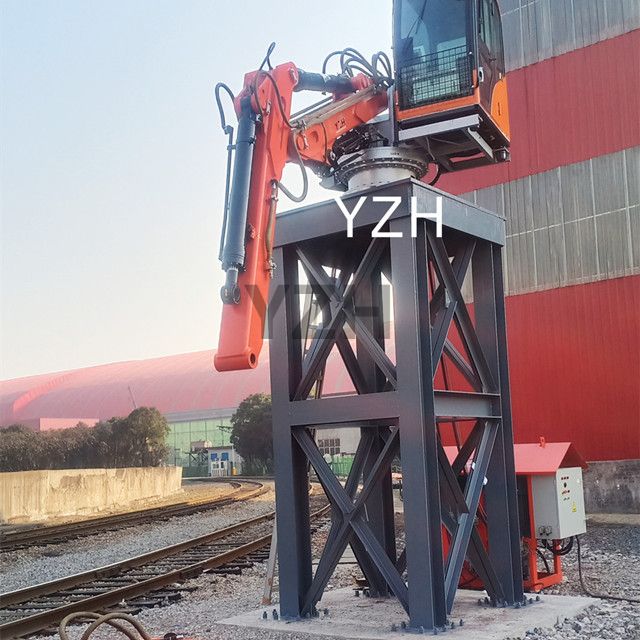

fixed grizzly rock breaker boom
The fixed grizzly rock breaker boom is a heavy-duty equipment widely used in mining, tunnel construction, and other material-breaking operations. With its high-performance capabilities, intelligent control systems, and emphasis on safety, it has become a key asset in modern industrial applications.
Hydraulic Pilot Proportional Control
Provides precise and smooth motion control through the hydraulic system.
Simple operation, suitable for near-field control.
Wired Remote Digital Control
Allows remote digital operation through wired connections, offering stable and reliable signals.
Operators can control the equipment from a safe distance.
Wireless Remote Digital Control
Utilizes wireless signals for flexible control, ideal for complex work conditions.
Operators can control the boom from a safe distance, further enhancing safety.
Optical Fiber Signal Transmission for Long-Distance Control
Suitable for extreme environments (e.g., underground mines hundreds of meters deep).
Operators on the surface can remotely control the machine to perform underground crushing operations.
Improves personnel safety by reducing exposure to harmful environments like dust and toxic gases, thus lowering occupational health risks.
These intelligent control options make the fixed grizzly rock breaker boom adaptable to various complex working environments, providing operators with an efficient and safe user experience.
| Model No | Unit | BHB350 |
| Boom weight | kg | 3030 |
| Max Horizontal working radius | mm | 5890 |
| Max Vertical working radius | mm | 3830 |
| Min Vertical working radius | mm | 1790 |
| Rotation | ° | 360 |
