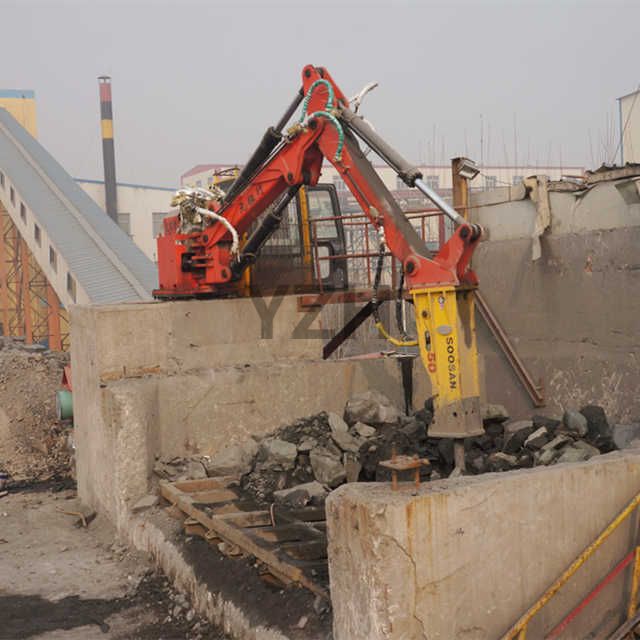

Rock Breaker Boom System for Jaw Crusher and Impact Crusher
Jaw crushers and impact crushers are most often fed from a rock box using a vibratory feeder. So yzh's high strength rock breaker boom system should be mounted on crushing line steel structure, concrete foundations or on separate supporting column to break excessively large stones or to unblock the transport route to crushers.
Rock breaker boom system is mainly used to reduce oversized boulders and rake all rock materials into the crusher, and to be able to reach into the crusher mouth or hopper to assist with processing and clearing jams. These systems offer the widest range of boom reach and breaker sizes in the industry, in a word, yzh rock breaker boom system is a simple, cost-effective and safe breaking solution.
Model No.
Unit
BB600
Max. horizontal working radius
mm
8430
Max. vertical working radius
mm
6330
Min. vertical working radius
mm
2300
Max. working depth
mm
5810
Rotation
°
170
