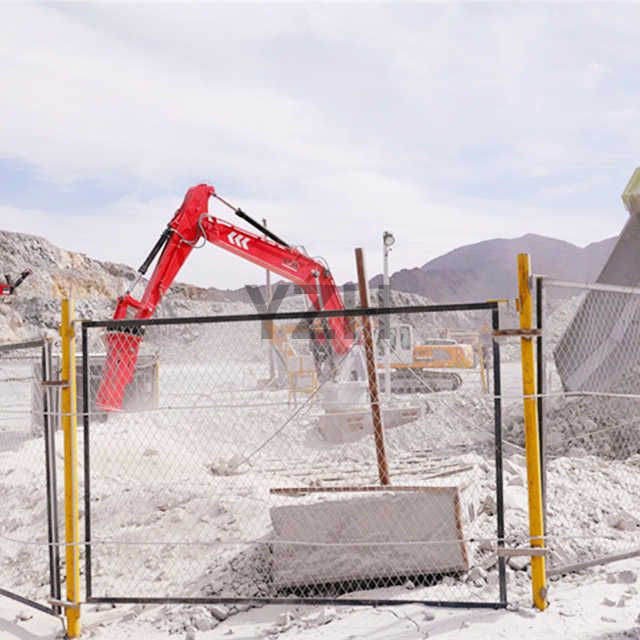

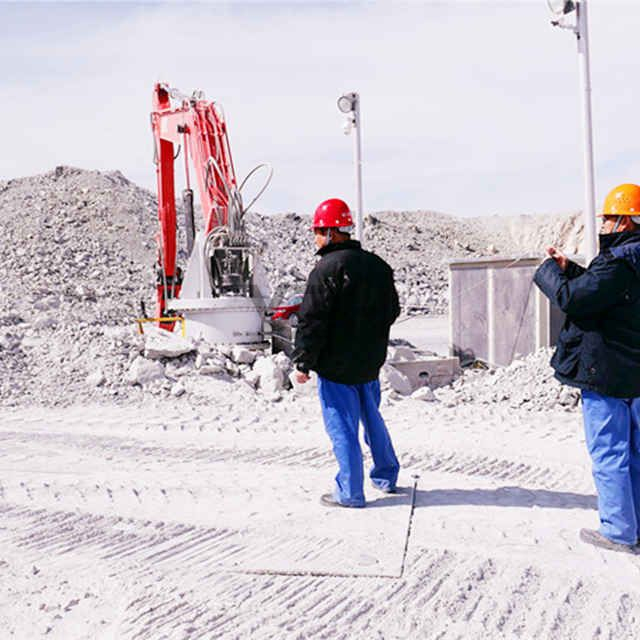

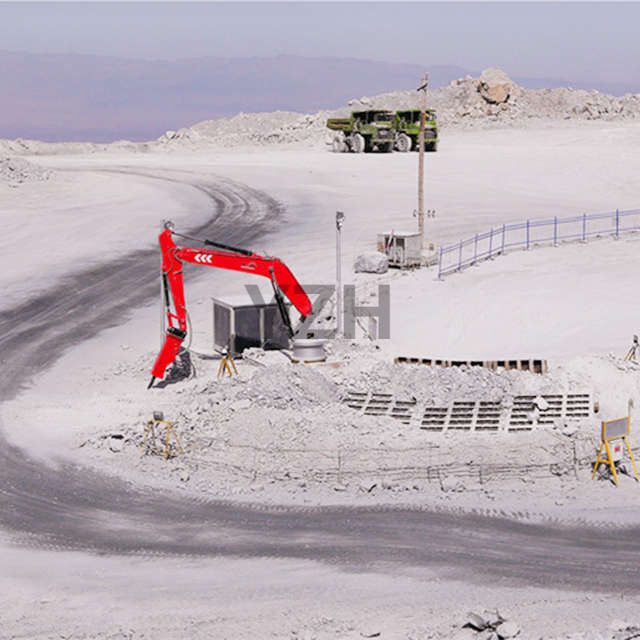

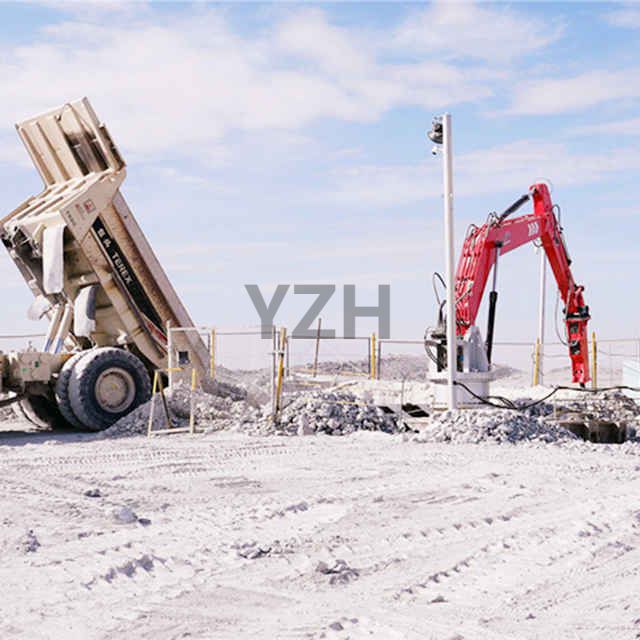

Stationary Rock Breaker System for Underground or Opencast Grizzly Screen
Stationary rock breaker system consists of pedestal boom, hydraulic hammer, hydraulic pressure station and control system. It can be applied to underground or open grizzly screen. Grizzly applications are extremely harsh by nature, which is a continuous primary crushing process. YZH's grizzly rock breaker system is designed with wide boom cross sections, extra large pins and reinforced high tensile steel plates. YZH rock breaker system is subject to high degrees of in-line and side raking, combined with various sizes and amounts of oversize. All designed to handle complex loading to the boom, whether it below or above ground.
Model No.
Unit
WHC970
Max. horizontal working radius
mm
11925
Max. vertical working radius
mm
9605
Min. vertical working radius
mm
2485
Max. working depth
mm
8156
Rotation
°
360
