YZH Rock Breaker System
Applications of The YZH Rock Breaker System
Gyratory Crusher / Jaw Crusher
Big jobs need big stationary pedestal booms system and hydraulic breakers. YZH’s wide range of gyratory pedestal breaker booms allow full breaker coverage within the rock box and mouth of the Crusher. YZH’s complete line of large hydraulic hammers are designed specifically for gyratories to quickly eliminate any bridging or clogging, restoring consistent material flow to the crusher.
The gyratory crusher is the mainstay of medium to large duty crushing plants. Typically material is brought to the crusher by large haulage trucks and dumped into a rock box. The gyratory crusher is located at the bottom of the rock box. Material is crushed between the eccentrically mounted rotating crushing cone and the fixed, tapered crushing throat.

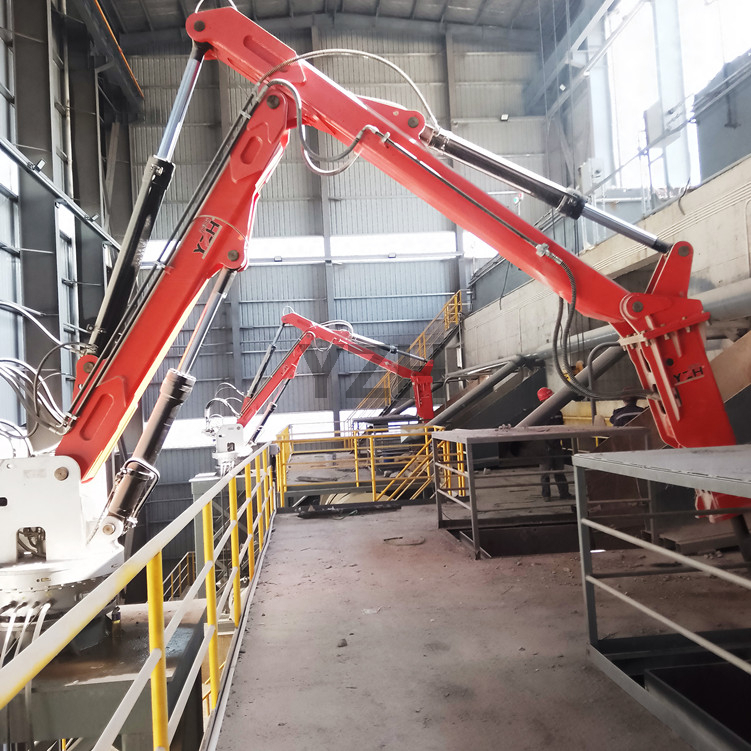

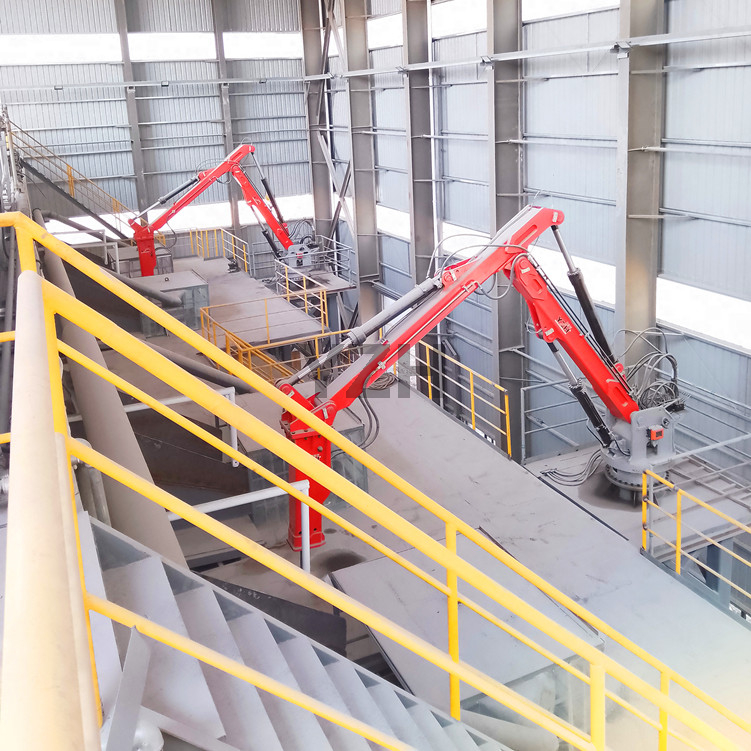

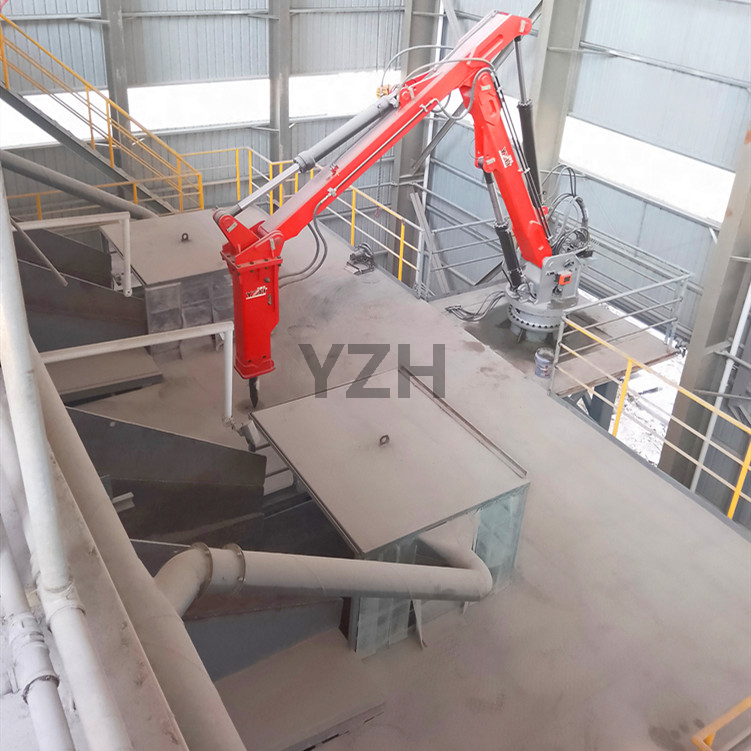

The stationary rockbreaker booms system is typically mounted in-line with the upper support of the rotating cone called the spider. This provides superior maneuverability of the hydraulic pedestal rockbreaker boom systems within the gyratory throat. The boom is typically sized to allow full range of motion over the working range of the rock box. The reach should be deep enough to allow the breaker to enter the gyratory for material breaking and concave removal applications.
