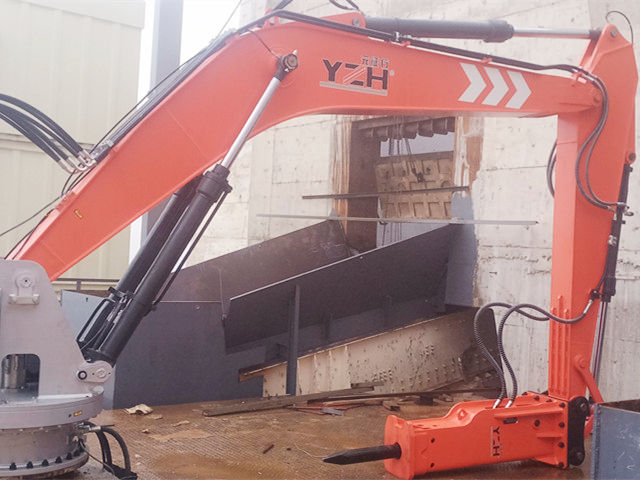

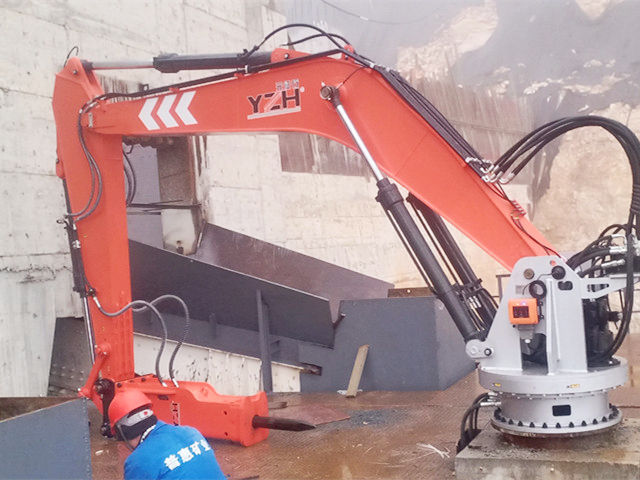

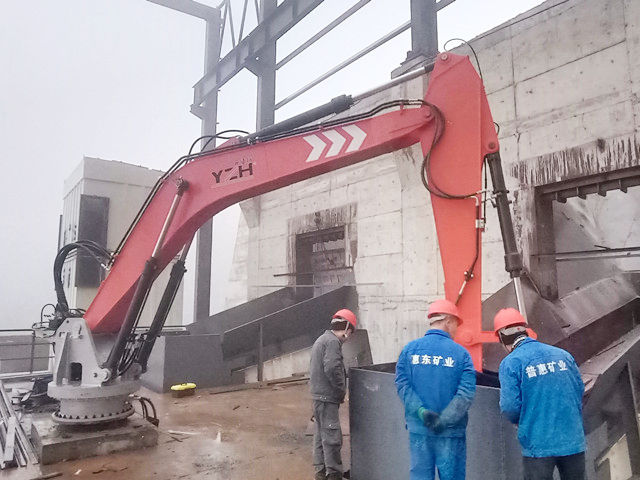

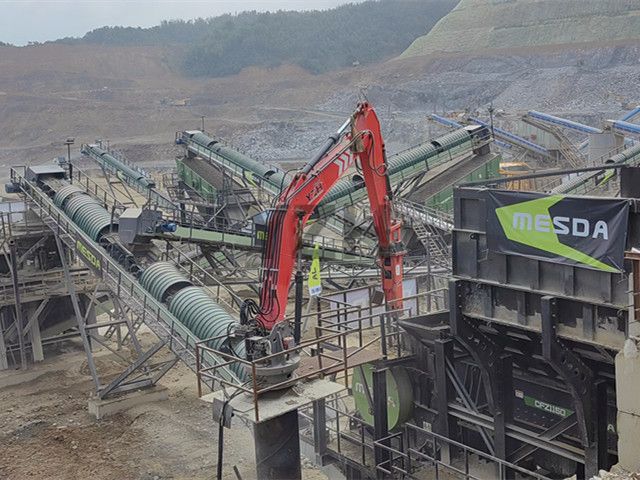

YZH fixed boom includes small range, medium range and large range. YZH small range fixed boom is light-weight, multi-purpose breaker units typically used in quarries, next to primary crushers, to clear any blockages and bridging in stationary crushing plants as well as mobile crushers.
YZH medium range fixed boom is designed for heavier open-pit and underground applications. Quarries and mines typically use yzh medium range boom to improve the productivity of stationary crushers by feeding material into the crusher and by raking the hopper area.
YZH large range fixed boom is specially designed primarily for mining markets, although can be used across a range of applications. They're proven designs based on years of experience, research and listening to customer feedback, and are all productive, efficient and reliable.
Model No.
WHB710
Max. horizontal working radius（R1）
9000mm
Max. vertical working radius（R2）
7150mm
Min. vertical working radius（R3）
2440mm
Max. working depth（H2）
6740mm
Rotation
360°
YZH Fixed Boom
YZH fixed boom includes small range, medium range and large range. YZH small range fixed boom is light-weight, multi-purpose breaker units typically used in quarries, next to primary crushers, to clear any blockages and bridging in stationary crushing plants as well as mobile crushers.
YZH medium range fixed boom is designed for heavier open-pit and underground applications. Quarries and mines typically use yzh medium range boom to improve the productivity of stationary crushers by feeding material into the crusher and by raking the hopper area.
YZH large range fixed boom is specially designed primarily for mining markets, although can be used across a range of applications. They're proven designs based on years of experience, research and listening to customer feedback, and are all productive, efficient and reliable.
