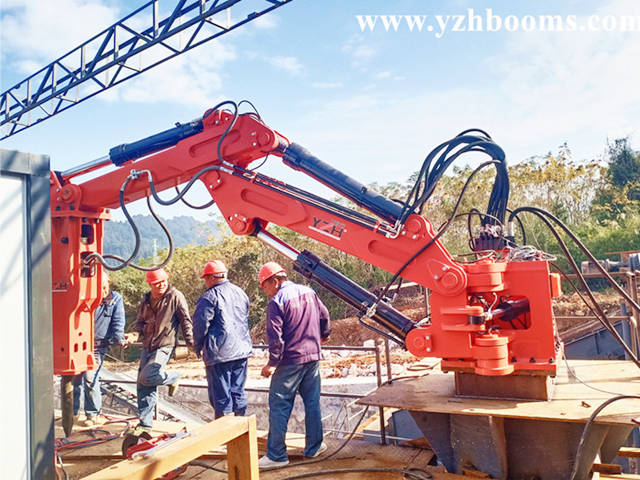

Static Type Rockbreaker Boom System
Static type rockbreaker boom system consists of a sturdy boom with assembly framework, hydraulic hammer, power pack and radio remote-control devices.
1. It can quickly eliminate crusher blocks and provide smooth material flow.
2. It will increase in work productivity by reducing the downtime of the crusher.
3. It is equipped with electric motor drive and remote control.
4. The suitable location of equipment enables you to reach the crusher and hopper at the same time.
We provide customized solution and optional equipment.
| Model No. | BA300 |
| Max. Horizontal working radius（R1） | 4880mm |
| Max. Vertical working radius（R2） | 3270mm |
| Min. Vertical working radius（R3） | 1570mm |
| Max. working depth（H2） | 3170mm |
| Rotation | 170° |
