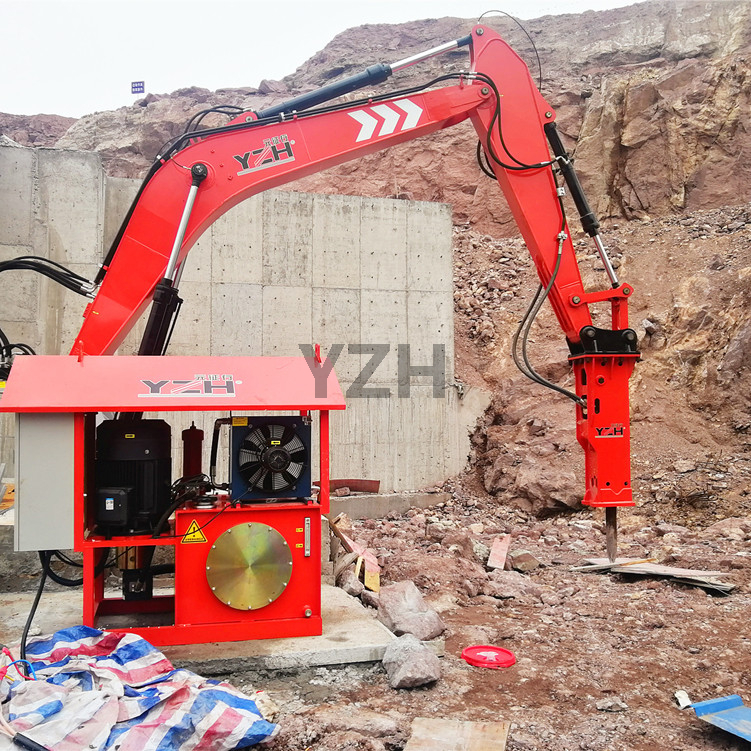

YZH Fixed Rockbreakers
Stationary rockbreakers work in conjunction with a grizzly, which sizes material before it enters the ore pass. When it comes to large, unwieldy rocks, mines and quarries deploy rockbreakers, which can be visualized as the big guns that serve as a kind of first assault in the ground war between rock and machine. After ore is blasted loose from the host rock, it comes in a variety of shapes and sizes, never uniform. Surface operations typically employ jaw crushers or gyratory crushers, where material is brought to the crusher by large haul trucks and dumped into a rock box.
C Series | Unit | YZH-C285N |
Weight | Kg | 1320 |
Maximum Reach | m | 4.7 |
Nominal Horizontal Reach (H) | m | 3.2 |
Nominal Vertical Reach (V) | m | 3.3 |
Swing° | ° | 170 |
Base Diameter | m | 0.69X0.93 |
Recommended Hydraulic Hammer (Chisel Size) | mm | 85,100 |
Recommended Power Packs |
| HA 37 |
