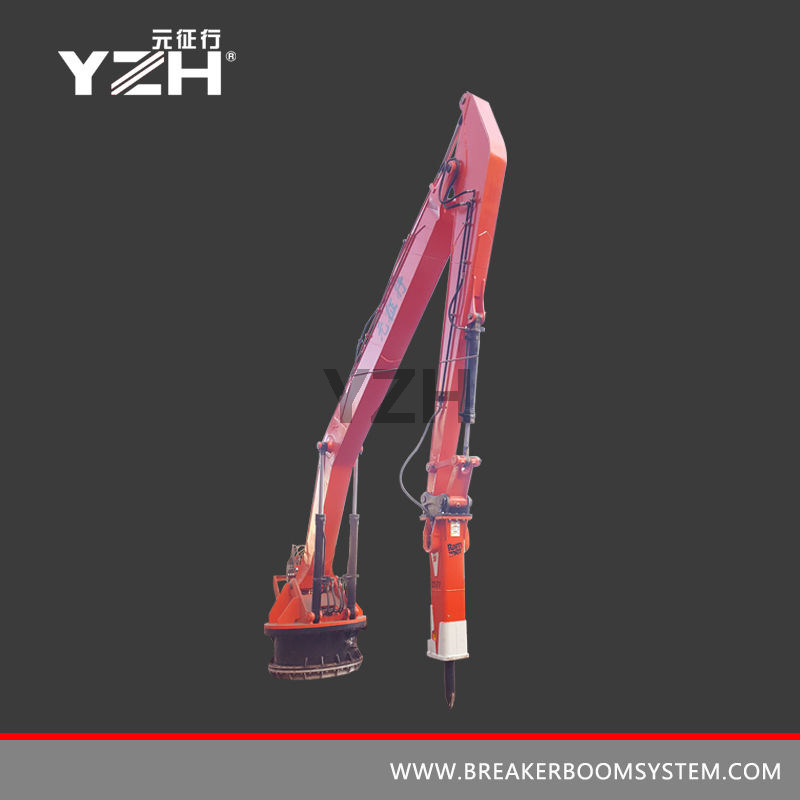

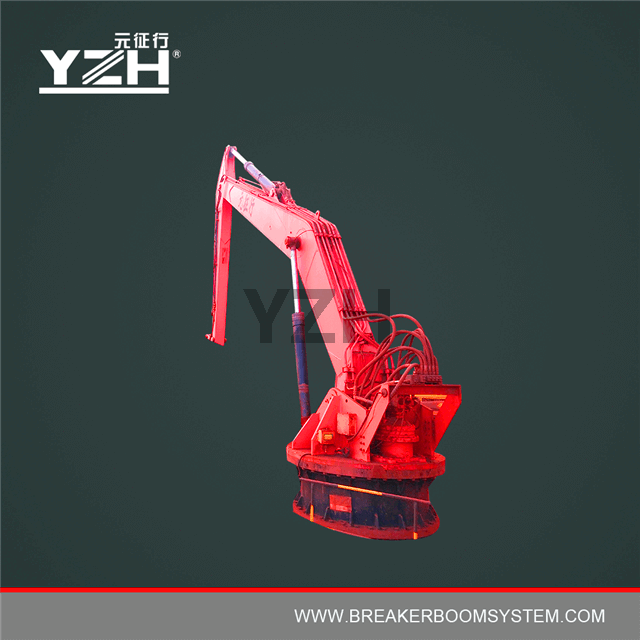

360° Revolving Fixed Round Pedestal Hydraulic Rock Breaker Boom System
XL Series1 | Unit | YZH-XL940R | YZH-XL1020R | YZH-XL1200R | YZH-XL1400R |
Weight | kg | 11100 | 11500 | 12500 | 13500 |
Maximum Reach | m | 12.7 | 13.4 | 14.6 | 17.0 |
| Nominal Horizontal Reach (H) | m | 9.8 | 10.5 | 12.2 | 14.1 |
| Nominal Vertical Reach (V) | m | 9.0 | 9.8 | 10.4 | 13.0 |
| Swing° | ° | 360 | 360 | 360 | 360 |
| Base Diameter | m | 1.40 | 1.40 | 1.40 | 1.40 |
Recommended Hammer Types (Chisel Size ) | mm | 140,155,175 | 140,155,175 | 140,155,175 | 140,155,175 |
Recommend Power Packs | set | H55,H55HD, D75 | H55,H55HD, D75 | H55,H55HD, D75 | H55,H55HD, D75 |
XL Series 2 | Unit | YZH-XL940 | YZH-XL1020 | YZH-XL1200 | YZH-XL1400 |
Weight | kg | 15100 | 15500 | 16500 | 17500 |
Maximum Reach | m | 12.7 | 13.4 | 14.6 | 17.0 |
| Nominal Horizontal Reach (H) | m | 9.8 | 10.5 | 12.2 | 14.1 |
| Nominal Vertical Reach (V) | m | 9.2 | 10.0 | 10.6 | 13.2 |
| Swing° | ° | 170 | 170 | 170 | 170 |
| Base Diameter | m | 2.29 | 2.29 | 2.29 | 2.29 |
Recommended Hammer Types (Chisel Size ) | mm | 140,155,175 | 140,155,175 | 140,155,175 | 140,155,175 |
Recommend Power Packs
| set | H55,H55HD, D75 | H55,H55HD, D75 | H55,H55HD, D75 | H55,H55HD, D75
|
Features:
•Round pedestal
•Heavy-duty design
•Proven design
•Long reach
•360° swing option
•Suitable hammers for XL-booms are large series hammers up to 175

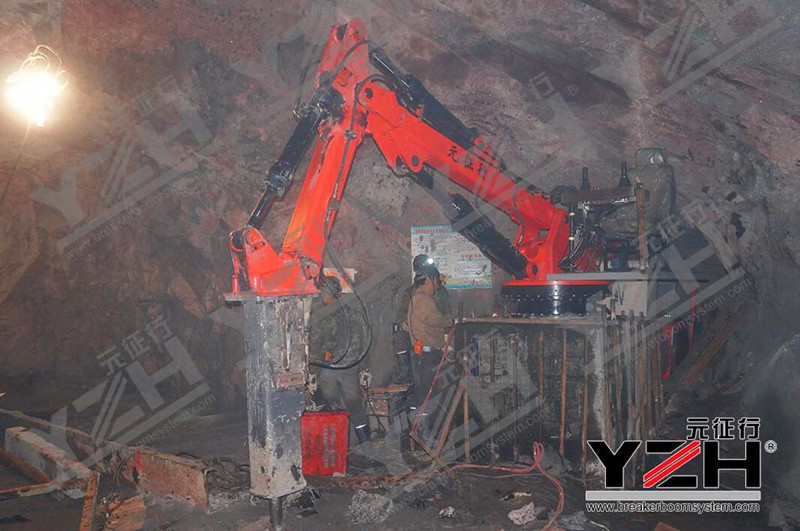

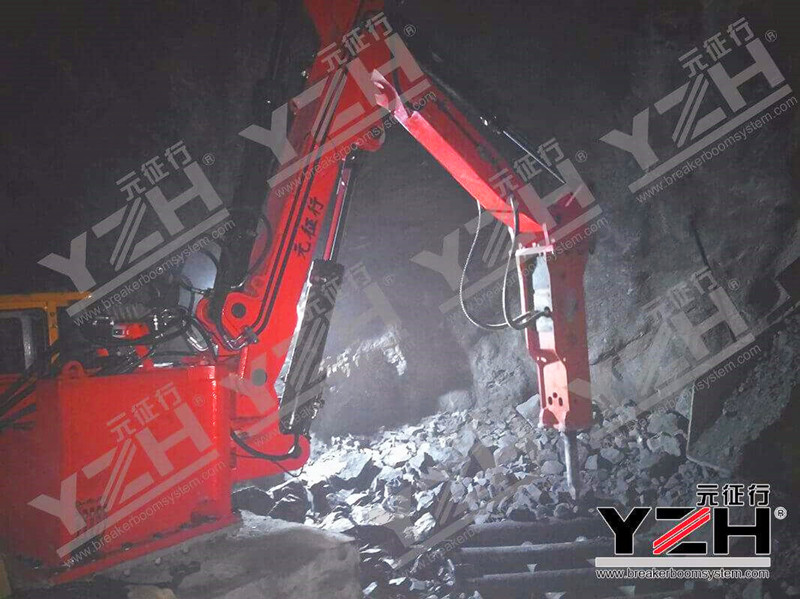

This is a stationary mounted boom system with a slewing articulated boom used to position a hydraulic hammer to breake oversize boulders on a feeder, crusher or grizzly. The boom system is based on pedestal fixed either to concrete or steel foundation.
